Flat angle BRA FW 70130, rising
Item no. 6133282 | EAN 4012196735518
- Product description
-

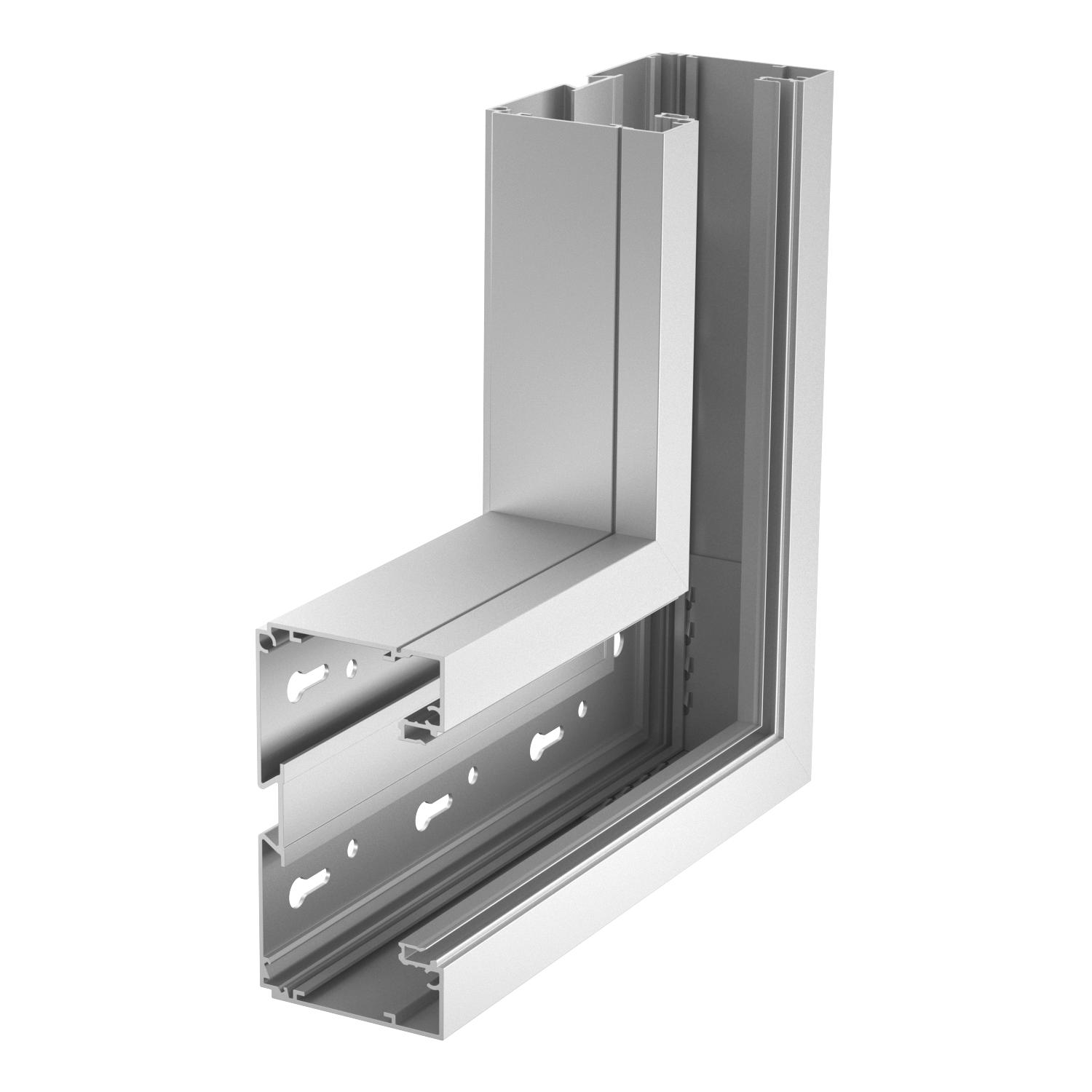

Product descriptionFlat angle, rising, as a fitting for changing the direction of the Signa Style device installation trunking.
-
- Technical data
-
Technical data

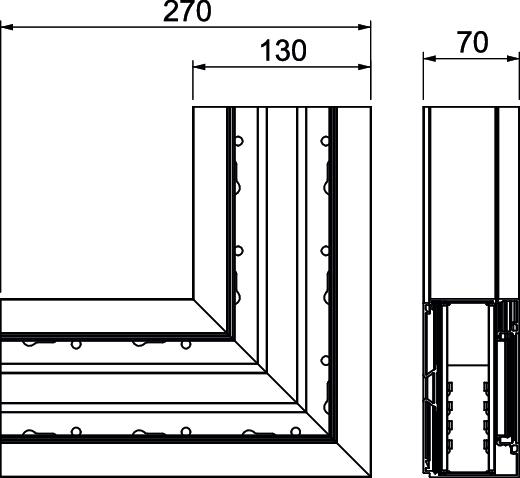

Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no Change of direction Vertical rising CO2 Footprint (GWP) Cradle-to-Gate 20,0809 kg CO2e / 1 Piece Colour aluminium Cover mounting type Internal Cover width 80 mm Dimension 70x130x270 Duct connector no for duct width 130 mm for trunking height 70 mm Halogen-free yes Height 70 mm Length 270 mm Material Aluminium Mounting perforation in base yes Number of covers 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film yes Surface Anodised Symmetrical no Version for Base Width 130 mm - All types
- Downloads
-
Data sheet BRA FWS70130 EL / 6133282 , 0.20MB , pdfEU declaration of conformity BRA FWS70130 EL / 6133282 , 0.10MB , pdfREACH Declaration of conformity BRA FWS70130 EL / 6133282 , 0.12MB , pdfRoHS Declaration of conformity BRA FWS70130 EL / 6133282 , 0.12MB , pdfLabel approval VDE symbol approval Signa Style , 2.04MB , pdfMounting instructions Signa Style device installation trunking , 9.32MB , pdfNo invitation to tender text is available for this product.
