Fixed earthing terminal with double thread
Item no. 5420020 | EAN 4012196505869
- Product description
-
Product description• For connection to earthing systems, conductors and reinforcements

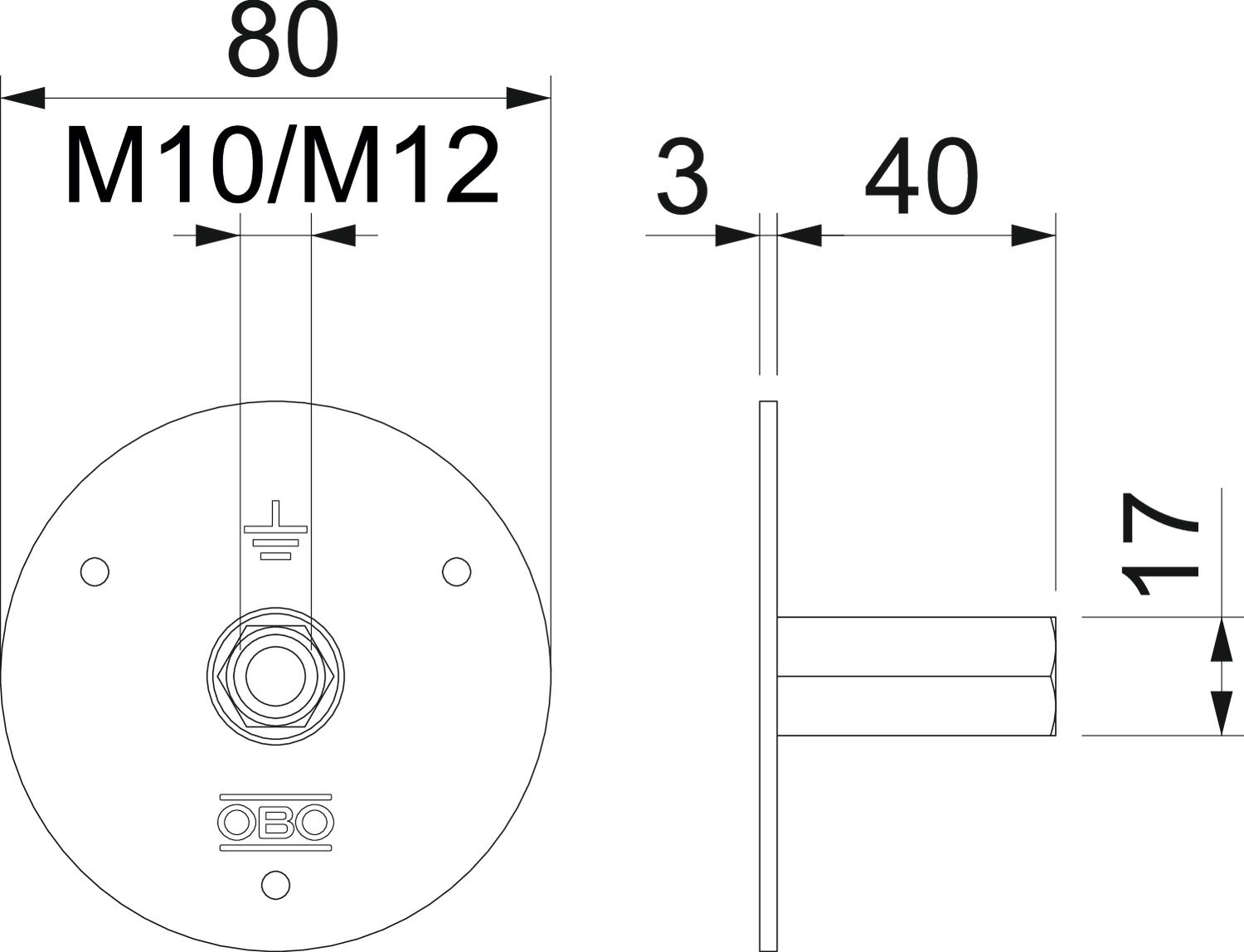

• Contact plate: Ø 80 mm made of stainless steel, rustproof (V4A)
• Double thread M10/M12

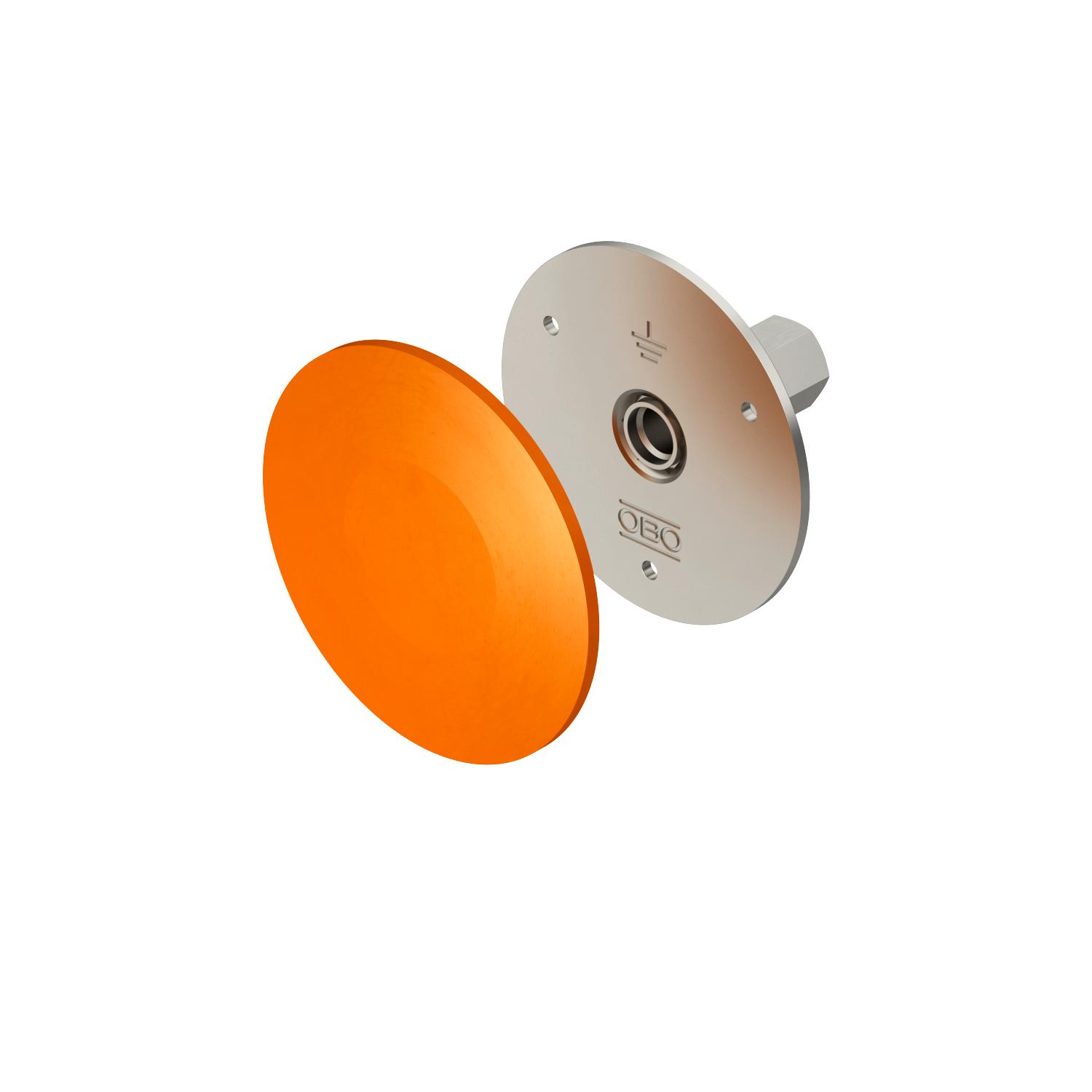

• Incl. plastic cover for simple installation
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 1,0155 kg CO2e / 1 Piece Diameter of the connection plate 80 mm Dimension M10/M12 Lightning current carrying capacity H/100 kA Material Stainless steel Material of the connection strap Stainless steel, rustproof (V4A) Short-circuit current (50 HZ)(1 s;≤300°C) 6,2 kA Thread M10/M12 - All types
- Downloads
-
Data sheet 205 DG V4A / 5420020 , 0.16MB , pdfEU declaration of conformity 205 DG V4A / 5420020 , 0.06MB , pdfREACH Declaration of conformity 205 DG V4A / 5420020 , 0.12MB , pdfRoHS Declaration of conformity 205 DG V4A / 5420020 , 0.12MB , pdfNo invitation to tender text is available for this product.
