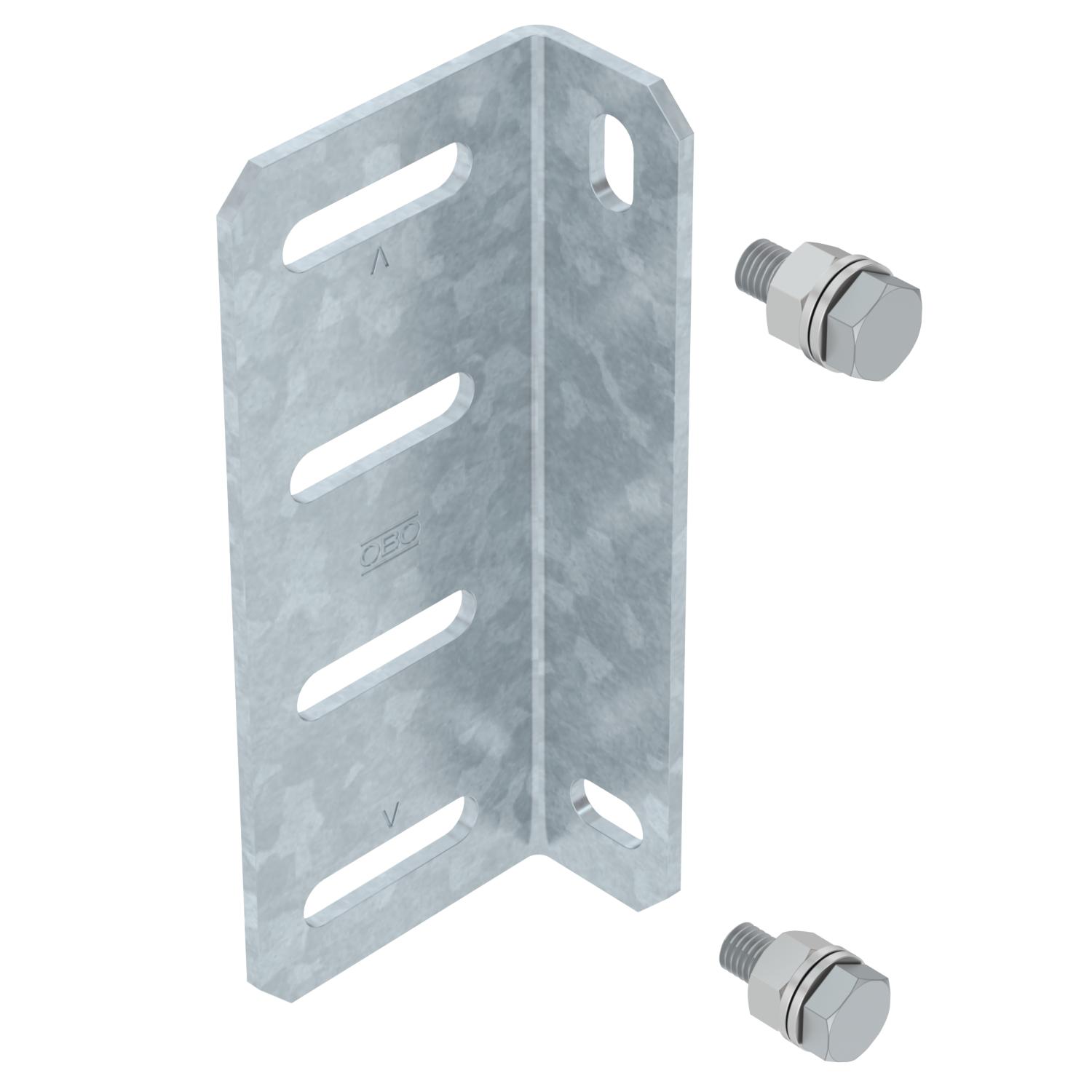

Fastening bracket for US 3/US 5 support
Item no. 6019534 | EAN 4012196653652
- Product description
-
Product descriptionFastening bracket for the creation of individual support structures with U supports.
-
- Technical data
-
Technical data

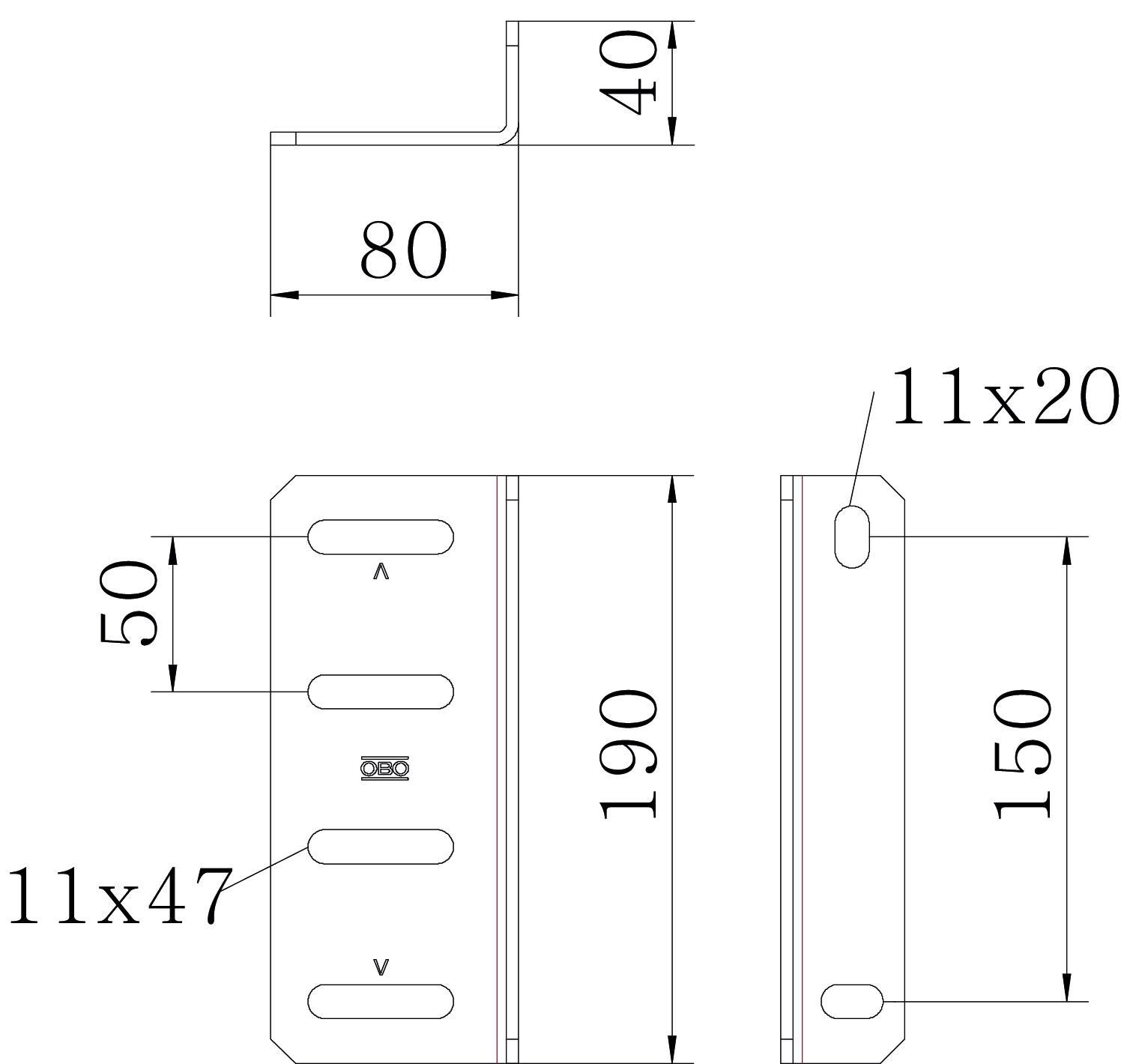

Adjustable yes CO2 Footprint (GWP) Cradle-to-Gate 1,9252 kg CO2e / 1 Piece Colour zinc Dimension 190x80 Height 190 mm Length 80 mm Maintain electrical functions no Material Steel Material thickness 4 mm Suitable for profile shapes U profile Surface Hot-dip galvanised Version for Fastening bracket Width 40 mm With screw accessories yes - All types
- Downloads
-
Data sheet BW US 3/5 FT / 6019534 , 0.18MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity BW US 3/5 FT / 6019534 , 0.11MB , pdfUK Declaration of Conformity BW US 3/5 FT / 6019534 , 0.09MB , pdfREACH Declaration of conformity BW US 3/5 FT / 6019534 , 0.12MB , pdfRoHS Declaration of conformity BW US 3/5 FT / 6019534 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfNo invitation to tender text is available for this product.
