External corner BRA AE 70110
Item no. 6133271 | EAN 4012196735341
- Product description
-

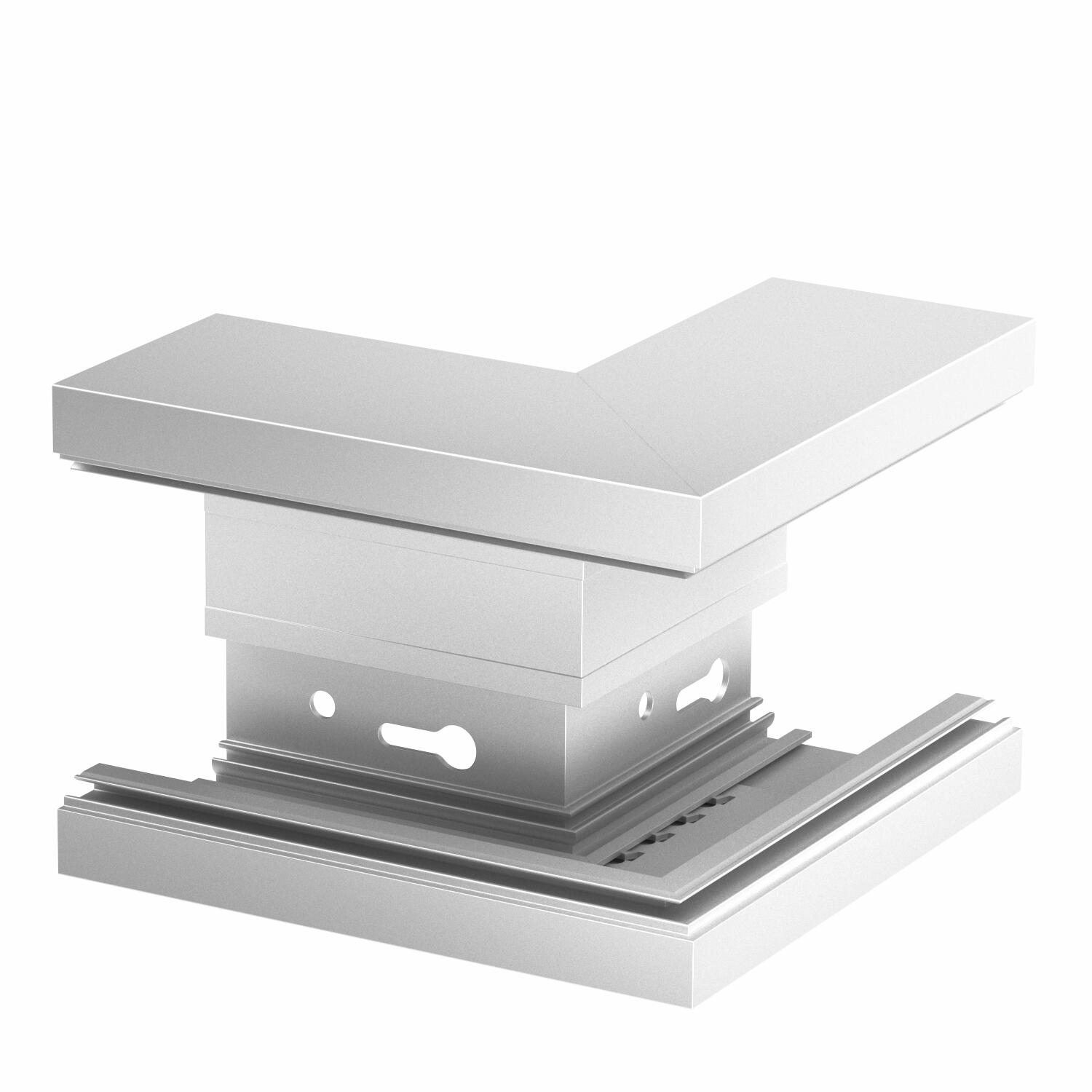

Product descriptionExternal corner as a fitting for changing the direction of the Signa Style device installation trunking.
-
- Technical data
-
Technical data

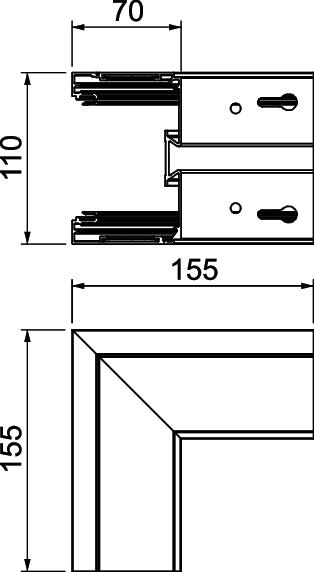

Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 11,6458 kg CO2e / 1 Piece Colour aluminium Cover mounting type Internal Cover width 80 mm Dimension 70x110x155 Duct connector no for duct width 110 mm for trunking height 70 mm Halogen-free yes Height 70 mm Length 155 mm Material Aluminium Mounting perforation in base yes Number of covers 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film yes Surface Anodised Symmetrical no Version for Base Width 110 mm - All types
- Downloads
-
Data sheet BRA AE70110 EL / 6133271 , 0.19MB , pdfEU declaration of conformity BRA AE70110 EL / 6133271 , 0.10MB , pdfREACH Declaration of conformity BRA AE70110 EL / 6133271 , 0.12MB , pdfRoHS Declaration of conformity BRA AE70110 EL / 6133271 , 0.12MB , pdfLabel approval VDE symbol approval Signa Style , 2.04MB , pdfMounting instructions Signa Style device installation trunking , 9.32MB , pdfNo invitation to tender text is available for this product.
