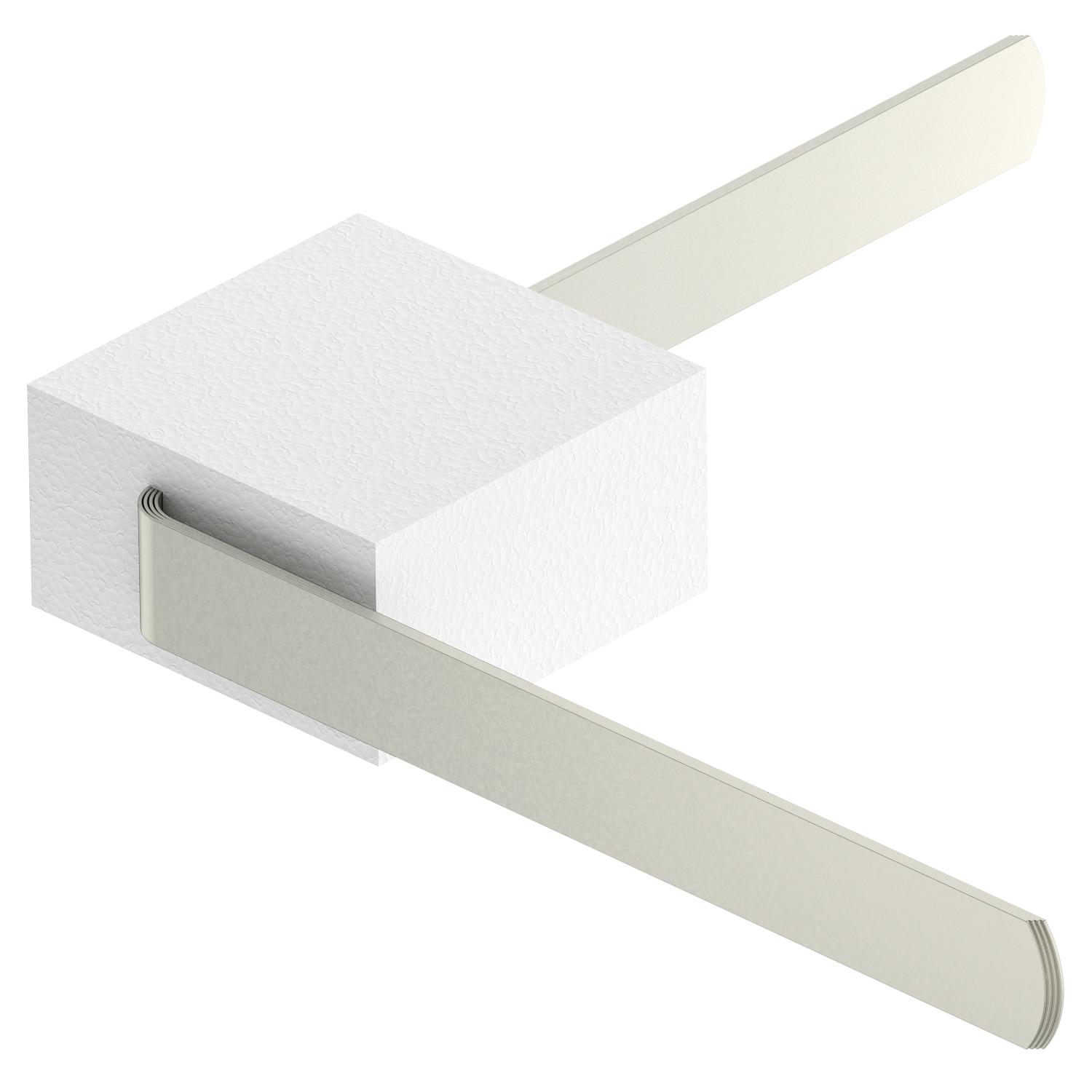

Expansion strip for foundation earth electrode systems
Item no. 5016160 | EAN 4012196561063
- Product description
-
Product description• Expansion strip according to VDE 0185-561-2 (IEC 62561-2)
• With styrofoam block
• To pass the foundation earth electrode through movement joints
- Technical data
-
Technical data

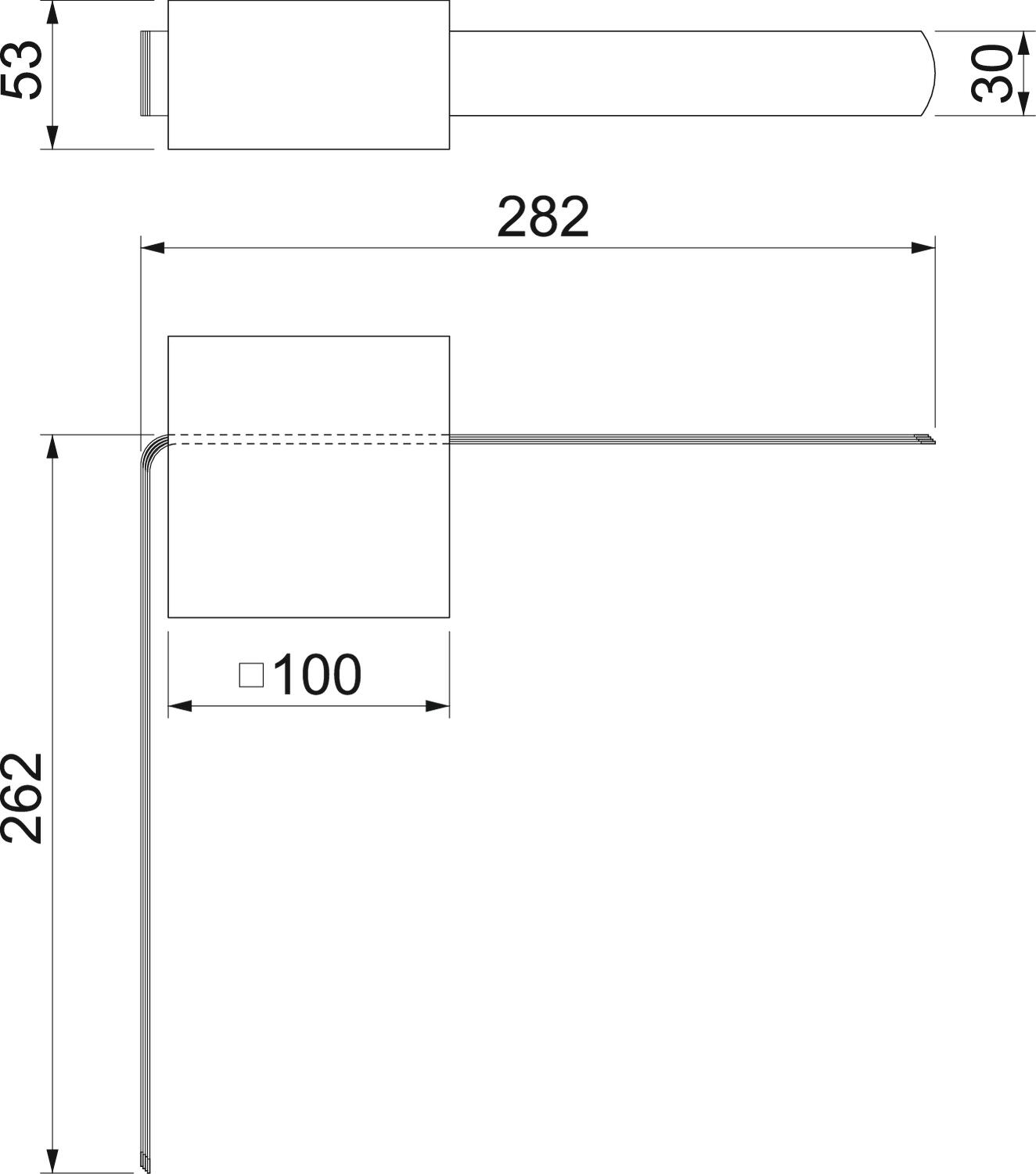

CO2 Footprint (GWP) Cradle-to-Gate 1,9674 kg CO2e / 1 Piece Connection Flat conductor Cross-section 105 mm² Dimension 30x3,5mm Fit 30x3,5 mm Height 50 mm Length 300 mm Material Stainless steel Width 300 mm - All types
- Downloads
-
Data sheet 1807 DB / 5016160 , 0.20MB , pdfEU declaration of conformity 1807 DB / 5016160 , 0.06MB , pdfREACH Declaration of conformity 1807 DB / 5016160 , 0.12MB , pdfRoHS Declaration of conformity 1807 DB / 5016160 , 0.12MB , pdfNo invitation to tender text is available for this product.
