Expansion piece, metric thread

Item no. 2088283 | EAN 4012195372189

Item no. / Types

Thread dimension, metric, external

Thread dimension, metric, internal

Product description

Product description

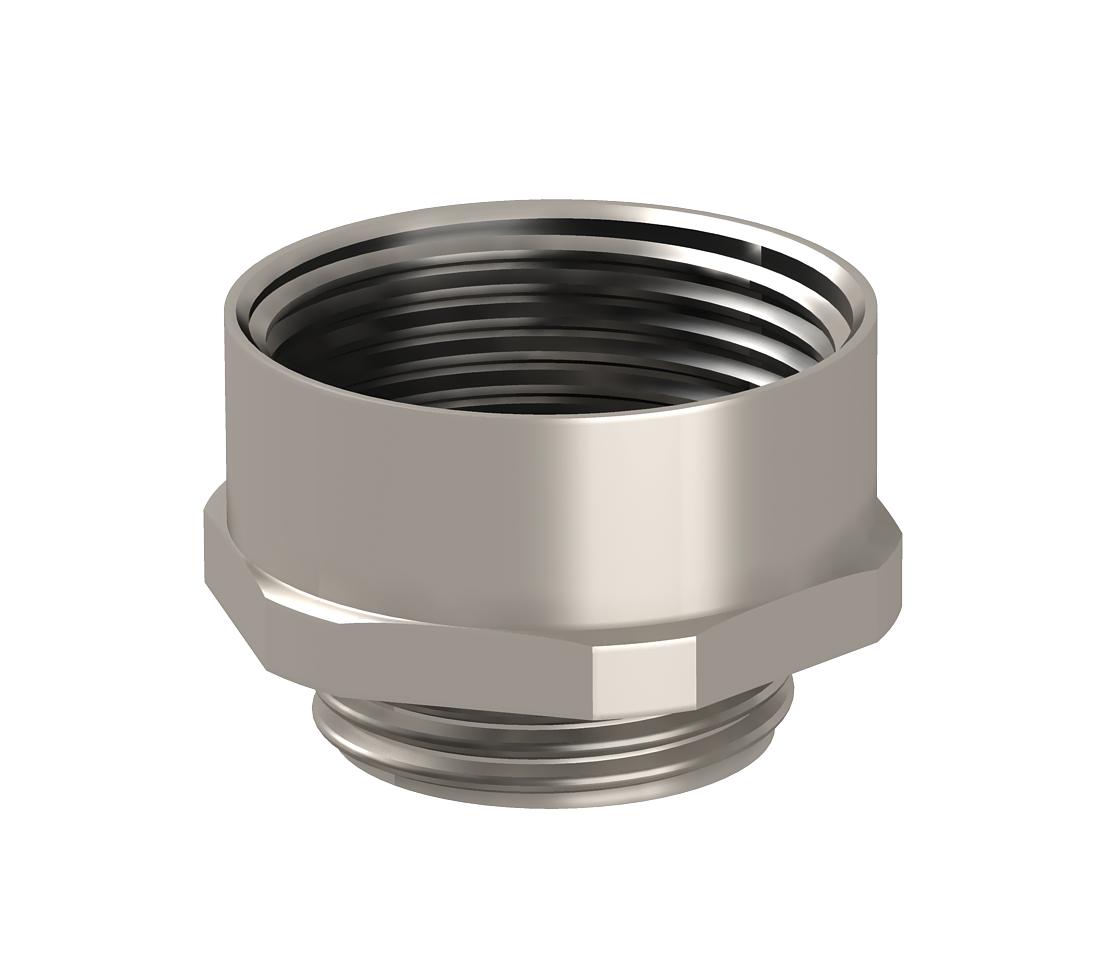

Extension made from brass with metric inner and outer thread to mount metal or plastic cable glands on housings. IP54 protection rating without additional connection sleeve. Protection rating of up to IP68 possible with additional connection seal, such as an O-ring or flat sealing ring.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0709 kg CO₂e / 1 Piece

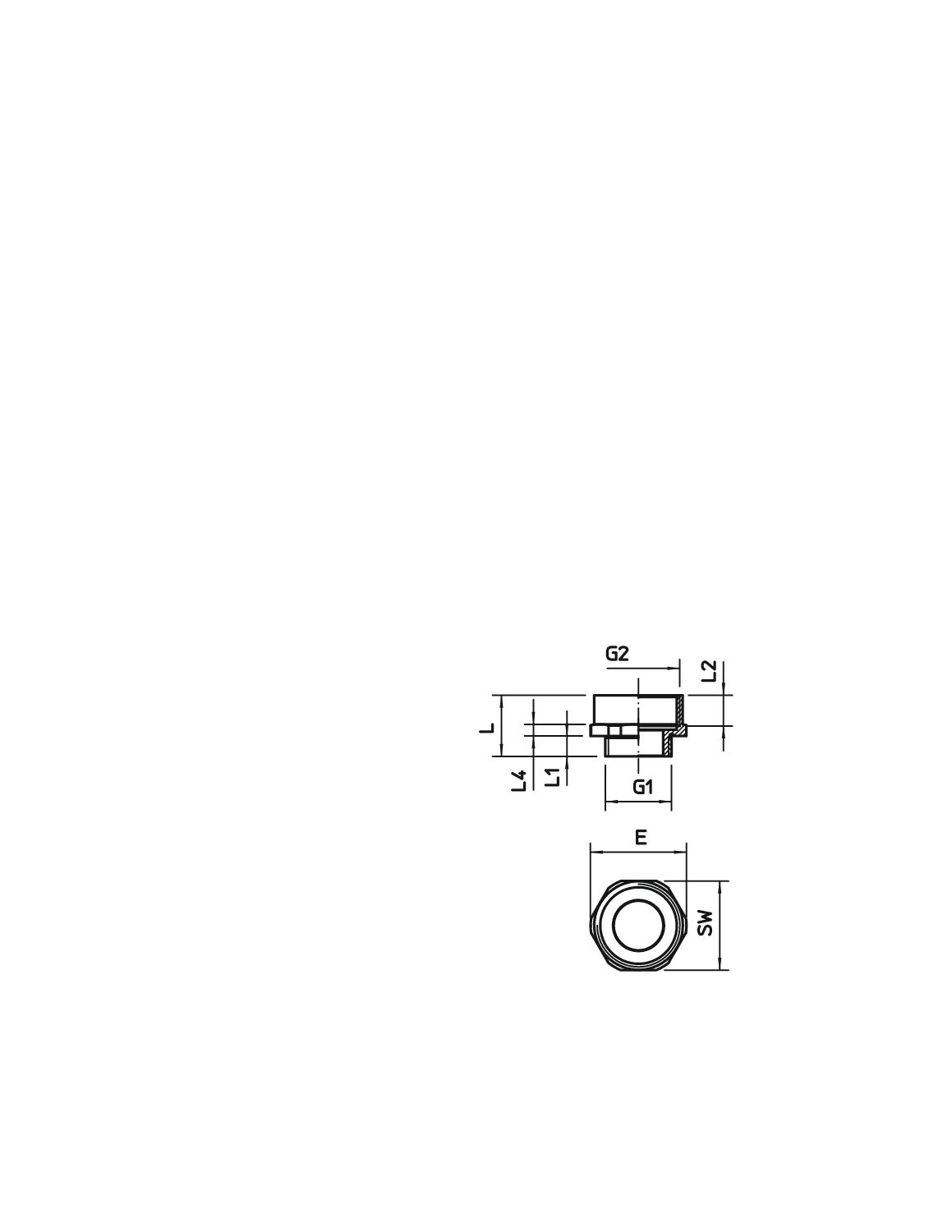

Dimension	M25-M32
Dimension D	20,8 mm
Dimension E	35,8 mm
Dimension L	20,7 mm
Dimension L1	7,4 mm
Dimension L2	8 mm
Dimension L4	4 mm
explosion-proof	no

Material	Brass
Nickel-plated	yes
Surface	Nickel-plated
Thread dimension, metric, external	25
Thread dimension, metric, internal	32
Thread type: External thread	Metric
Thread type: Internal thread	Metric
WAF	34

All types

All types

Types	Thread dimension, metric, external	Thread dimension, metric, internal	Item no.
165 ADA M12-16	12	16	2088280
165 ADA M16-20	16	20	2088281
165 ADA M20-25	20	25	2088282
165 ADA M25-32	25	32	2088283
165 ADA M32-40	32	40	2088284
165 ADA M40-50	40	50	2088285
165 ADA M 50-63	50	63	2088286
