Equipotential busbar with metal base plate
Item no. 5015081 | EAN 4012195378310
- Product description
-
Product descriptionEquipotential busbar with metal foot for equipotential bonding according to DIN VDE 0100-410/-540 and lightning protection equipotential bonding according to DIN VDE 0185-305
• Cover hood from polystyrene, grey
• Sealable/labellable cover
• Base plate made of strip-galvanised steel
• Contact strip made of nickel-plated brass
• Screws and crossbar made of electrogalvanised steel
• Capable of carrying lightning current 100 kA (10/350)
Connection options:
• 7x single or multi-core cables to 25 mm² or fine-core cables to 16 mm²
• 1x round conductor Rd 8–10
• 1x flat strip to FL30 or round conductor Rd 8–10
-
- Technical data
-
Technical data

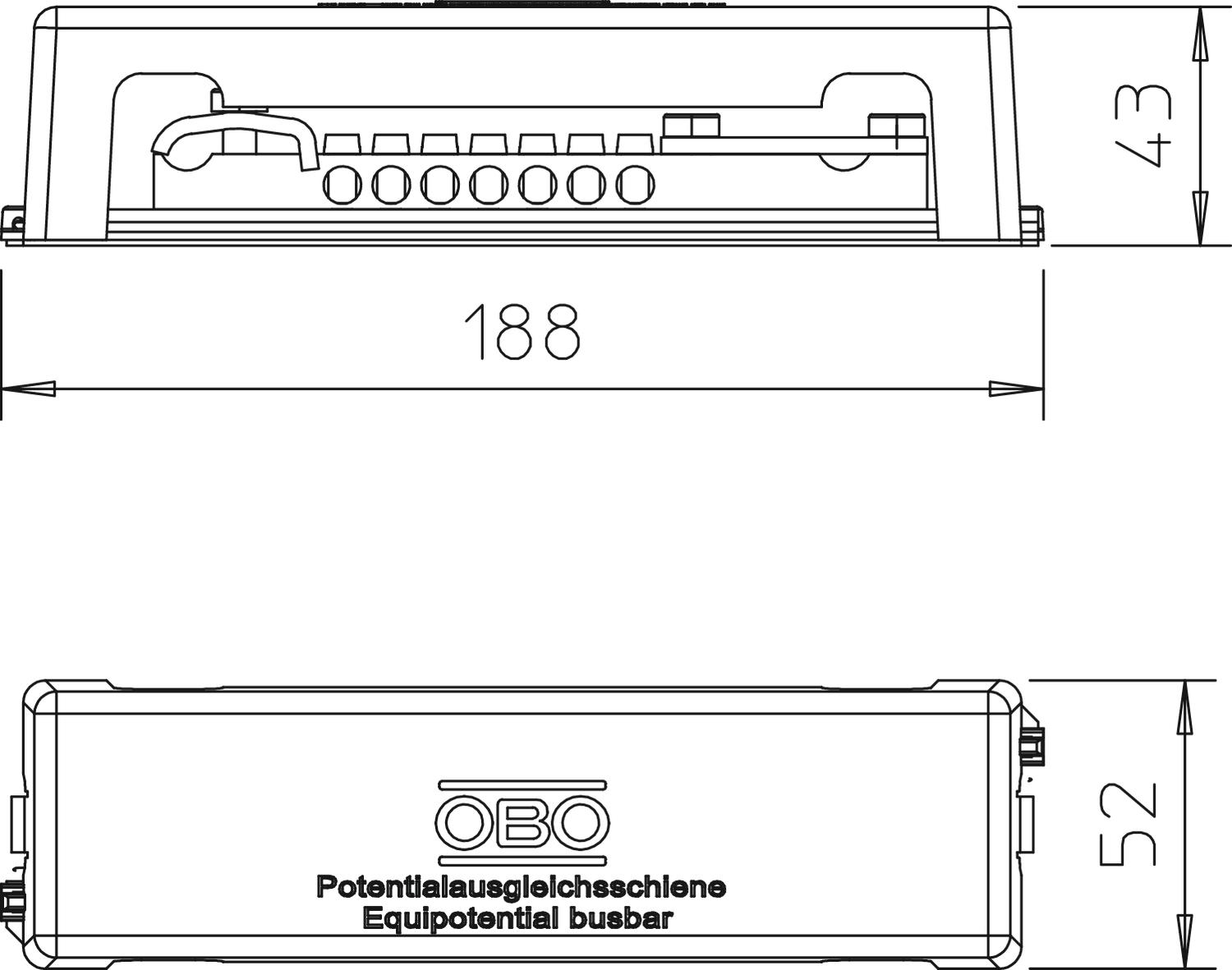

CO2 Footprint (GWP) Cradle-to-Gate 0,8422 kg CO2e / 1 Piece Colour Grey Dimension 188mm Height 43 mm Insulator no Length 188 mm Lightning current carrying capacity H/100 kA Material Brass Material of the contact rail Brass Material of the terminal Steel Quantity of cable connections up to 25 mm², rigid 7 Quantity of flat conductor connections up to 30 mm 1 Quantity of round conductor connections 8-10 mm 1 Quantity of round conductor connections, total 1 Surface of the contact rail Nickel-plated Surface of the terminal Electrogalvanised Type Fixed structure Version for With cover hood Width 52 mm - All types
- Downloads
-
Data sheet 1809 M / 5015081 , 0.23MB , pdfEU declaration of conformity 1809 M / 5015081 , 0.10MB , pdfREACH Declaration of conformity 1809 M / 5015081 , 0.13MB , pdfRoHS Declaration of conformity 1809 M / 5015081 , 0.13MB , pdf
