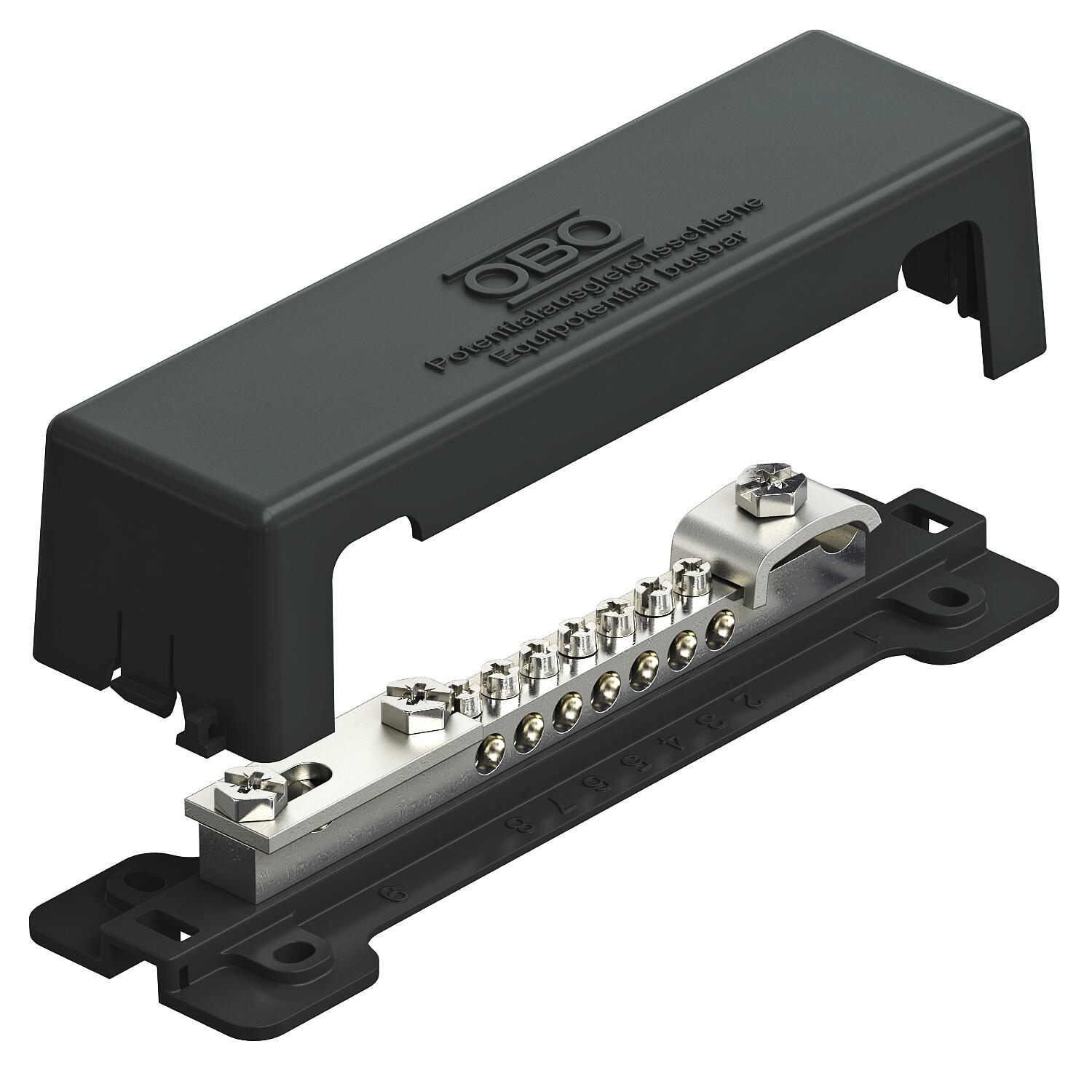

Equipotential busbar for outside installation
Item no. 5015111 | EAN 4012195959427
- Product description
-
Product descriptionEquipotential busbar for equipotential bonding according to DIN VDE 0100-410/-540 and lightning protection equipotential bonding according to DIN VDE 0185-305
• Cover hood and base plate made of polystyrene
• Colour: Black, UV-resistant
• Screws and crossbar made of VA
• Capable of carrying lightning current 50 kA (10/350)
Connection options:
• 7 x single or multi-core cables to 25 mm² or fine-core cables to 16 mm²
• 1 x round conductor Rd 8-10
• 1 x flat strip to FL30 or round conductor Rd 8-10
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,9056 kg CO2e / 1 Piece Colour Black Dimension 50x5mm Height 44,5 mm Insulator yes Length 188 mm Lightning current carrying capacity N/50 kA Material Stainless steel Material of the contact rail Brass Material of the terminal Steel Quantity of cable connections up to 25 mm², rigid 7 Quantity of flat conductor connections up to 30 mm 1 Quantity of round conductor connections 8-10 mm 1 Quantity of round conductor connections, total 1 Surface of the contact rail Nickel-plated Surface of the terminal Electrogalvanised Type Fixed structure Version for With cover hood Width 52 mm - All types
- Downloads
-
Data sheet 1809 A / 5015111 , 0.23MB , pdfEU declaration of conformity 1809 A / 5015111 , 0.10MB , pdfREACH Declaration of conformity 1809 A / 5015111 , 0.13MB , pdfRoHS Declaration of conformity 1809 A / 5015111 , 0.13MB , pdf
