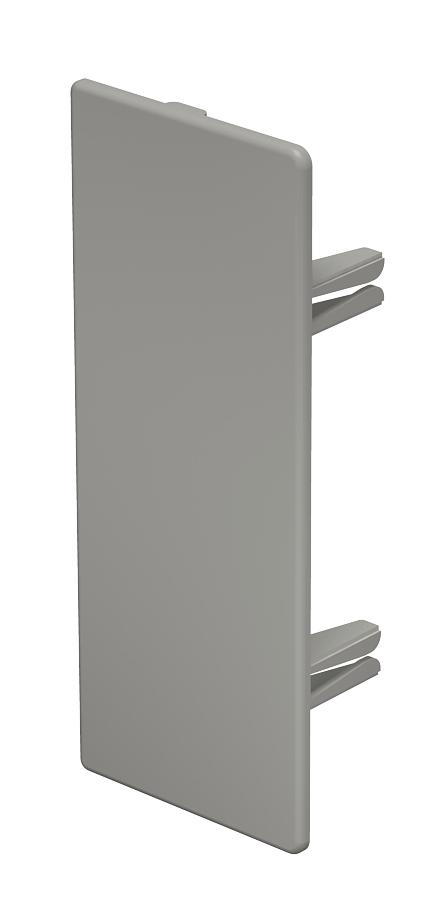

End piece, trunking type WDK 60150

Item no. / Types

Dimension a	150 mm

Dimension b	60 mm

Dimension H	150 mm

Colour

Product description

Product description

End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.

Technical data

Antibacterial treatment	no
CO2 Footprint (GWP) Cradle-to-Gate	0,1439 kg CO2e / 1 Piece
Colour	Stone grey; RAL 7030
Dimension	60x150mm
Dimension a	150 mm
Dimension b	60 mm
Dimension H	150 mm
Fastening type	Lockable
Halogen-free	no
Height	60 mm

Length	27,5 mm
Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Version for	Left/right
Width	150 mm

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.
WDK HE60150GR	150 mm	60 mm	150 mm	Stone grey; RAL 7030	6024823
WDK HE60150CW	150 mm	60 mm	150 mm	Cream; RAL 9001	6162878
WDK HE60150LGR	150 mm	60 mm	150 mm	Light grey; RAL 7035	6183840
WDK HE60150RW	150 mm	60 mm	150 mm	Pure white; RAL 9010	6193323
WDK HE60150VW	150 mm	60 mm	150 mm	Traffic white; RAL 9016	6193462
