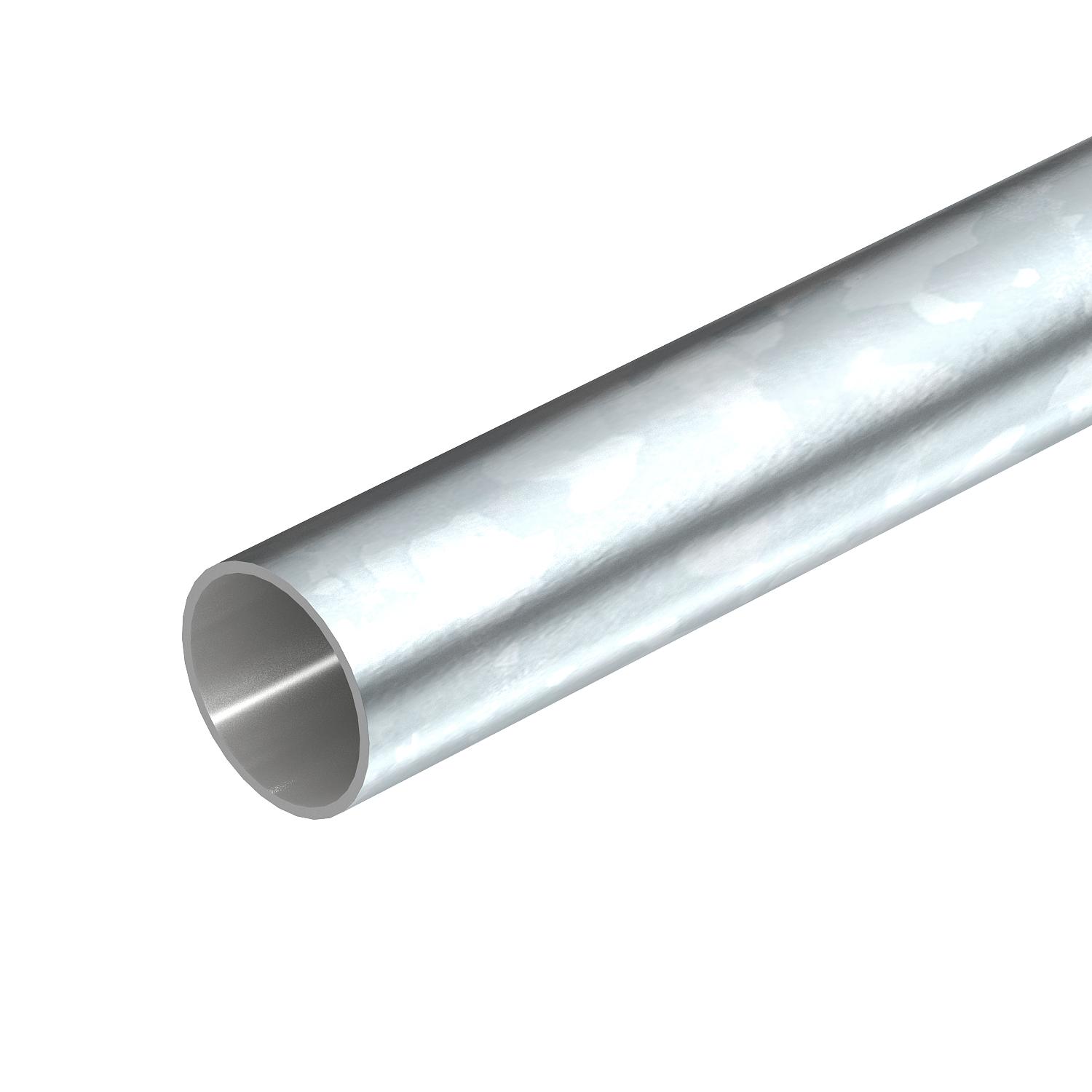

Electrogalvanised steel pipe, without thread
Item no. 2046840 | EAN 4012195924647
- Product description
-
Product descriptionElectrical installation pipe without threaded ends according to EN 61386-1 for mechanical protection of cables. With burr-free inner wall.
-
- Technical data
-
Technical data

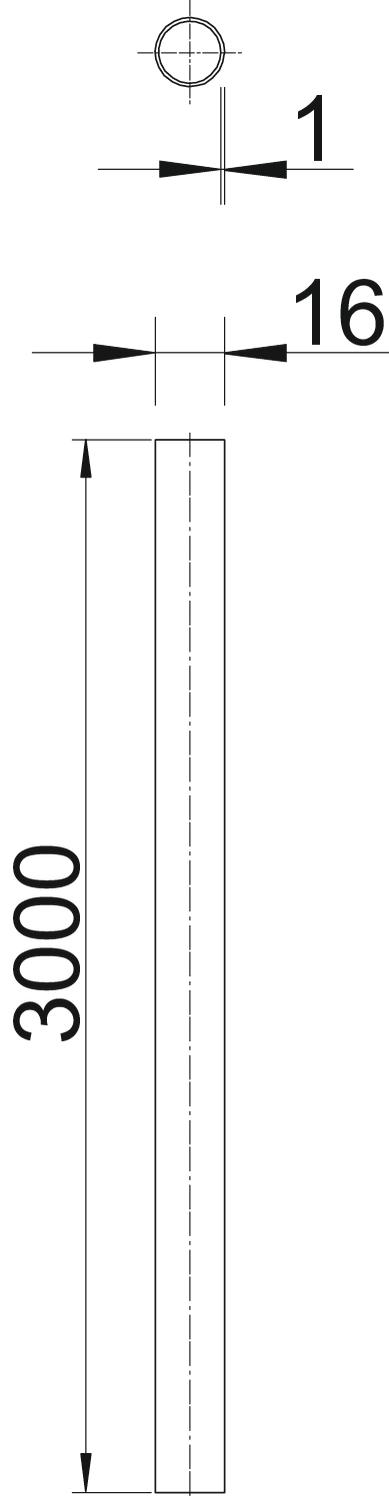

Brushed surface no Cavity wall installation yes Classification code 44571 CO2 Footprint (GWP) Cradle-to-Gate 0,7384 kg CO₂e / 1 Meter Concealed yes Concrete installation yes Connection 1, installation pipe Pipe end Connection 2, installation pipe Pipe end Dimension Ø16, 3000mm Dimension D 16 mm Dimension L 3000 mm Dimension m (mm) M16 Dimension t 1 mm External diameter 16 mm Installation in the earth no Installation on wood yes Installation outdoors no Length 3000 mm Machines and system installation no Material Steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Pipe version Rigid without thread Polished surface no Surface Electrogalvanized Surface-mounted yes Underfloor installation (bitumen, hot asphalt) yes Underfloor installation (screed) yes With sleeve no - All types
-
System accessories
Products Types Item no.

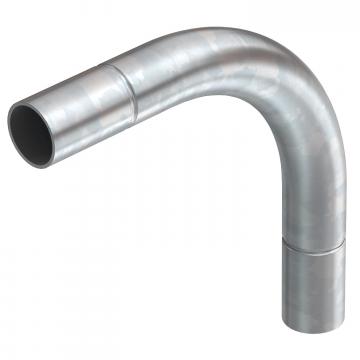

Electrogalvanised steel bend, without thread
SBN16 G 2046808

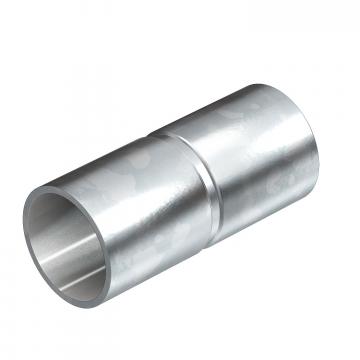

Electrogalvanised steel sleeve, without thread
SV16W G 2046854 Mounting accessories
Products Types Item no.

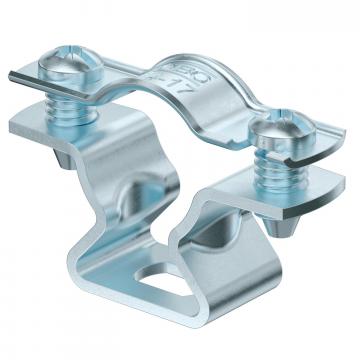

Spacer clip 733 G
ASL 733 17 G 1362762

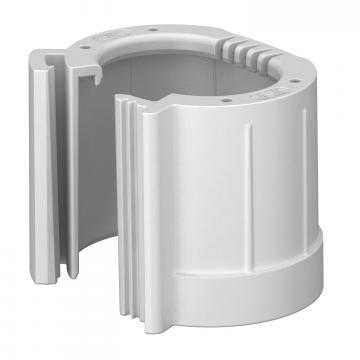

Pipe end cap, splittable, metric, light grey
129 TB M16 2047812 - Downloads
-
Data sheet S16W G / 2046840 , 0.20MB , pdfEU declaration of conformity S16W G / 2046840 , 0.10MB , pdfUK Declaration of Conformity S16W G / 2046840 , 0.10MB , pdfREACH Declaration of conformity S16W G / 2046840 , 0.12MB , pdfRoHS Declaration of conformity S16W G / 2046840 , 0.12MB , pdf
