Earthing rail for UF separation point

Item no. 5106050 | EAN 4012196439614

Item no. / Types	5106050 / 5700 PIP EB

Length	240 mm

Material	Copper

Product description

Product description

• For UF test box 5700 CIP/PIP
• With 5 connection holes
• Diameter of drill hole 11 mm

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	1,1572 kg CO2e / 1 Piece
Dimension	240mm
Fit	M10 mm
Height	6 mm

Length	240 mm
Material	Copper
Width	30 mm

All types

All types

Types	Length	Material	Item no.
5700 PIP EB	240 mm	Copper	5106050

Downloads

Data sheet 5700 PIP EB / 5106050 , 0.15MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Mounting instructions Mounting instructions, 5700; 5700 SP , 2.00MB , pdf

Download

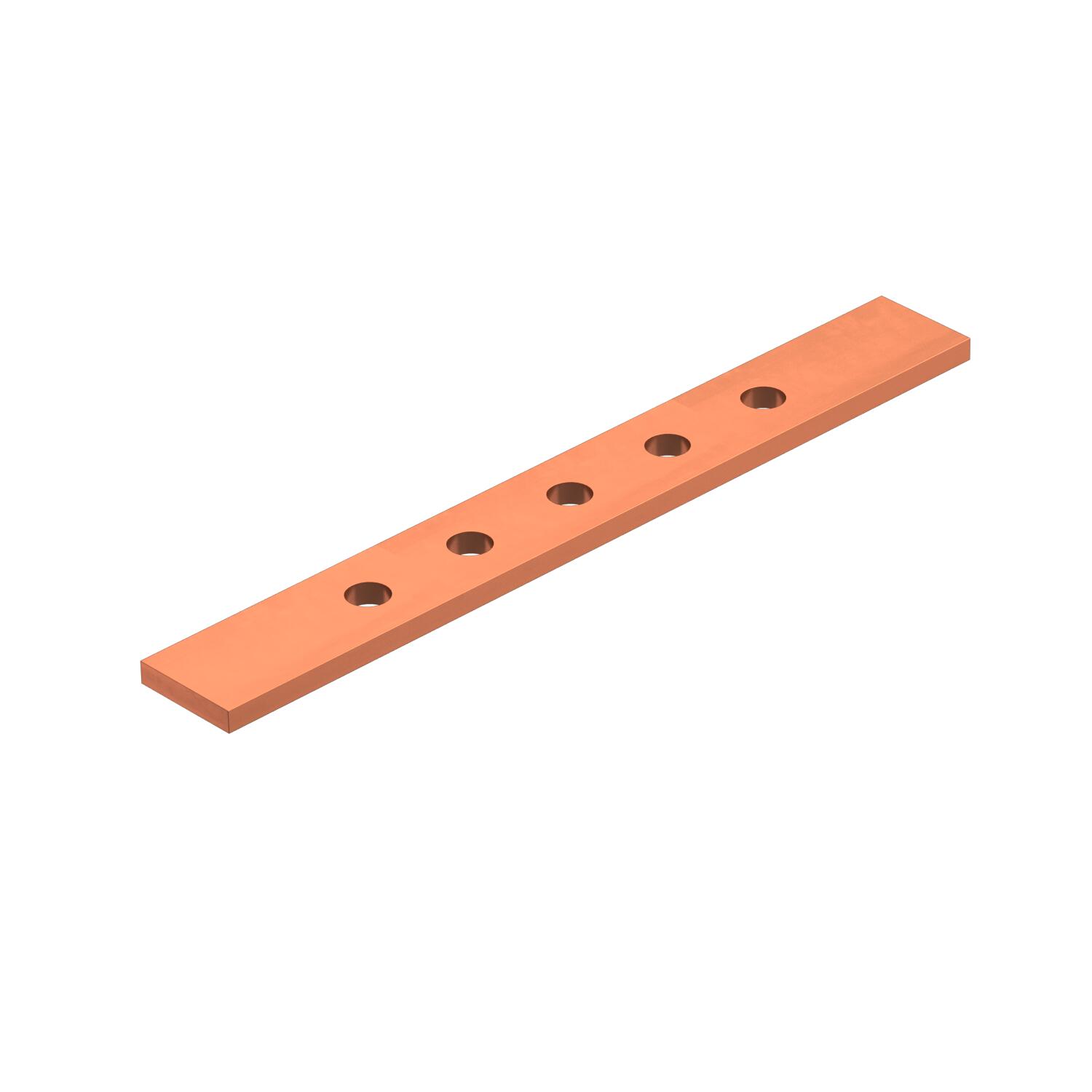

Product graphic 5700 PIP EB / 5106050, 34.11 kB, jpg

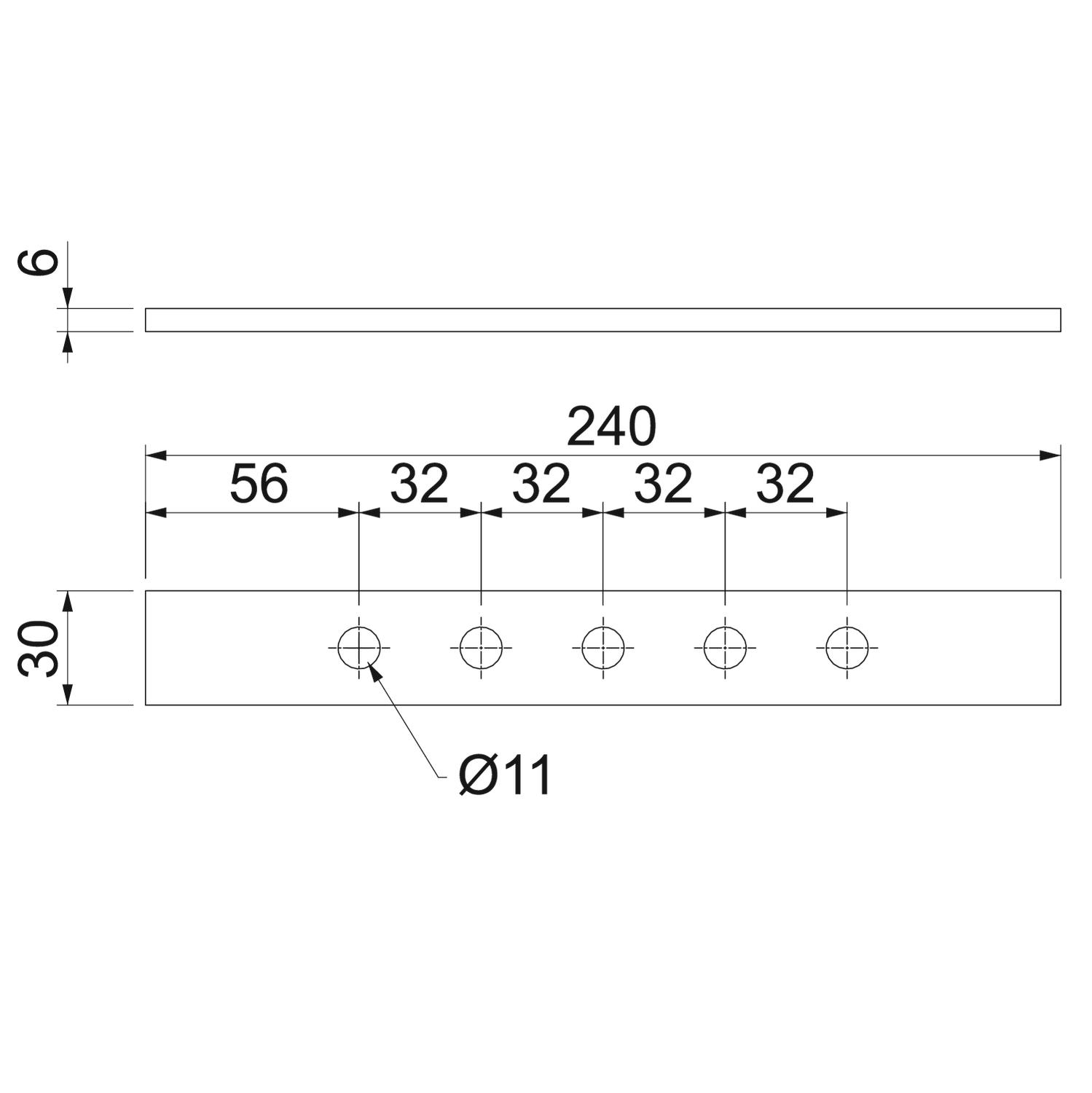

Scale drawing 5700 PIP EB / 5106050, 59.23 kB, jpg

5700 PIP EB / 5106050
