Earth rod OMEX

Item no. 5000025 | EAN 4012195371359

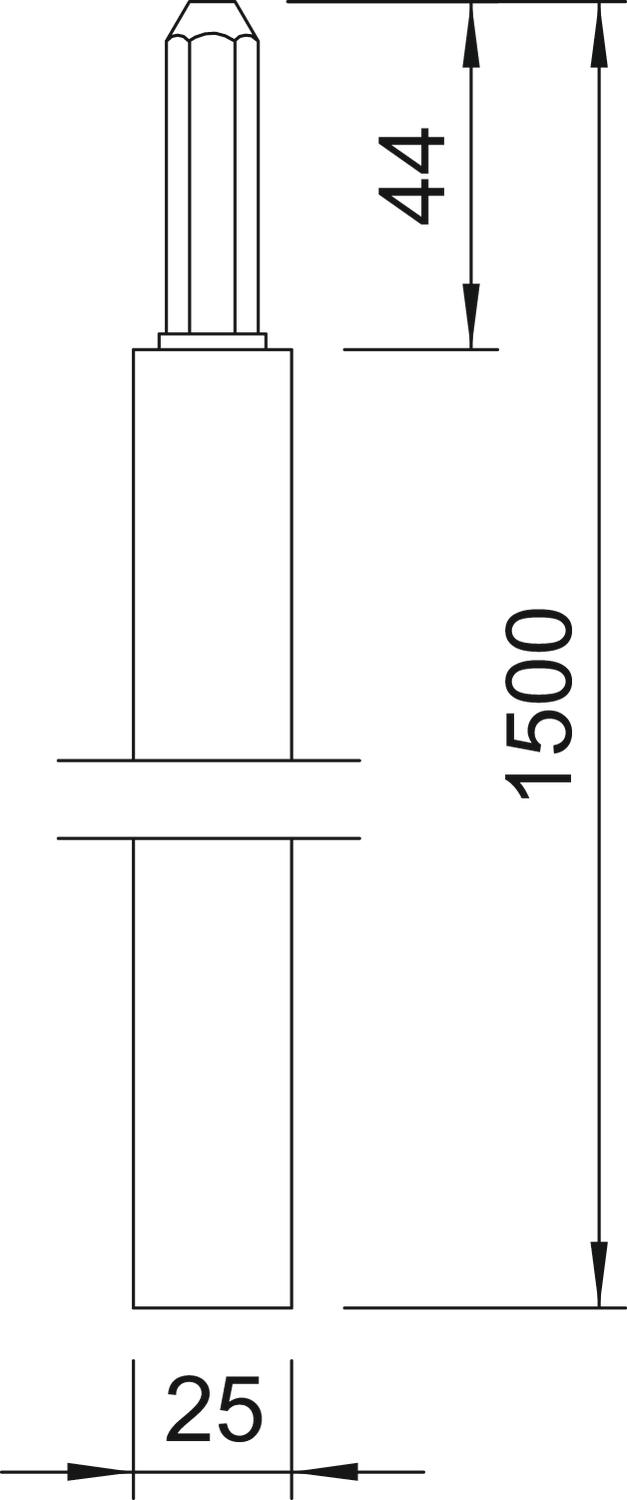

Item no. / Types	5000025 / 219 25 OMEX FT

Length	1500 mm

External diameter	25 mm

Material	Steel

Product description

Product description

• OMEX system
• With peg and bore for linking together
• With hardened hexagonal pins
• Min. zinc coating 60 µm
• Very good contacting properties with soft metal inlay in the bore hole
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	15,9491 kg CO₂e / 1 Piece
Dimension	1,5m
Dimension D	25 mm
External diameter	25 mm
Length	1500 mm

Lightning current carrying capacity	H/100 kA
Material	Steel
Profile type	Round D=25 mm
Short-circuit current (50 HZ)(1 s;≤300°C)	12,3 kA
Surface	Hot-dip galvanised

All types

All types

Types	Length	External diameter	Material	Item no.
219 25 OMEX FT	1500 mm	25 mm	Steel	5000025

Accessories

Mounting accessories

Products	Types	Item no.
Driving spike for OMEX earth rod	1819 25	3041255

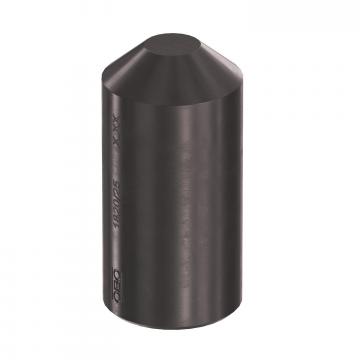

Driving head for ST, BP and OMEX earth rods	1820 25	3042251

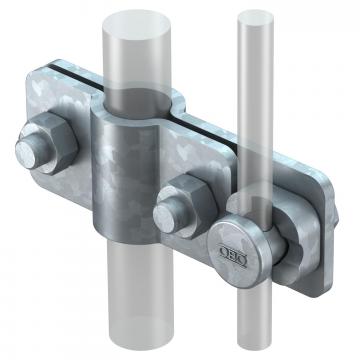

Connection clip for earthing rod to round cables Rd 8−10	2710 25 FT	5001226

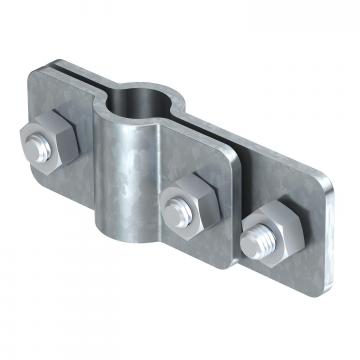

Connection clamp for earth rod on flat conductor FT	2730 25 FT	5001412

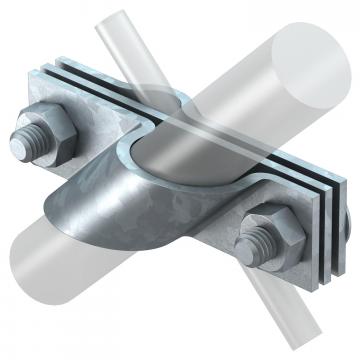

Connection clamp for earth rod, universal FT	2760 25 FT	5001668
