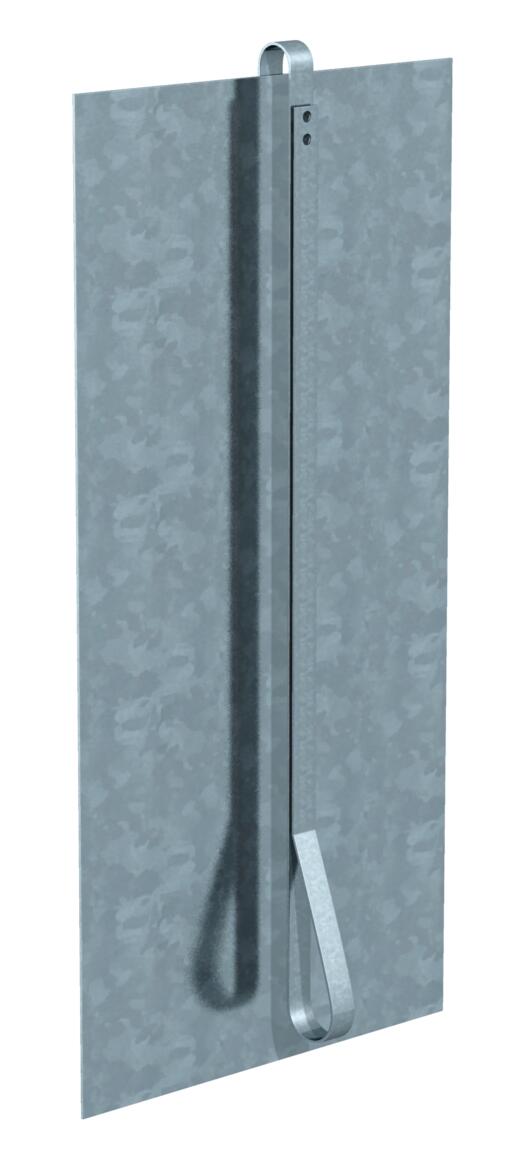

Earth plate
Item no. 5009227 | EAN 4012195376934
- Product description
-

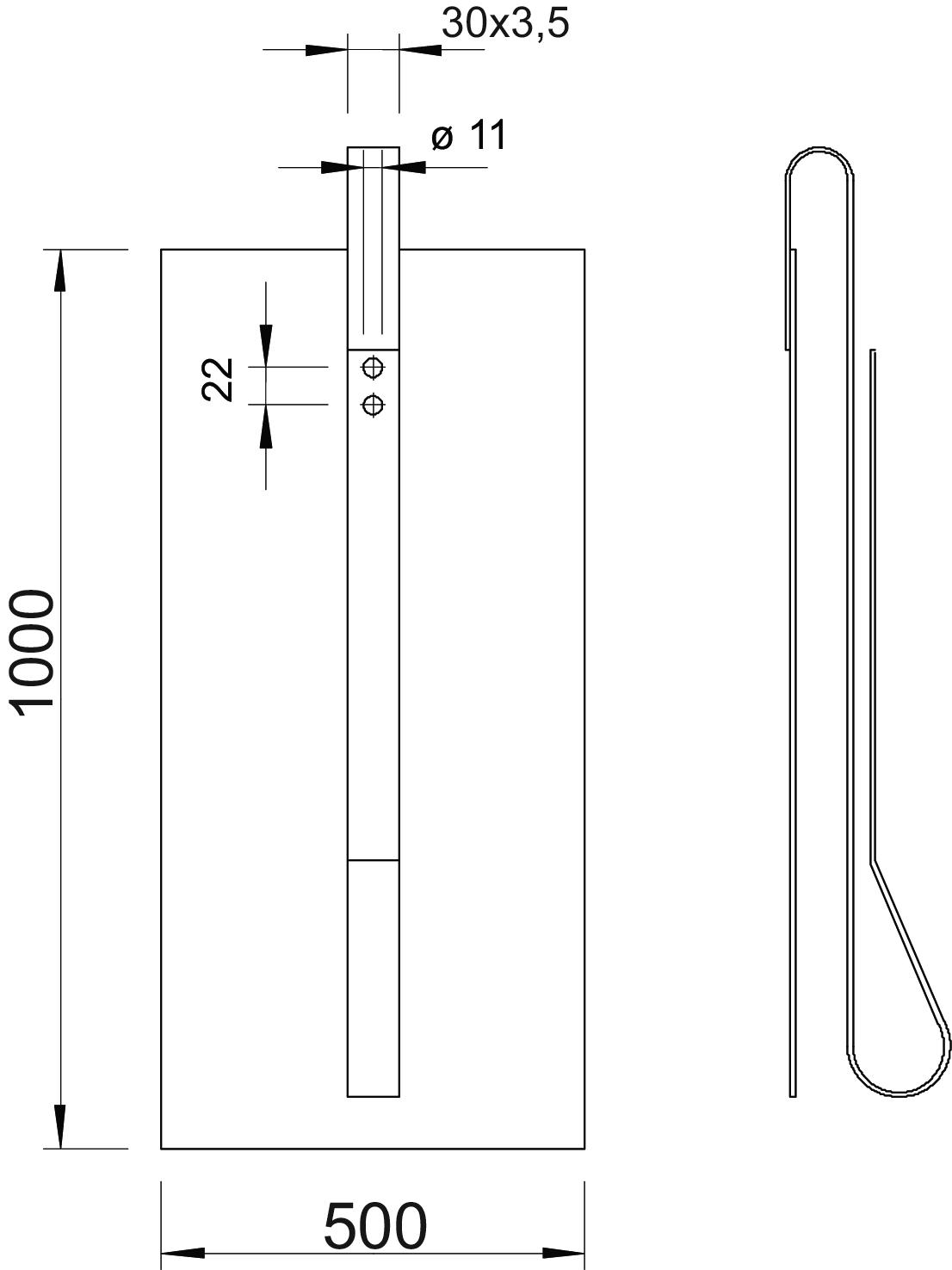

Product description• With 3 m strip steel section FL30 x 3.5
• With 2 attaching holes Ø 11 mm
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 29,5505 kg CO2e / 1 Piece Dimension 500x1000x3 Dimension B 500 mm Dimension L 1000 mm Length 1000 mm Length of connection lug 3 Material Steel Surface Hot-dip galvanised Thickness 3 mm Width 500 mm - All types
- Downloads
-
Data sheet 1816 F-500X1000 / 5009227 , 0.14MB , pdfEU declaration of conformity 1816 F-500X1000 / 5009227 , 0.06MB , pdfREACH Declaration of conformity 1816 F-500X1000 / 5009227 , 0.12MB , pdfRoHS Declaration of conformity 1816 F-500X1000 / 5009227 , 0.13MB , pdf
