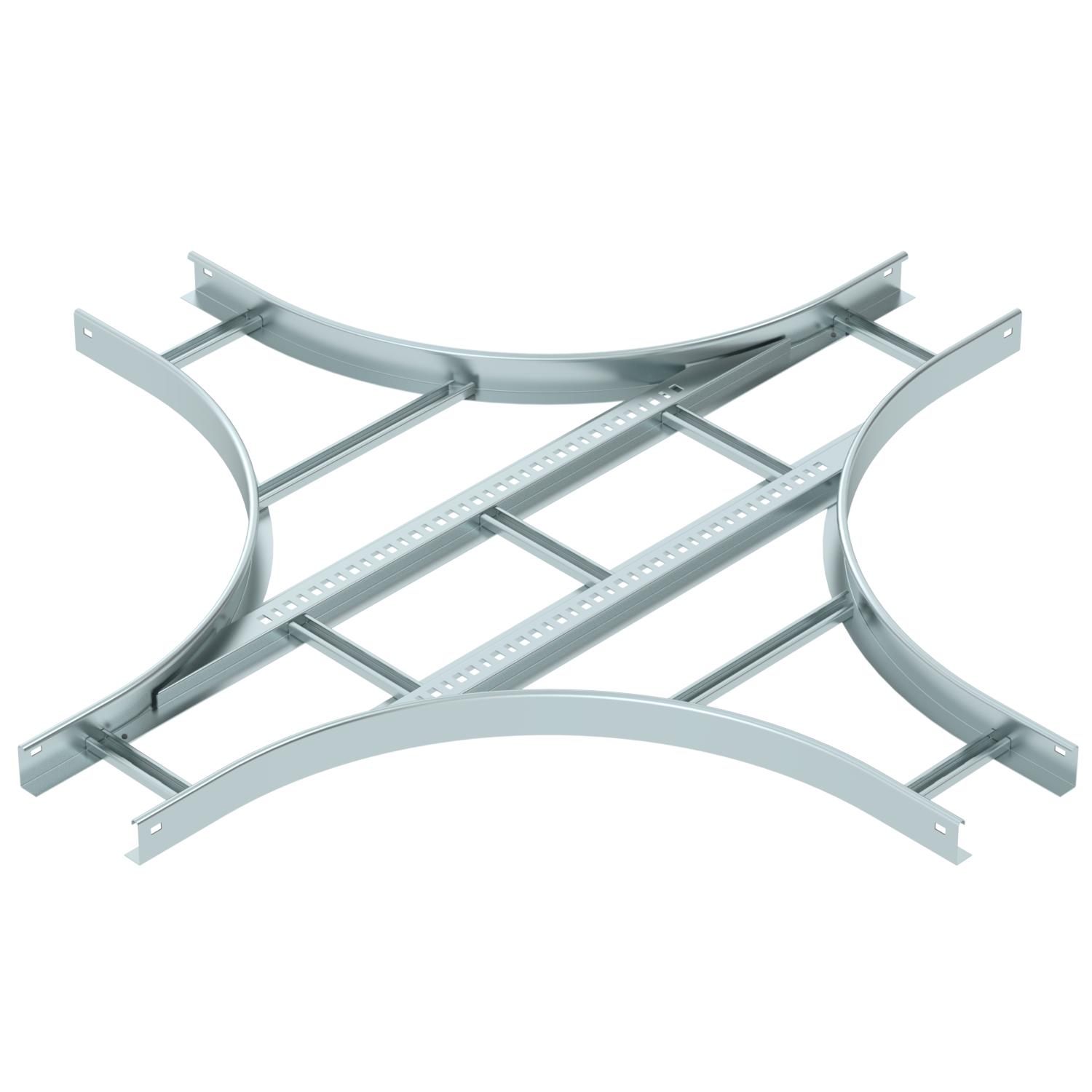

Cross-over 60 FS
Item no. 6214432 | EAN 4012196685295
- Product description
-
Product descriptionCross-over for the creation of horizontal branches, fitting for cable ladders of side height 60 mm. With connector perforation. Can be used in indoor areas. Connector and fastening material must be ordered separately. Fittings must be supported by the support structure.
-
- Technical data
-
Technical data

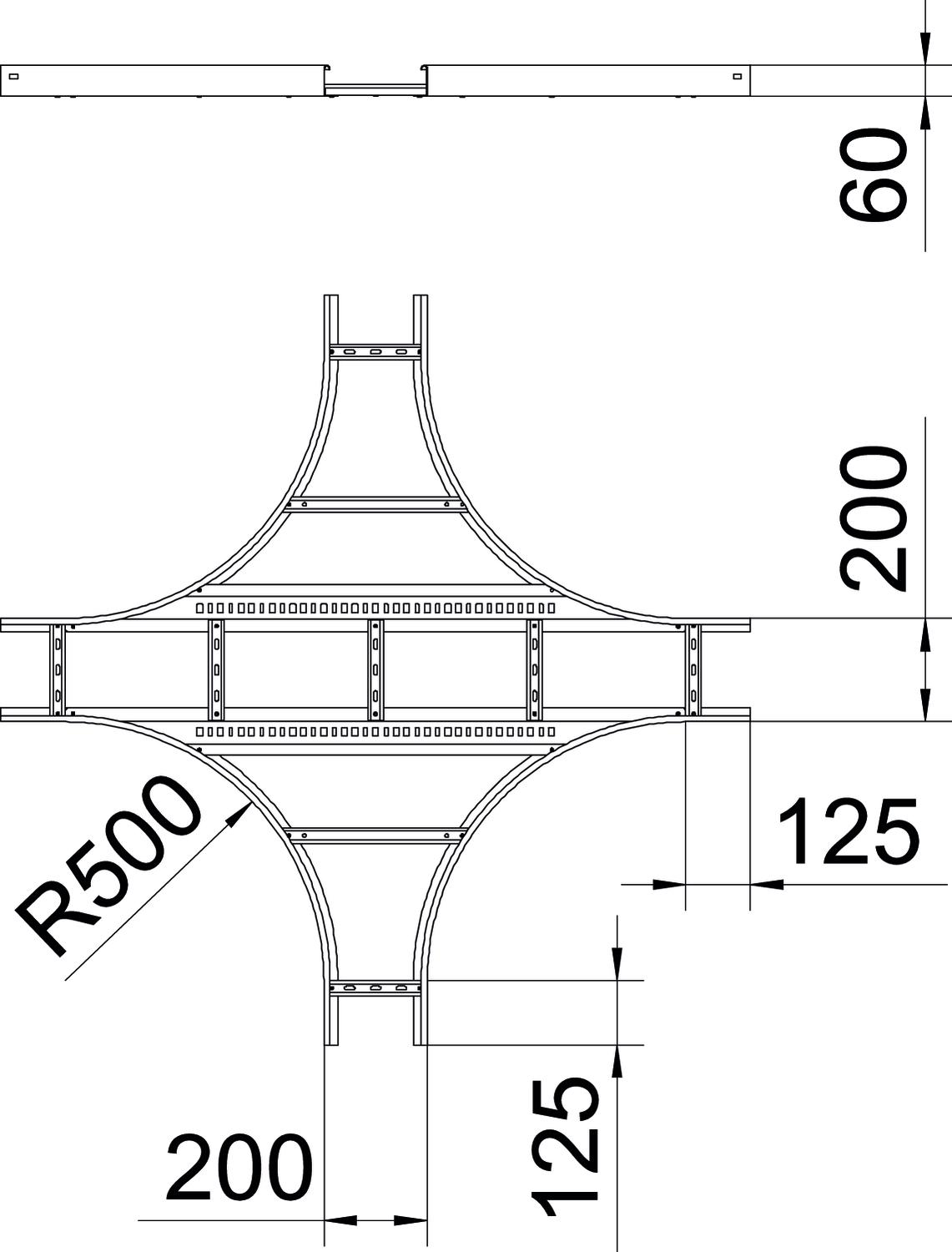

Colour zinc Dimension 60x200 Dimension B 200 mm Dimension R 500 mm Height 60 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile unperforated Wide-span version no Width 200 mm - All types
-
Mounting accessories
Products Types Item no.
Straight connector FS
LVG 60 FS 6208840 - Downloads
-
Data sheet LK 620 R5 FS / 6214432 , 0.22MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity LK 620 R5 FS / 6214432 , 0.10MB , pdfUK Declaration of Conformity LK 620 R5 FS / 6214432 , 0.09MB , pdfREACH Declaration of conformity LK 620 R5 FS / 6214432 , 0.12MB , pdfRoHS Declaration of conformity LK 620 R5 FS / 6214432 , 0.13MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
