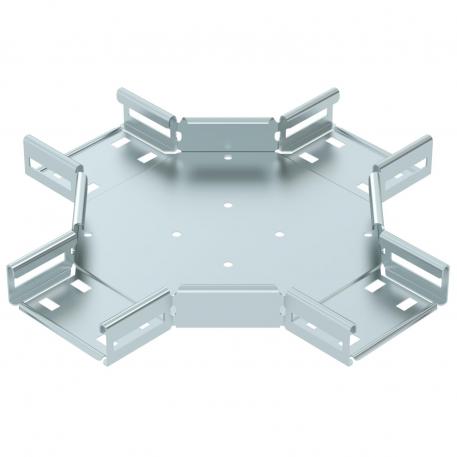

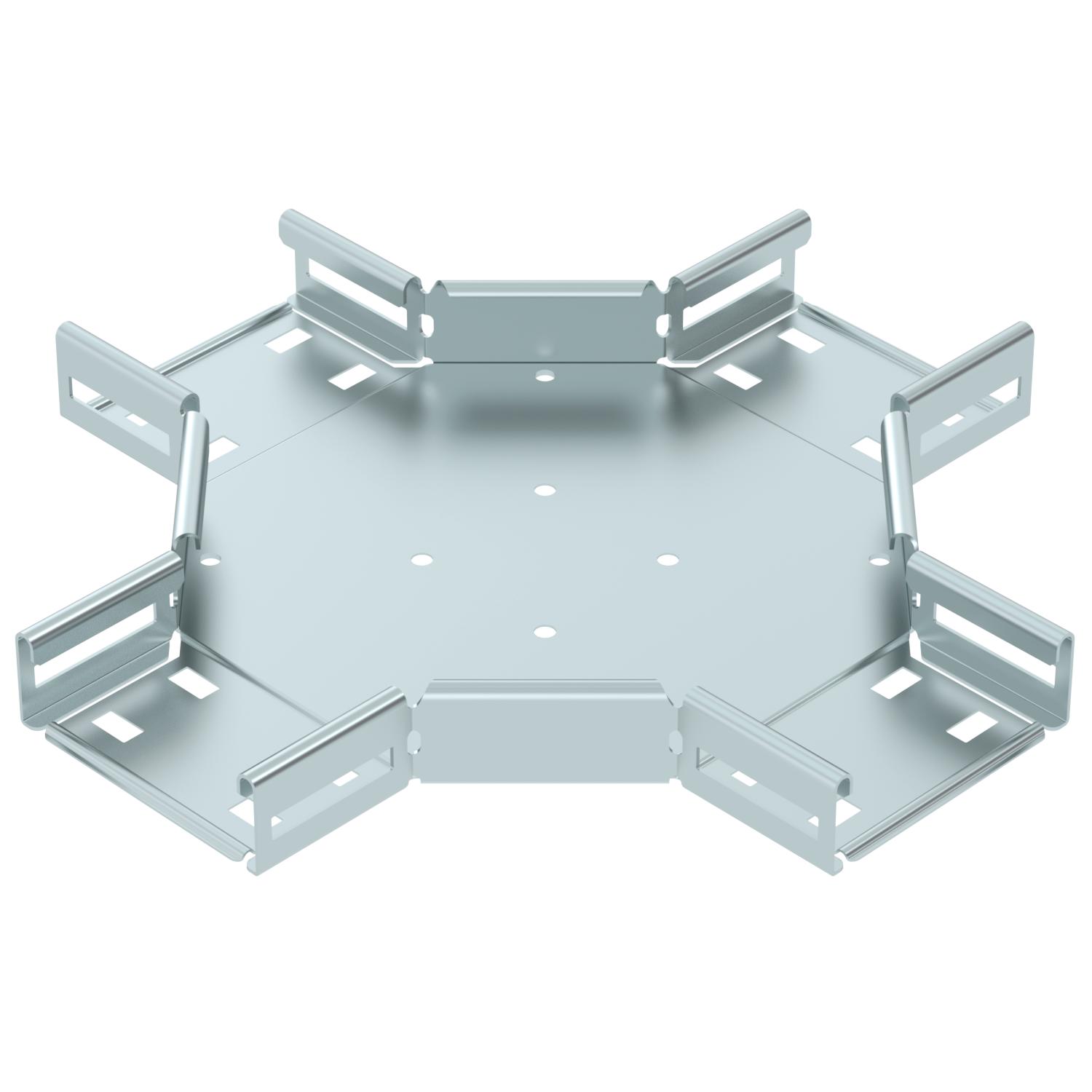

Cross-over 35 FS
Item no. 7027301 | EAN 4012197338367
- Product description
-
Product descriptionCross-over for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 35 mm. Screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
-
- Technical data
-
Technical data

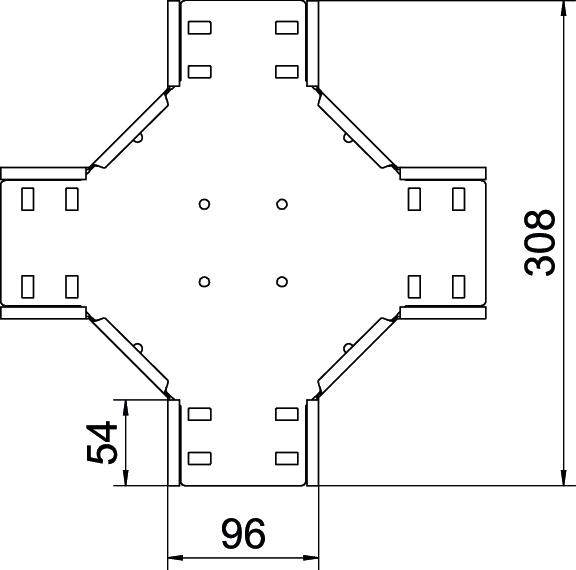

Colour zinc Connector version Integrated connector Dimension 35x100 Dimension B 100 mm Dimension R 50 mm Height 35 mm Maintain electrical functions no Material Steel Material thickness, floor plate 1 mm NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,8 mm Rail thickness 1,25 mm Recommended quantity of bolts 12 St. Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version no Width 100 mm - All types
-
System accessories
Products Types Item no.

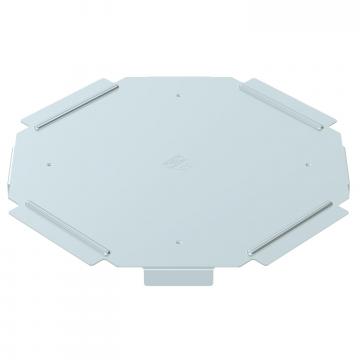

Cover, cross-over FS
RKD 100 FS 7027800 - Downloads
-
