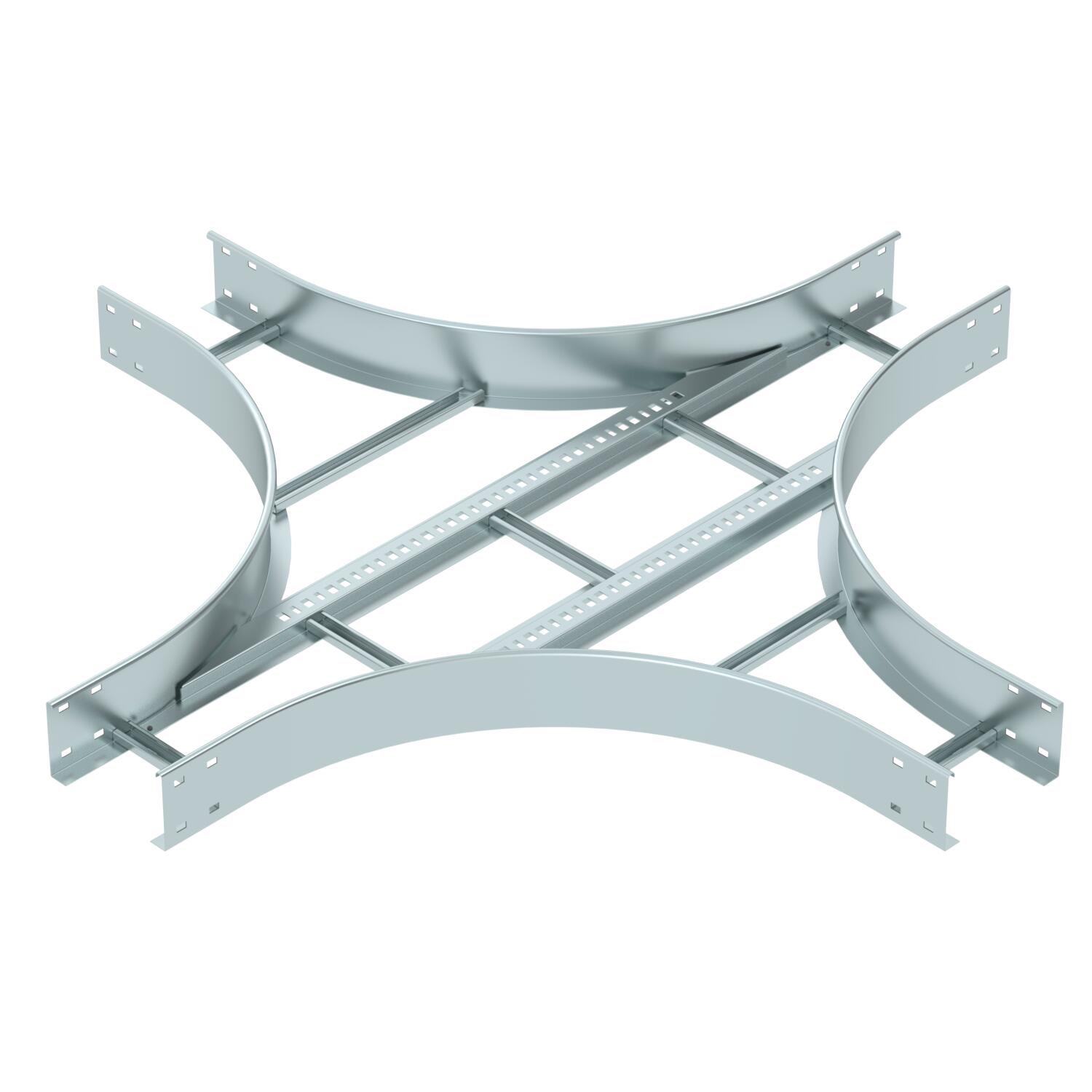

Cross-over 110 FS
Item no. 6219682 | EAN 4012196685493
- Product description
-
Product descriptionCross-over for the creation of horizontal branches, fitting for cable ladders of side height 110 mm. With connector perforation. Can be used in indoor areas. Connector and fastening material must be ordered separately. Fittings must be supported by the support structure.
-
- Technical data
-
Technical data

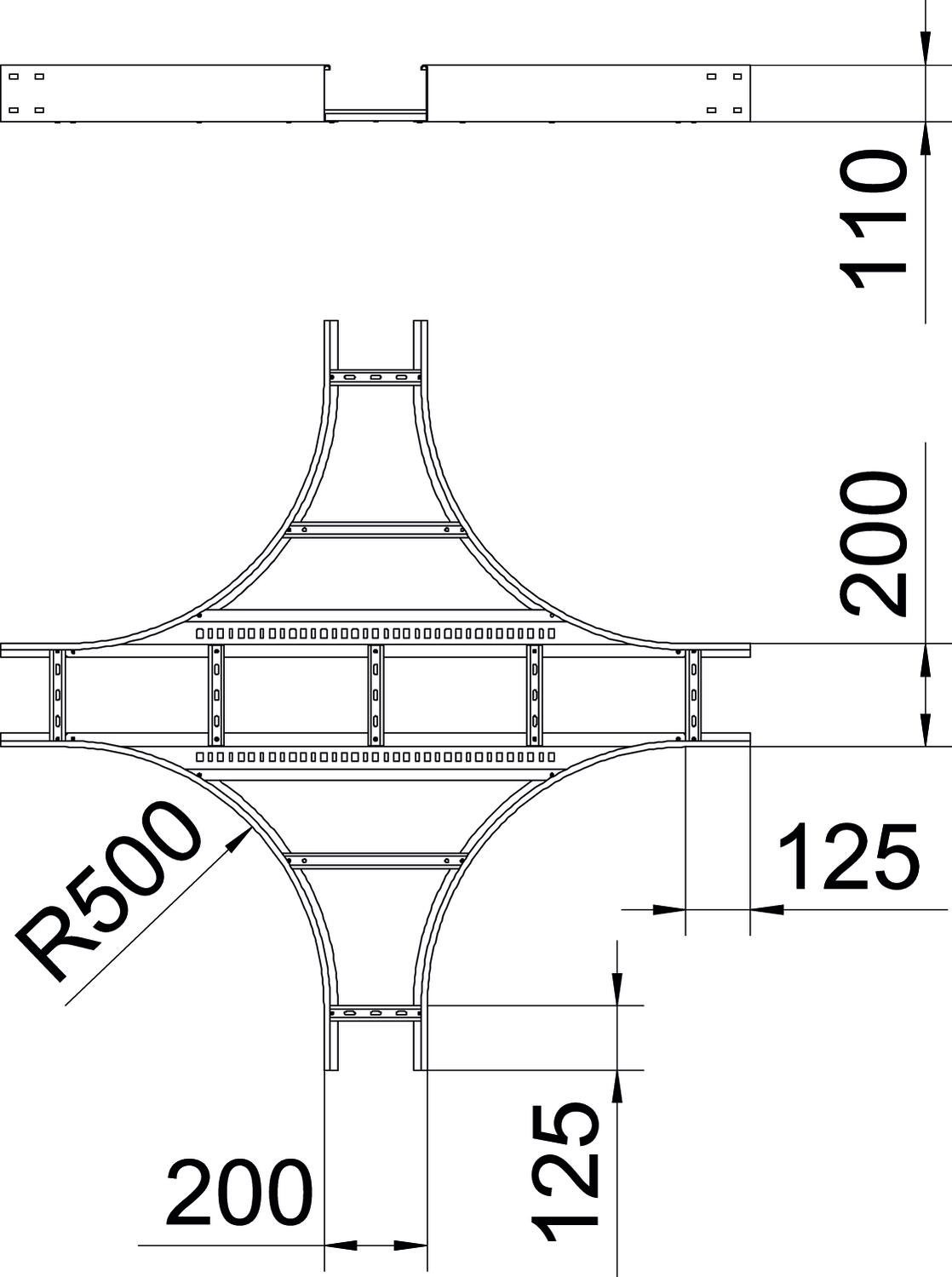

Colour zinc Dimension 110x200 Dimension B 200 mm Dimension R 500 mm Height 110 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Profile (open) Surface Strip galvanized Version of the rungs Profile unperforated Wide-span version no Width 200 mm - All types
-
Mounting accessories
Products Types Item no.
Straight connector FS
LVG 110 FS 6216545 - Downloads
-
Data sheet LK 1120 R5 FS / 6219682 , 0.22MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity LK 1120 R5 FS / 6219682 , 0.10MB , pdfUK Declaration of Conformity LK 1120 R5 FS / 6219682 , 0.09MB , pdfREACH Declaration of conformity LK 1120 R5 FS / 6219682 , 0.12MB , pdfRoHS Declaration of conformity LK 1120 R5 FS / 6219682 , 0.09MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
