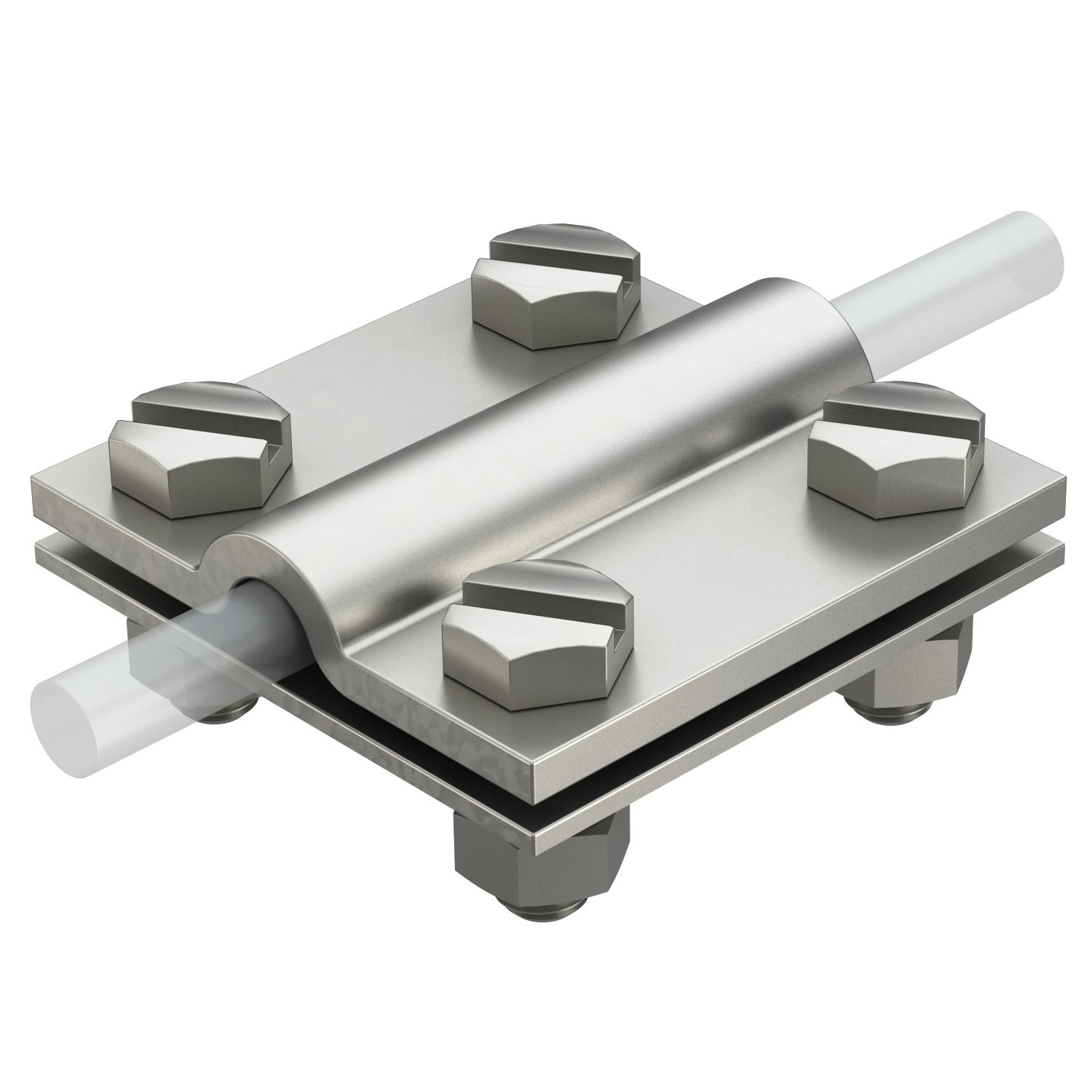

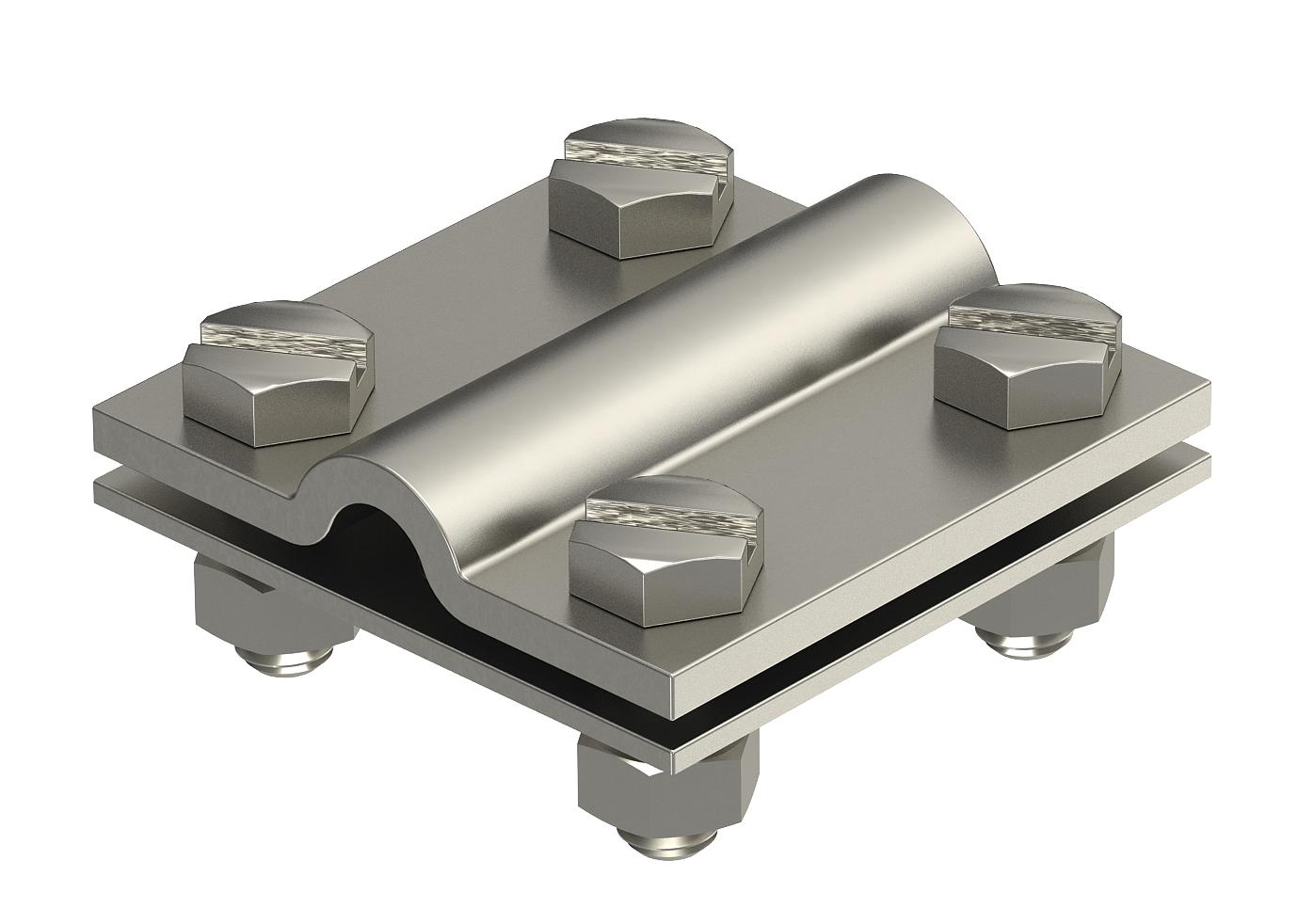

Cross-connector for round conductors and flat conductors A4
Item no. 5312656 | EAN 4012195893141
- Product description
-
Product description• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Rd 8-10 x FL 30
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 1,1965 kg CO2e / 1 Piece Dimension 8-10mm Dimension A 60 mm Dimension B 60 mm Fit Rd 8-10/FL30 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Stainless steel Suitable for connection Round conductor Rd 8-10 / flat conductor Fl 30 Type of connector Cross-connectors Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 252 8-10xFL30V4A / 5312656 , 0.20MB , pdfMounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdf
