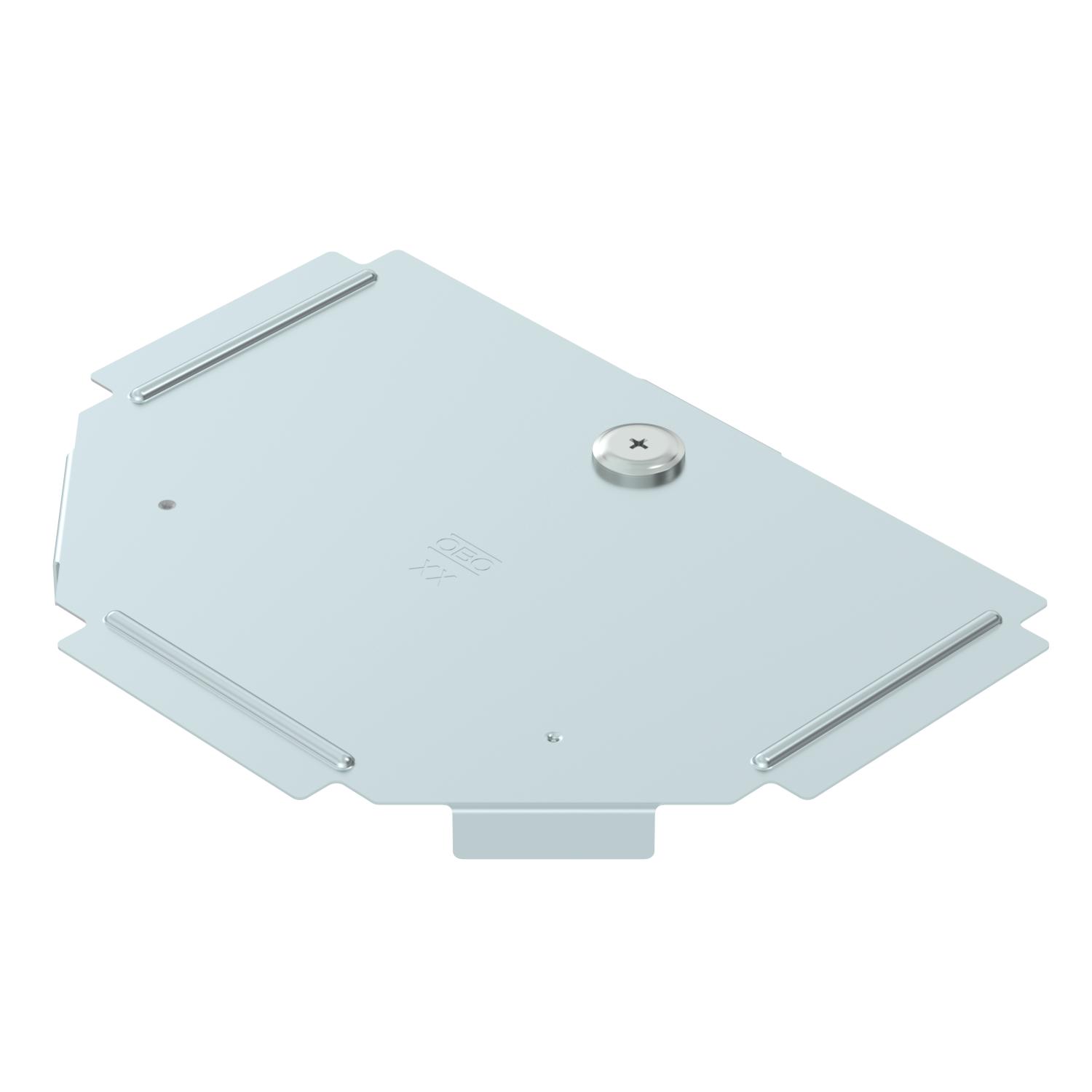

Cover, T piece FS

Item no. 6038600 | EAN 4012197407995

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for T piece fitting for lockable and screw-on cable trays in indoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,915 kg CO2e / 1 Piece
Colour	zinc
Dimension	B100mm
Dimension B	100 mm
Fastening type	Sash lock
Material	Steel
Material thickness	0,75 mm
Number of turn buckles	1 St.
Permitted temperature range, max.	120 °C

Permitted temperature range, min.	-20 °C
Plate thickness	0,75 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Surface	Strip galvanized
Wide-span version	no
Width	100 mm

All types

All types

Types	Width	Plate thickness	Item no.
RTD 100 FS	100 mm	0.75 mm	6038600
RTD 150 FS	150 mm	0.75 mm	6038602
RTD 200 FS	200 mm	0.75 mm	6038604
RTD 300 FS	300 mm	0.75 mm	6038606
RTD 400 FS	400 mm	1 mm	6038608
RTD 500 FS	500 mm	1 mm	6038610
RTD 600 FS	600 mm	1 mm	6038612
