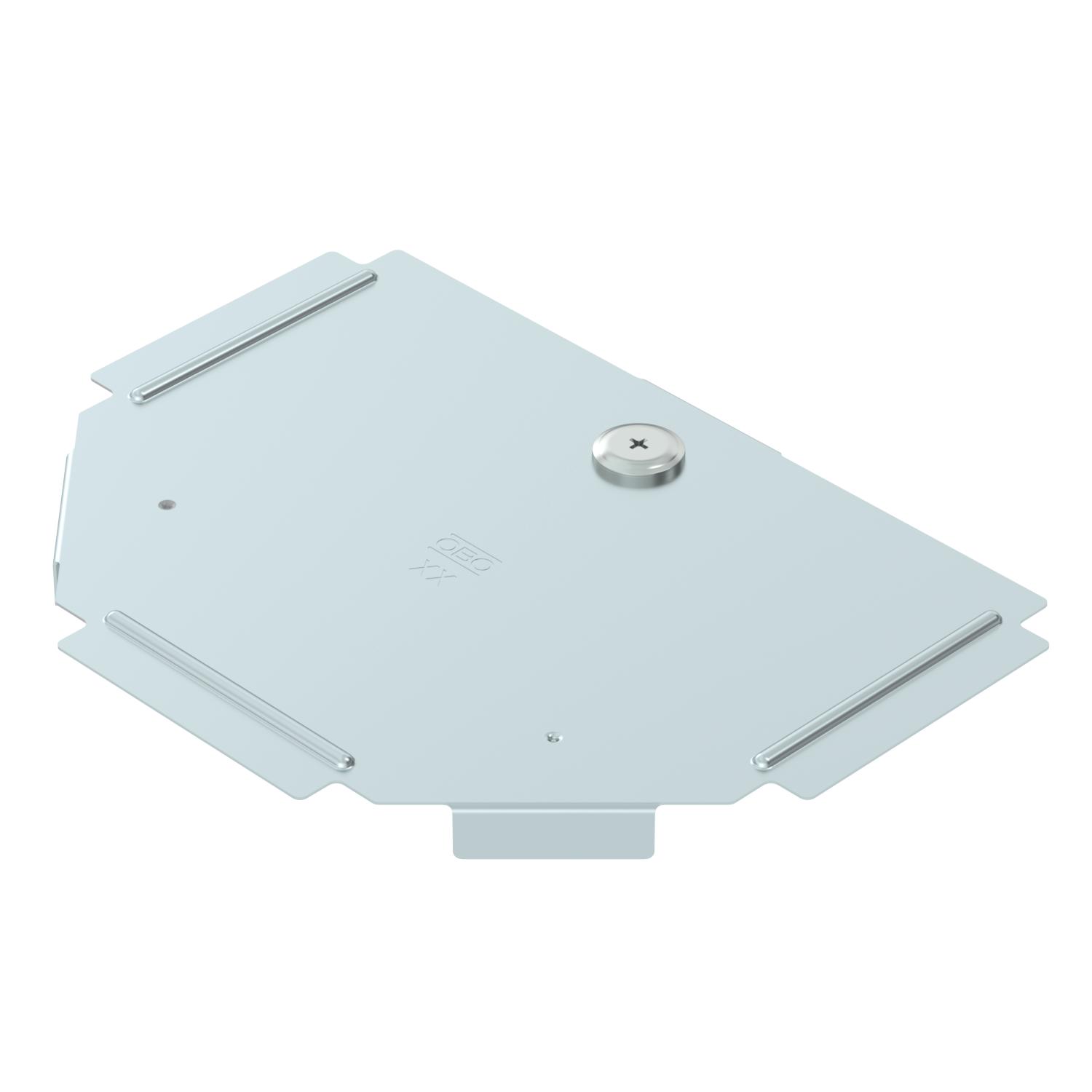

Cover, T piece DD

Item no. 6038640 | EAN 4012197408138

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for T piece fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	1,2807 kg CO2e / 1 Piece
Colour	zinc
Dimension	B100mm
Dimension B	100 mm
Fastening type	Sash lock
Material	Steel
Material thickness	0,75 mm
Number of turn buckles	1 St.
Permitted temperature range, max.	120 °C

Permitted temperature range, min.	-20 °C
Plate thickness	0,75 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Surface	Strip galvanised zinc/aluminium, Double Dip
Wide-span version	no
Width	100 mm

All types

All types

Types	Width	Plate thickness	Item no.
RTD 100 DD	100 mm	0.75 mm	6038640
RTD 150 DD	150 mm	0.75 mm	6038642
RTD 200 DD	200 mm	0.75 mm	6038644
RTD 300 DD	300 mm	0.75 mm	6038646
RTD 400 DD	400 mm	1 mm	6038648
RTD 500 DD	500 mm	1 mm	6038650
RTD 600 DD	600 mm	1 mm	6038652
