Cover, T piece 100 A4

Item no. 6038680 | EAN 4012197408794

Item no. / Types

Width

Plate thickness

Product description

Product description

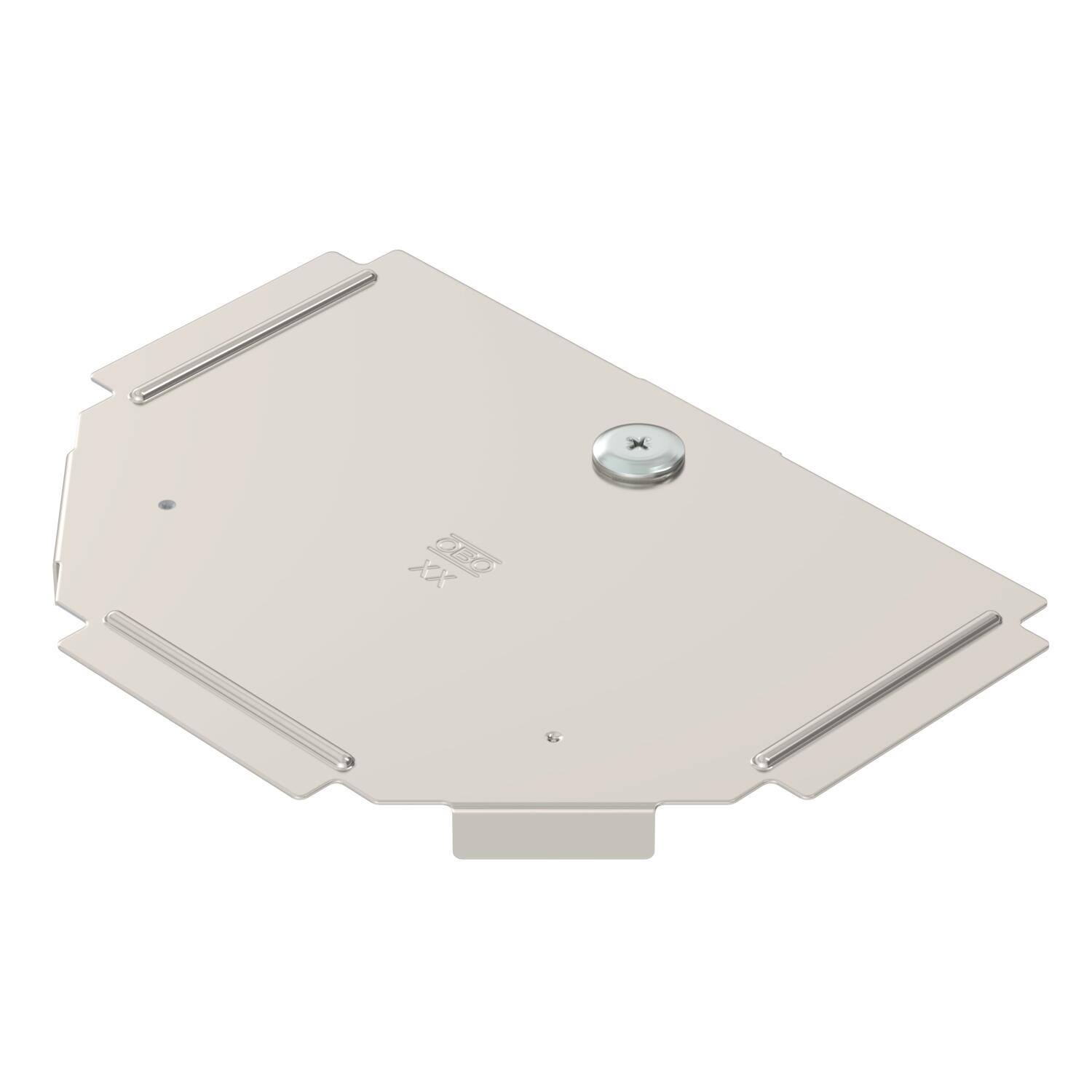

Cover for T piece fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	1,8262 kg CO2e / 1 Piece
Colour	stainless steel

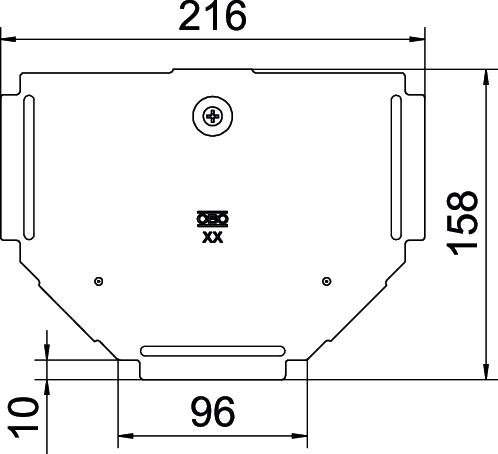

Dimension	B100mm
Dimension B	100 mm
Fastening type	Sash lock
Material	Stainless steel
Material thickness	0,75 mm
Number of turn buckles	1 St.
Permitted temperature range, max.	120 °C

Permitted temperature range, min.	-20 °C
Plate thickness	0,75 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Surface	Bright, treated
Wide-span version	no
Width	100 mm

All types

All types

Types	Width	Plate thickness	Item no.
RTD 100 A4	100 mm	0.75 mm	6038680
RTD 200 A4	200 mm	0.75 mm	6038682
RTD 300 A4	300 mm	0.75 mm	6038684
RTD 400 A4	400 mm	1 mm	6038686
RTD 500 A4	500 mm	1 mm	6038688
RTD 600 A4	600 mm	1 mm	6038690
