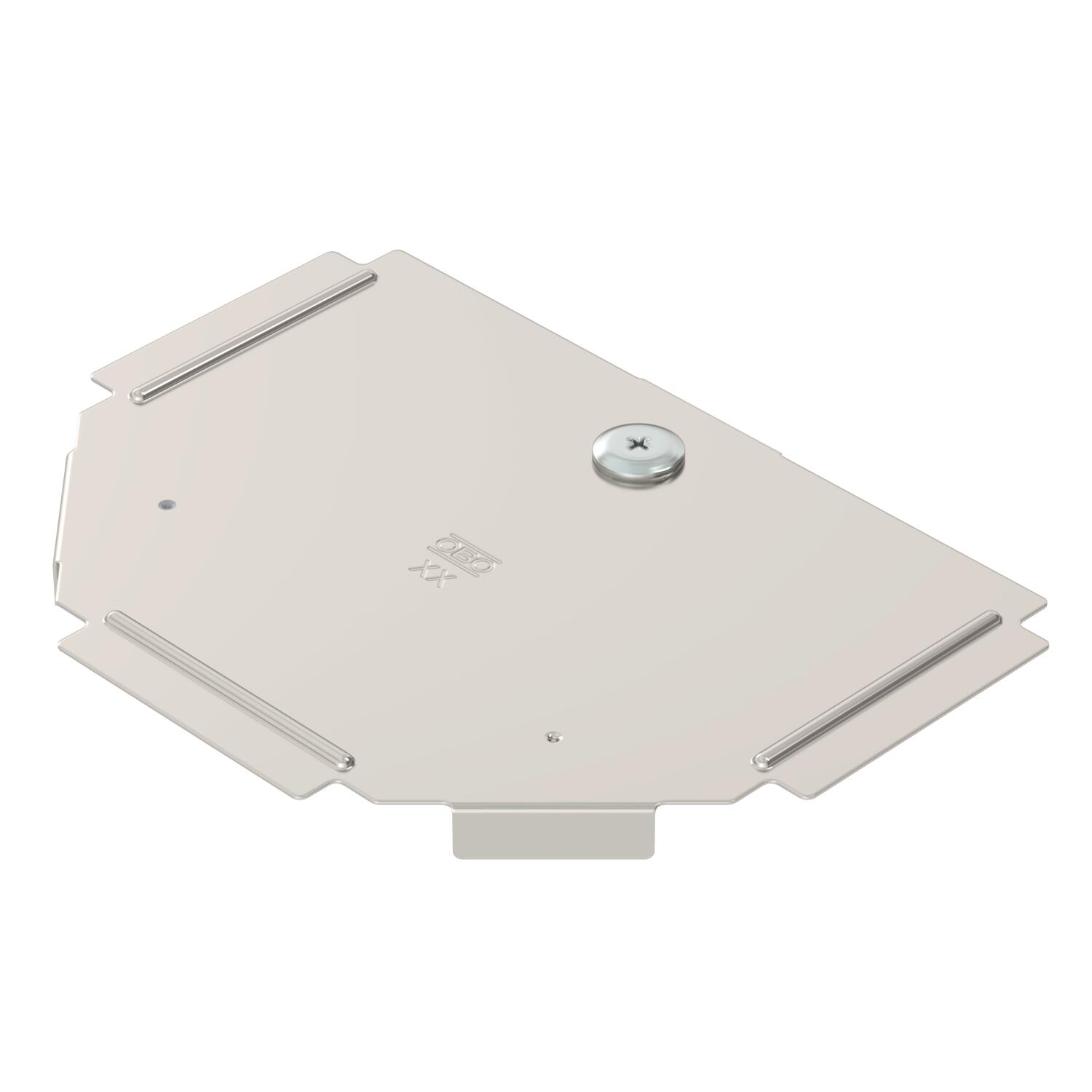

Cover, T piece 100 A2

Item no. 6038661 | EAN 4012197408275

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for T piece fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	1,8253 kg CO2e / 1 Piece
Colour	stainless steel
Dimension	B100mm
Dimension B	100 mm
Fastening type	Sash lock
Material	Stainless steel
Material thickness	0,75 mm
Number of turn buckles	1 St.
Permitted temperature range, max.	120 °C

Permitted temperature range, min.	-20 °C
Plate thickness	0,75 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Surface	Bright, treated
Wide-span version	no
Width	100 mm

All types

All types

Types	Width	Plate thickness	Item no.
RTD 100 A2	100 mm	0.75 mm	6038661
RTD 200 A2	200 mm	0.75 mm	6038662
RTD 300 A2	300 mm	0.75 mm	6038664
RTD 400 A2	400 mm	1 mm	6038666
RTD 500 A2	500 mm	1 mm	6038668
RTD 600 A2	600 mm	1 mm	6038670
