Cover plate for universal support UT4, Modul 45® installation opening
Item no. 7408761 | EAN 4012196435333
- Product description
-

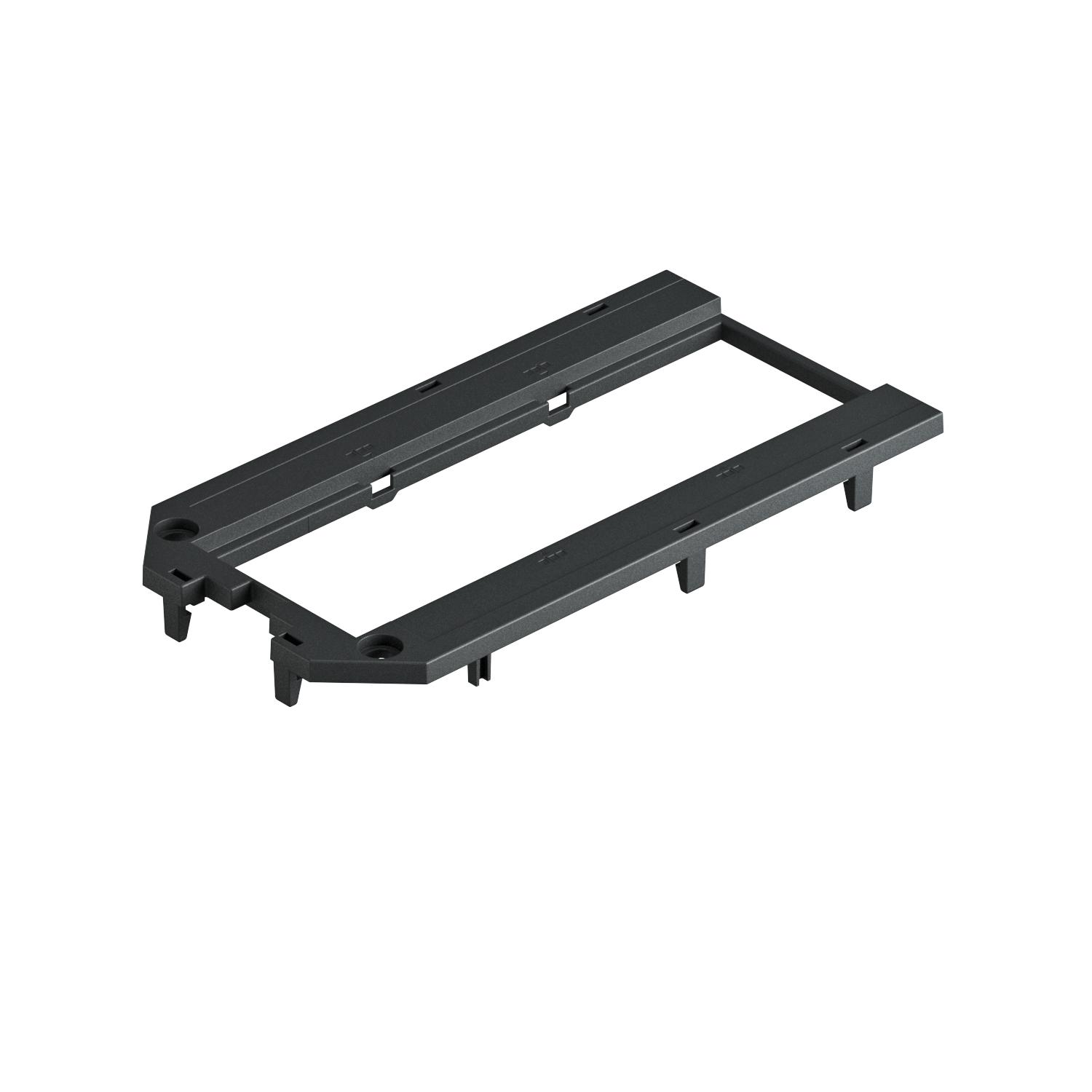

Product descriptionCover plate for the installation of 3 Modul 45 devices.
UT34T mounting bridge for the installation of individual devices or socket combinations must be ordered separately.
-
- Technical data
-
Technical data

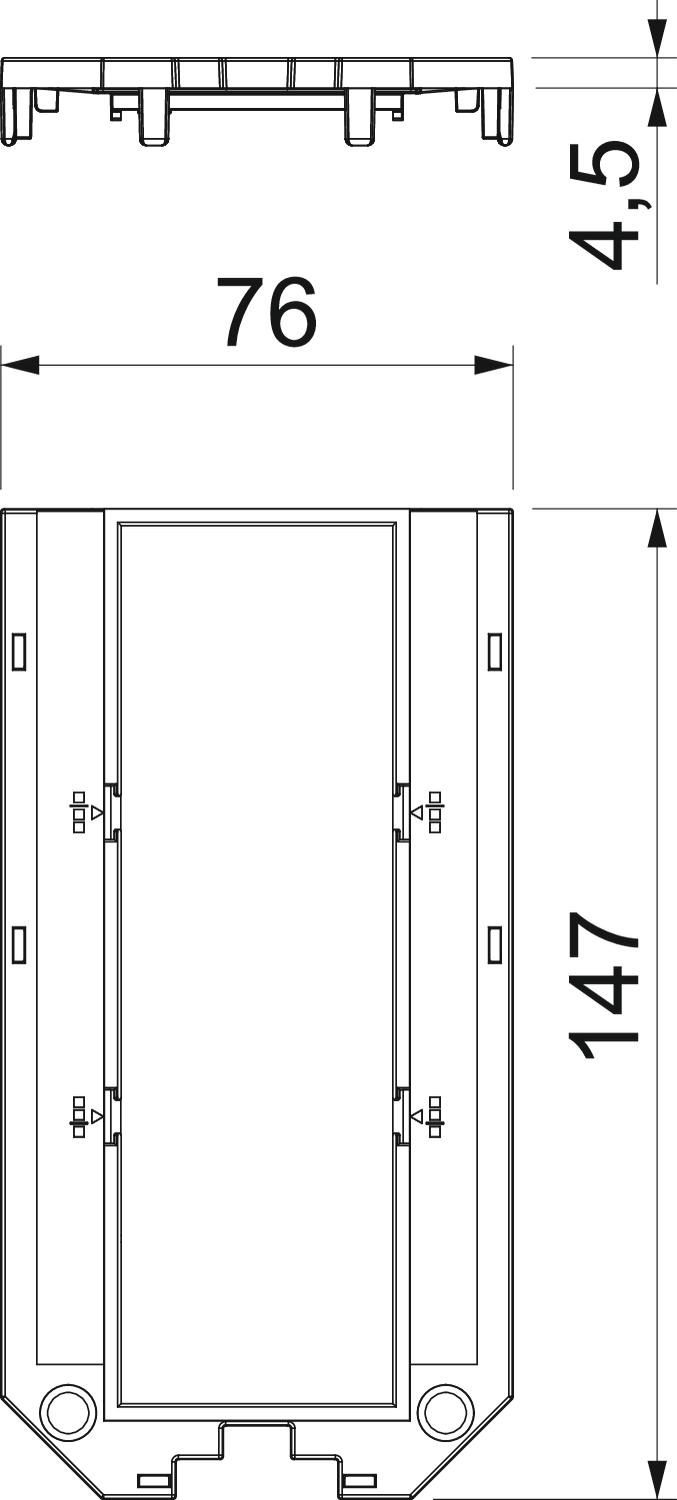

Application Mounting box Blanking lid no CO2 Footprint (GWP) Cradle-to-Gate 0,0992 kg CO2e / 1 Piece Colour Graphite black; RAL 9011 Dimension 147x76x4 Division in UT4 3/4 Fastening type Lockable Installation technology Grid M45 Labelling panel no Length 147 mm Material Polyamide Number of installable devices 3 Number of triple openings 1 Suitable for labelling panel no - All types
- Downloads
-
Data sheet UT4 P3 / 7408761 , 0.17MB , pdfEU declaration of conformity UT4 P3 / 7408761 , 0.10MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfMounting instructions Mounting instructions Universal support , 0.86MB , pdf
