Cover for WDK trunking, trunking width 150 mm 2000 | Stone grey; RAL 7030

morepic-1

morepic-2

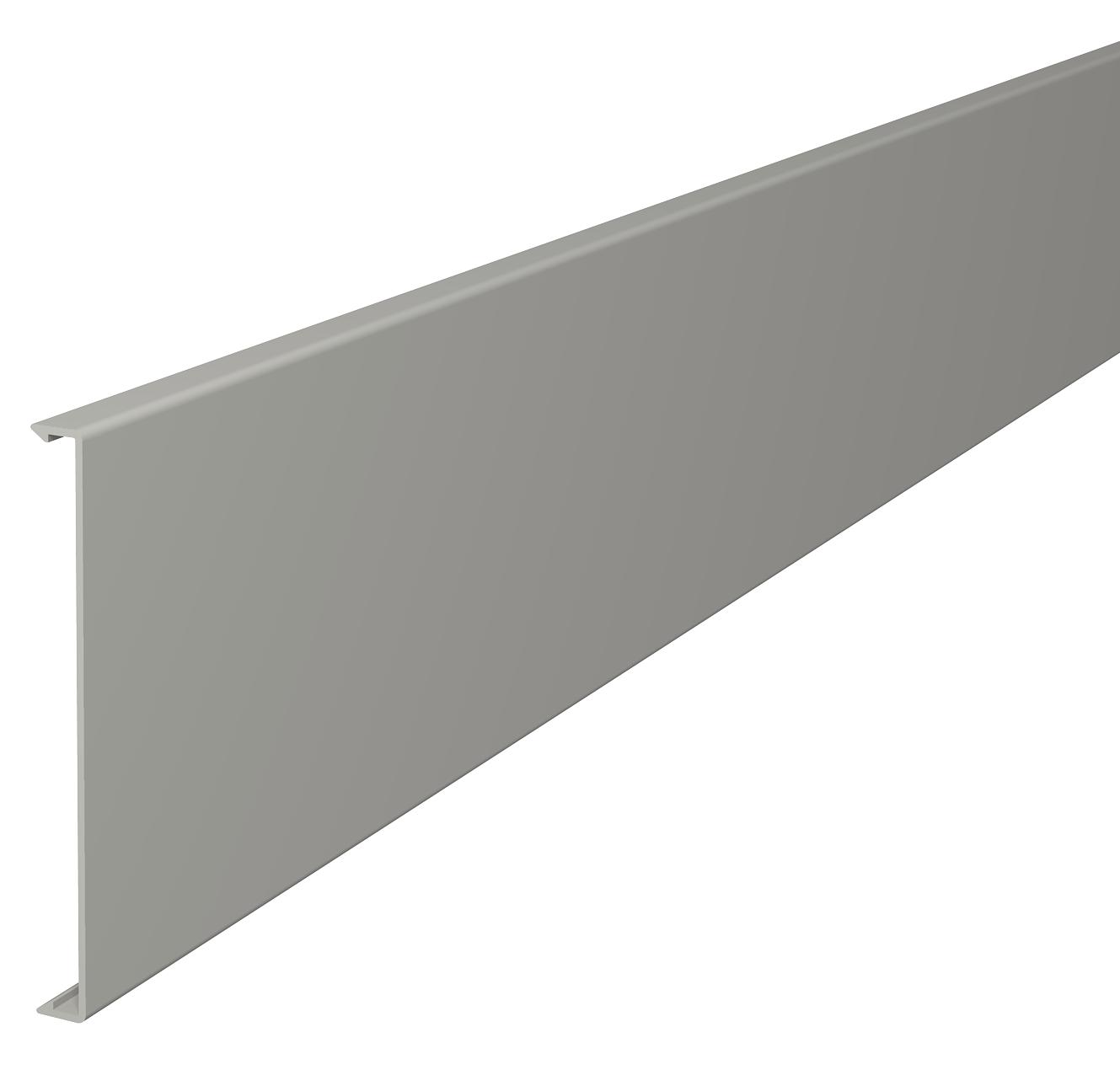

Cover for WDK trunking, trunking width 150 mm

Item no. 6022731 | EAN 4012196637690

Item no. / Types

Length	2000 mm

Colour

Product description

Product description

Cover for closing the trunking.

Technical data

Technical data

Antibacterial treatment	no
CO2 Footprint (GWP) Cradle-to-Gate	1,1607 kg CO2e / 1 Meter
Colour	Stone grey; RAL 7030
Dimension	150x2000mm
Halogen-free	no
Length	2000 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Width	150 mm

All types

All types

Types	Length	Colour	Item no.
2410 150GR	2000 mm	Stone grey; RAL 7030	6022731
2410 150RW	2000 mm	Pure white; RAL 9010	6191673

Downloads

Data sheet 2410 150GR / 6022731 , 0.17MB , pdf

Safety data sheet 2410 150GR / 6022731 , 0.02MB , pdf

Catalogue Cable routing systems , 17.62MB , pdf

EU declaration of conformity 2410 150GR / 6022731 , 0.10MB , pdf

UK Declaration of Conformity 2410 150GR / 6022731 , 0.09MB , pdf

Download

Test report Wand- und Deckelkanal aus PVC-U , 0.38MB , pdf

Download

Mounting instructions Cable trunking WDK , 6.19MB , pdf

Product graphic 2410 150GR / 6022731, 27.04 kB, jpg

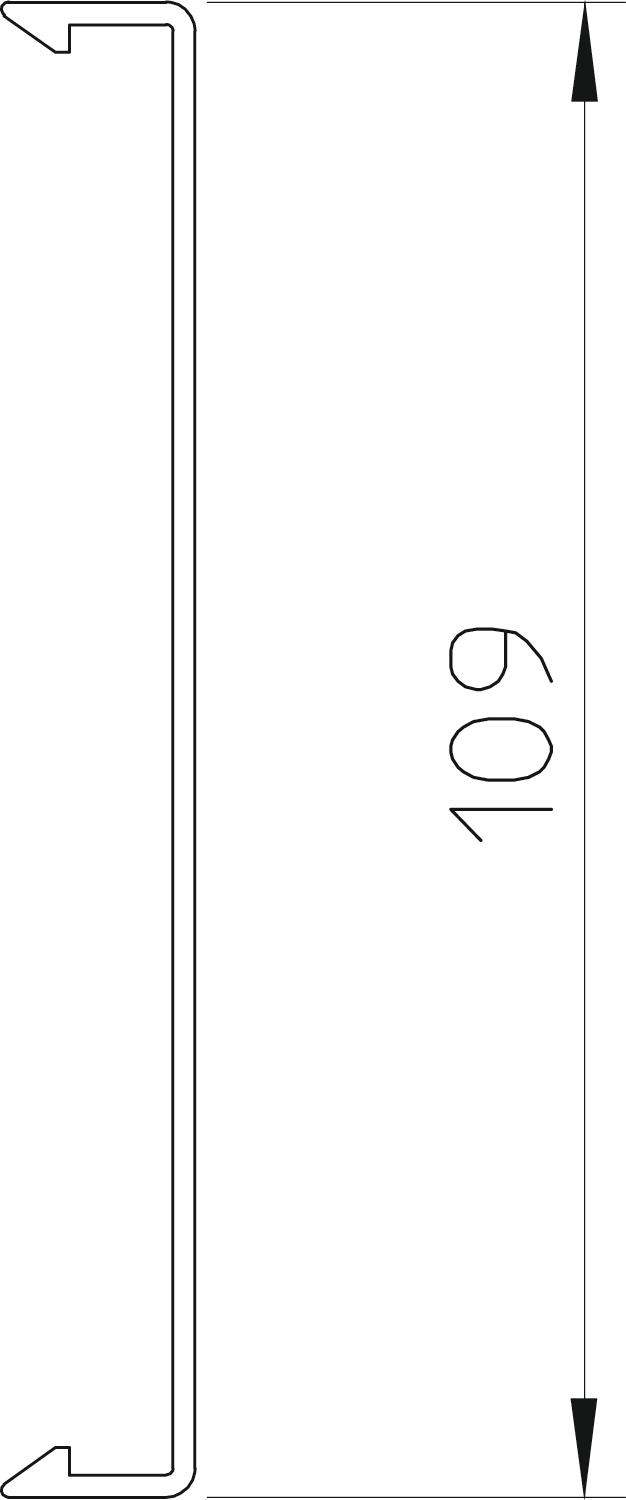

Scale drawing 2410 150GR / 6022731, 22.75 kB, jpg

No invitation to tender text is available for this product.
