Cover for WDK trunking, trunking width 110 mm 2000 | Cream; RAL 9001

morepic-1

morepic-2

Cover for WDK trunking, trunking width 110 mm

Item no. 6027644 | EAN 4012196031030

Item no. / Types	6027644 / 2410 110CW

Length	2000 mm

Colour	Cream; RAL 9001

Product description

Product description

Cover for closing the trunking.

Technical data

Technical data

Antibacterial treatment	no
CO2 Footprint (GWP) Cradle-to-Gate	0,6119 kg CO2e / 1 Meter
Colour	Cream; RAL 9001
Dimension	110x2000mm
Halogen-free	no
Length	2000 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Width	110 mm

All types

All types

Types	Length	Colour	Item no.
2410 110CW	2000 mm	Cream; RAL 9001	6027644

Downloads

Data sheet 2410 110CW / 6027644 , 0.17MB , pdf

Safety data sheet 2410 110CW / 6027644 , 0.02MB , pdf

Catalogue Cable routing systems , 17.62MB , pdf

EU declaration of conformity 2410 110CW / 6027644 , 0.10MB , pdf

UK Declaration of Conformity 2410 110CW / 6027644 , 0.09MB , pdf

Download

Test report Wand- und Deckelkanal aus PVC-U , 0.38MB , pdf

Download

Mounting instructions Cable trunking WDK , 6.19MB , pdf

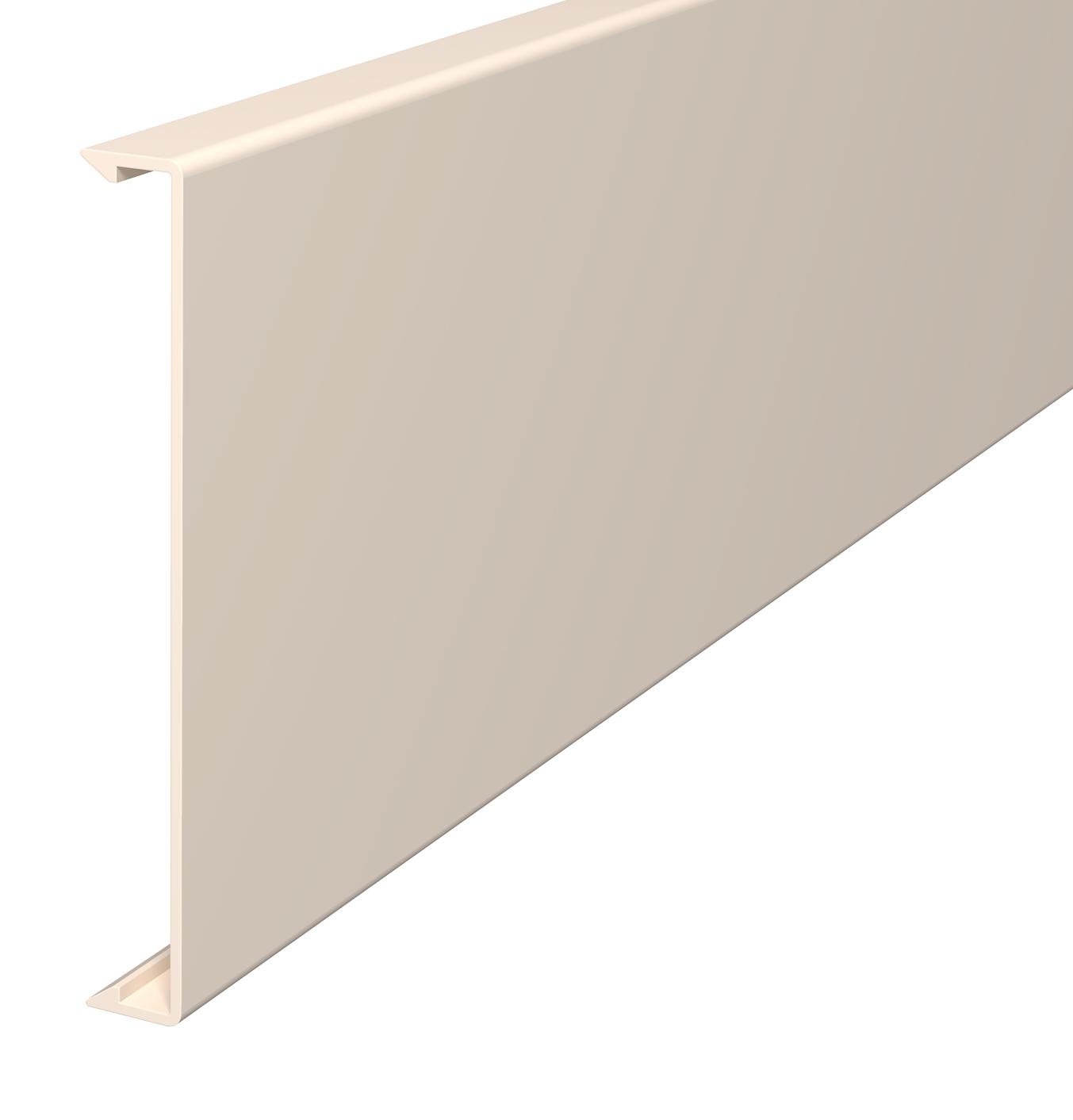

Product graphic 2410 110CW / 6027644, 27.52 kB, jpg

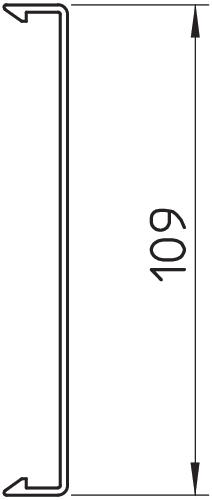

Scale drawing 2410 110CW / 6027644, 8.70 kB, jpg

No invitation to tender text is available for this product.
