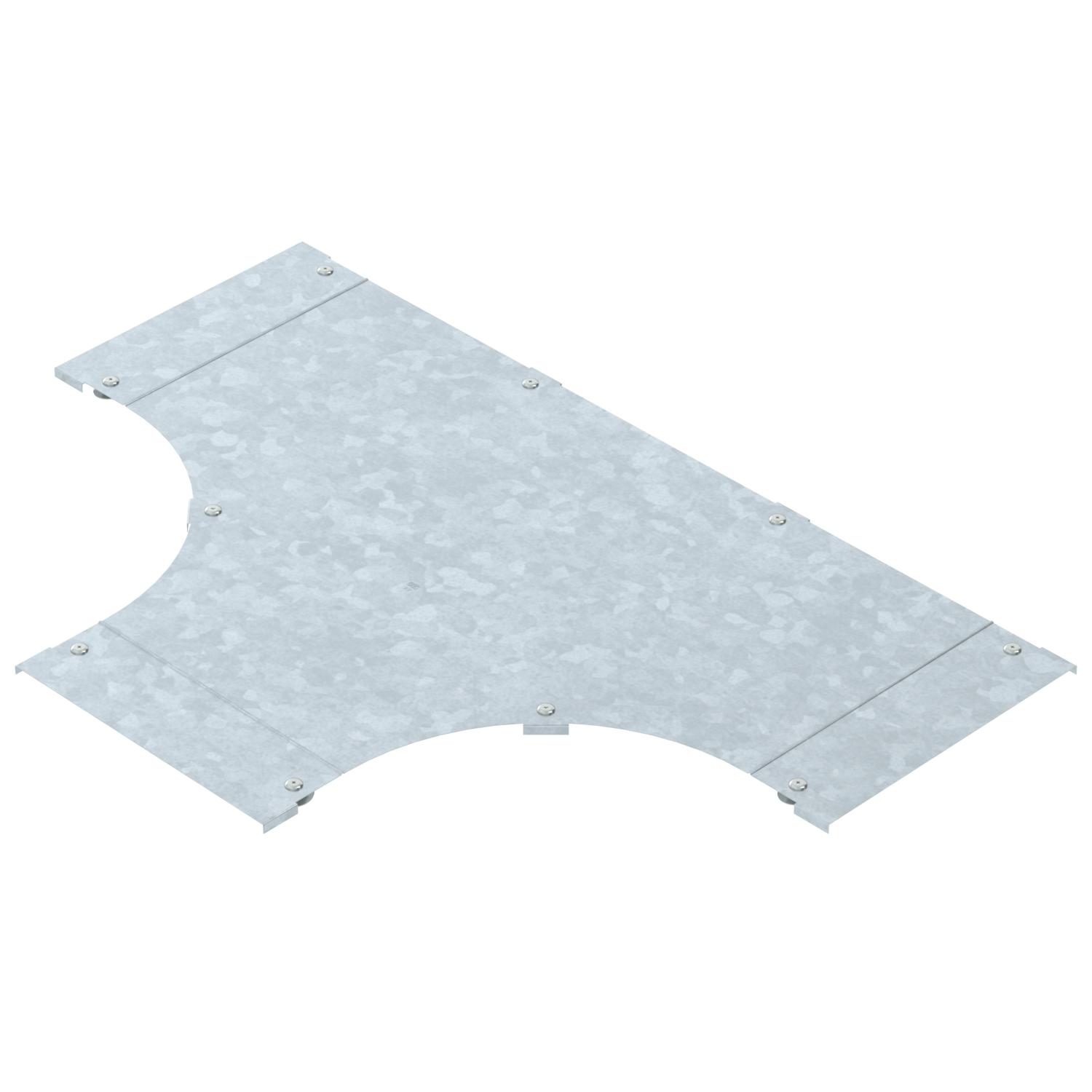

Cover for tee FT

Item no. 6226120 | EAN 4012196535675

Product description
Product description
Cover with turn buckles for covering T pieces with welded rungs.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 45 mm
  • Cable ladder, side height 60 mm
  • Cable ladder, side height 110 mm

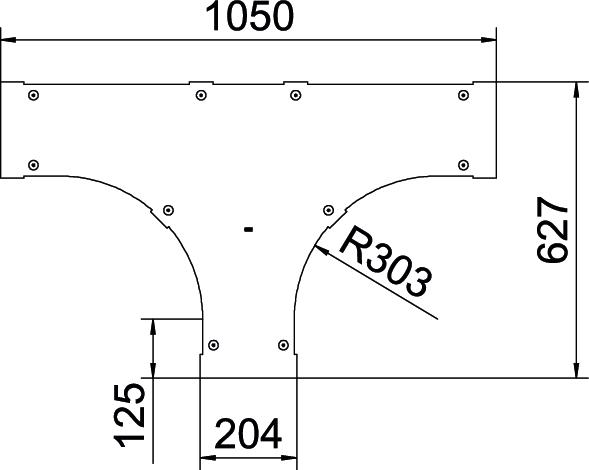

Technical data

Technical data

Colour zinc
Dimension B200
Dimension B 200 mm
Fastening type Sash lock
Material Steel
Material thickness 1 mm
Plate thickness 1 mm
Rustproof steel, pickled no
Suitable for cable ladder yes
Suitable for cable tray no
Surface Hot-dip galvanised
Wide-span version no
Width 200 mm
All types

All types

Types Width Plate thickness Item no.
LTD 200 R3 FT 200 mm 1 mm 6226120
LTD 300 R3 FT 300 mm 1 mm 6226122
LTD 400 R3 FT 400 mm 1 mm 6226124
LTD 450 R3 FT 450 mm 1.25 mm 6226126
LTD 500 R3 FT 500 mm 1.25 mm 6226128
LTD 600 R3 FT 600 mm 1.25 mm 6226130
LTD 750 R3 FT 750 mm 1.25 mm 6226132
LTD 800 R3 FT 800 mm 1.25 mm 6226134
LTD 900 R3 FT 900 mm 1.25 mm 6226136
LTD 1000 R3 FT 1000 mm 1.25 mm 6226138
LTD 1200 R3 FT 1200 mm 1.25 mm 6226142
