Cover for tee FT 200 | 1.5
morepic-1 morepic-2

Cover for tee FT

Item no. 6239861 | EAN 4012196882694

1.5 mm
Product description
Product description

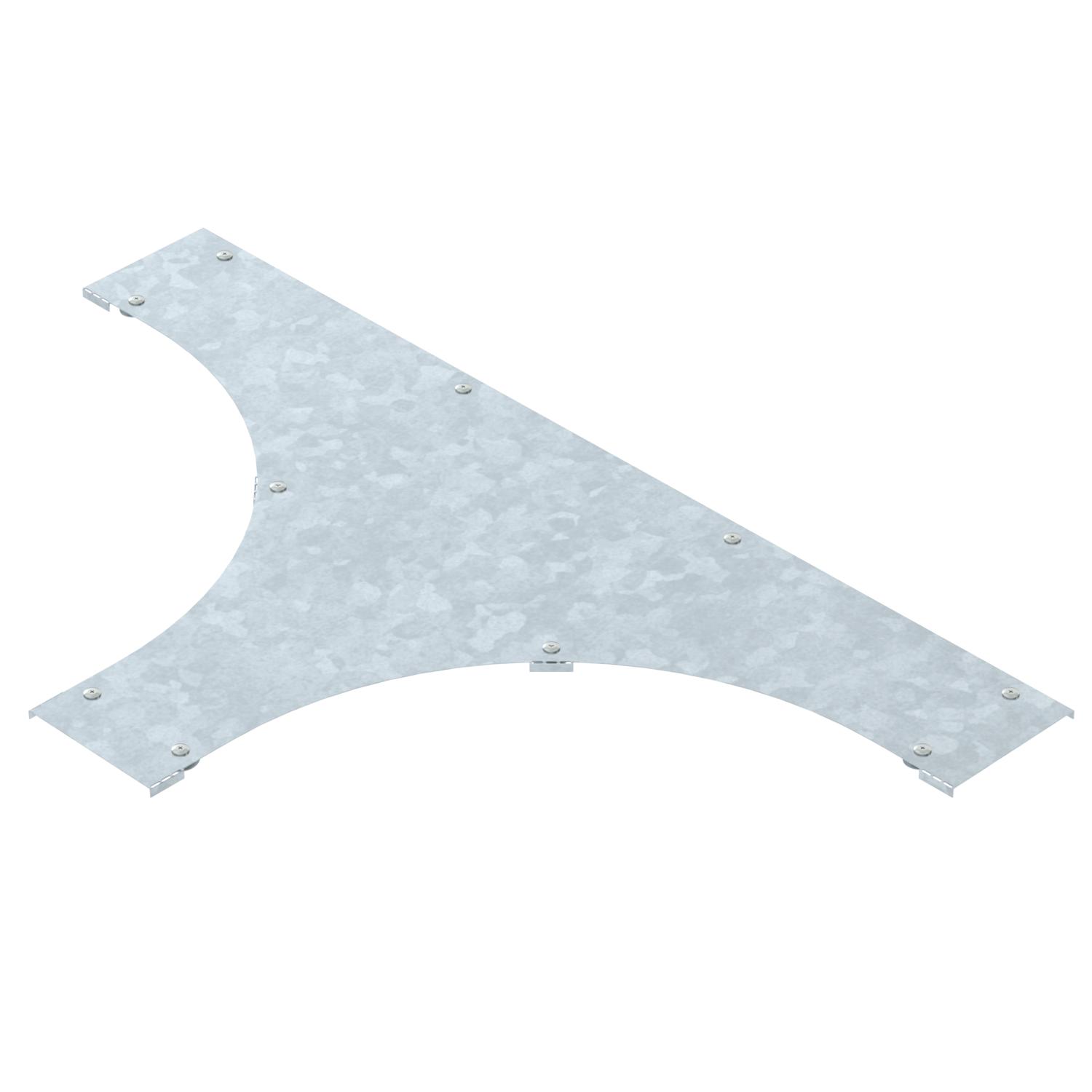

Cover with turn-buckles for covering tees.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 45 mm
  • Cable ladder, side height 60 mm
  • Cable ladder, side height 110 mm
Technical data

Technical data

Colour zinc

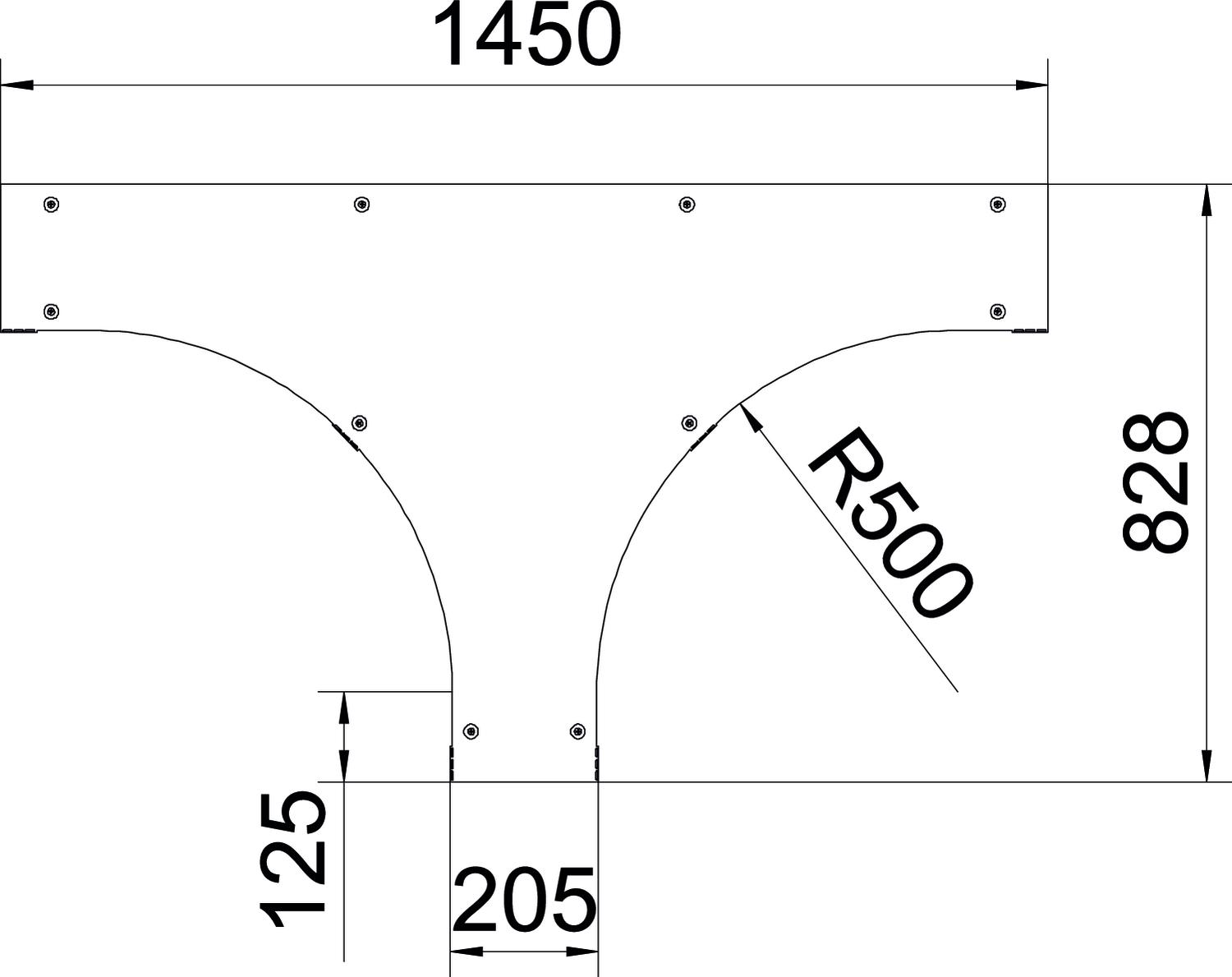

Dimension B200mm
Material Steel
Material thickness 1,5 mm
Plate thickness 1,5 mm
Surface Hot-dip galvanised
Width 200 mm
All types

All types

Types Width Plate thickness Item no.
T D 200 R5 FT 200 mm 1.5 mm 6239861
T D 300 R5 FT 300 mm 1.5 mm 6239863
T D 400 R5 FT 400 mm 1.5 mm 6239865
T D 500 R5 FT 500 mm 1.5 mm 6239867
T D 600 R5 FT 600 mm 1.5 mm 6239869
Downloads

Download

Download
Download
Download

EU declaration of conformity T D 200 R5 FT / 6239861 , 0.10MB , pdf
Download
UK Declaration of Conformity T D 200 R5 FT / 6239861 , 0.09MB , pdf
Download
REACH Declaration of conformity T D 200 R5 FT / 6239861 , 0.12MB , pdf
Download
RoHS Declaration of conformity T D 200 R5 FT / 6239861 , 0.12MB , pdf
Download

Download

T D 200 R5 FT / 6239861
Download
