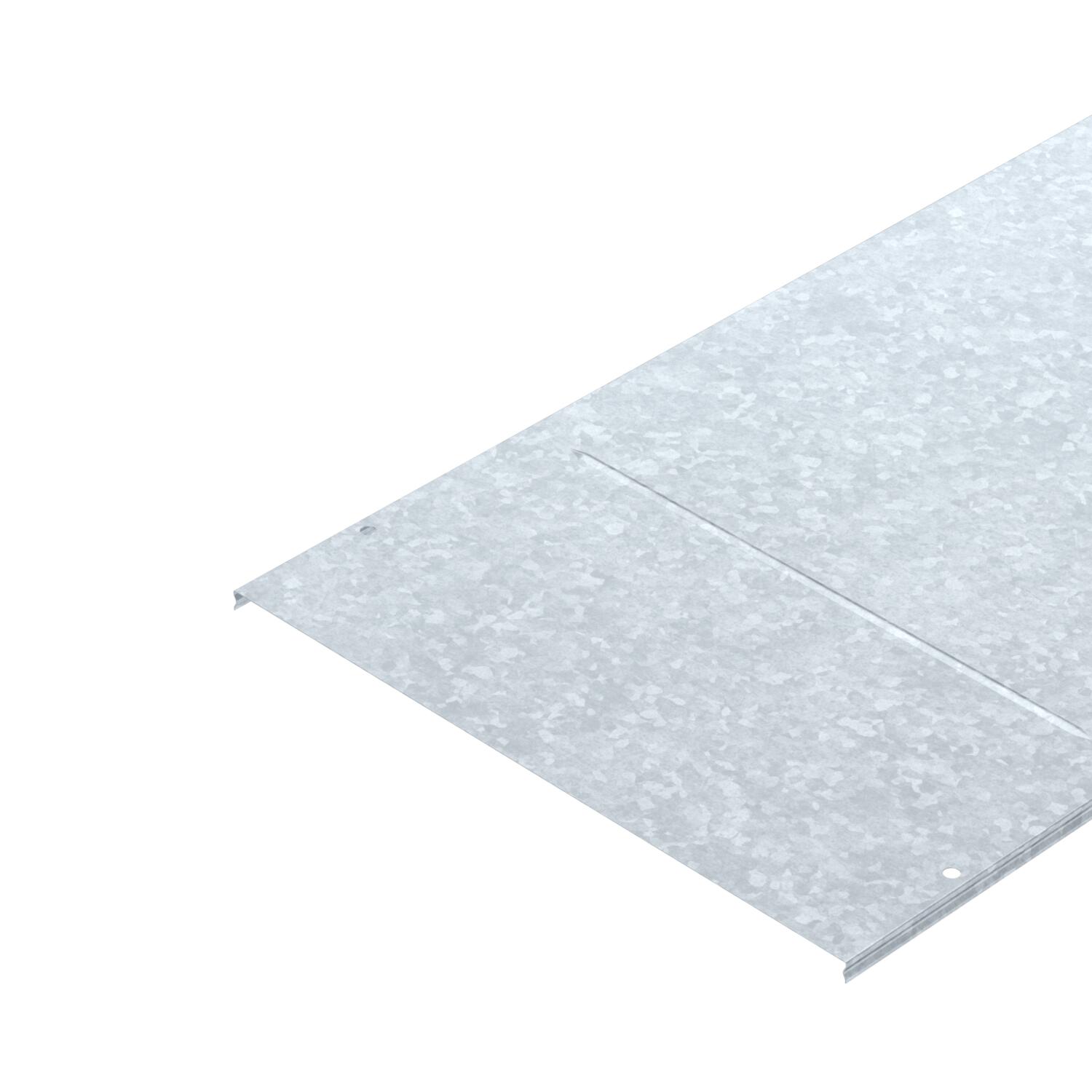

Cover for mesh cable tray, latchable FT
Item no. 6001832 | EAN 4012196687312
- Product description
-
Product descriptionLockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for industrial areas such as mechanical engineering.
When using covers outdoors, additional measures against the influence of wind may need to be taken.
-
- Technical data
-
Technical data

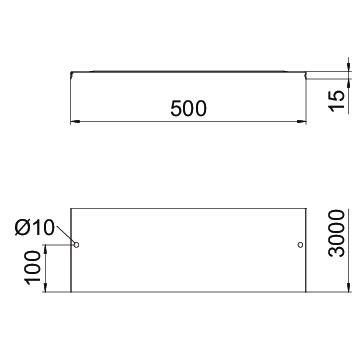

CO2 Footprint (GWP) Cradle-to-Gate 10,3483 kg CO2e / 1 Meter Colour zinc Dimension 500x3000 Dimension B 498 mm Fastening type Locking Height 15 mm Height 0,59 in Length 3000 mm Maintain electrical functions no Material Steel Plate thickness 0,75 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Hot-dip galvanised Width 19,61 in Width 498 mm - All types
-
Mounting accessories
Products Types Item no.
Cover clamp, universal A2
DKU A2 6065600 - Downloads
-
Data sheet DGRR 500 FT / 6001832 , 0.16MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity DGRR 500 FT / 6001832 , 0.10MB , pdfREACH Declaration of conformity DGRR 500 FT / 6001832 , 0.12MB , pdfRoHS Declaration of conformity DGRR 500 FT / 6001832 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
