Cover for add-on tee FT 200 | 1
morepic-1 morepic-2 video-1 video-2

Cover for add-on tee FT

Item no. 6226330 | EAN 4012196536399

Product description
Product description

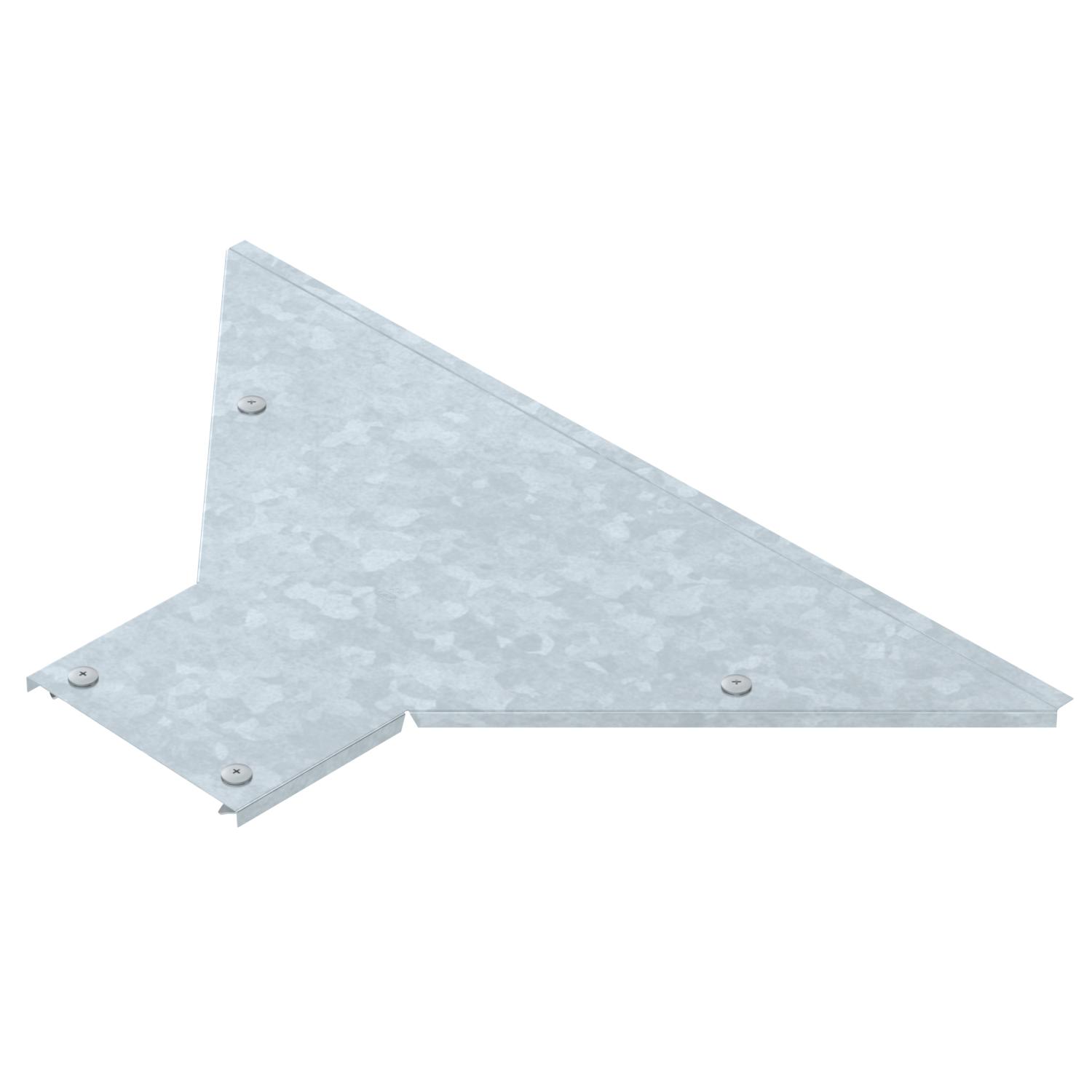

Cover with turn buckles for covering add-on tee with welded rungs.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour zinc

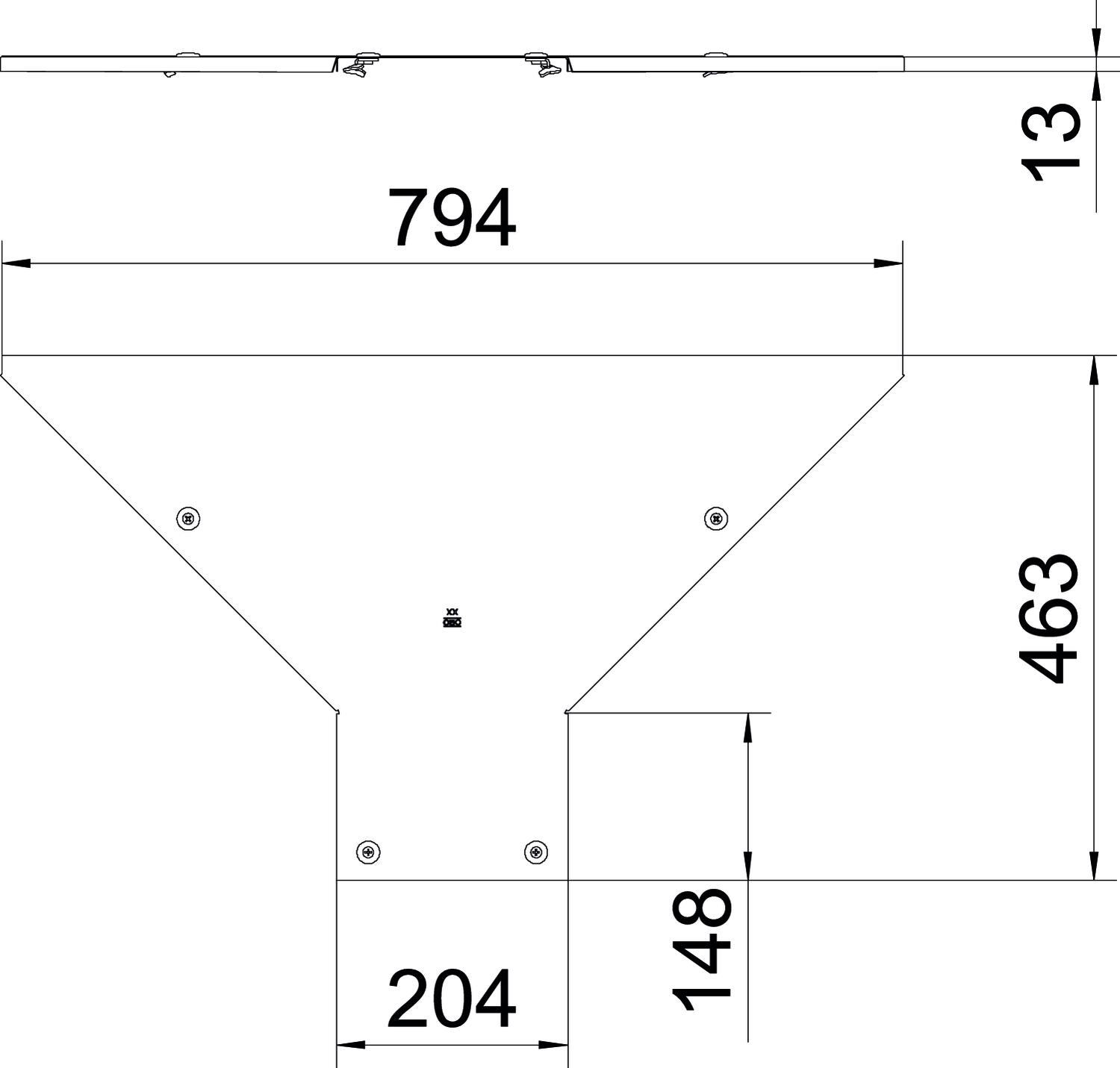

Dimension B200
Dimension B 200 mm
Fastening type Sash lock
Material Steel
Material thickness 1 mm
Plate thickness 1 mm
Rustproof steel, pickled no
Suitable for cable ladder yes
Suitable for cable tray no
Surface Hot-dip galvanised
Wide-span version no
Width 200 mm
All types

All types

Types Width Plate thickness Item no.
LAAD 200 R3 FT 200 mm 1 mm 6226330
LAAD 300 R3 FT 300 mm 1 mm 6226332
LAAD 400 R3 FT 400 mm 1 mm 6226334
LAAD 450 R3 FT 450 mm 1.25 mm 6226336
LAAD 500 R3 FT 500 mm 1.25 mm 6226338
LAAD 600 R3 FT 600 mm 1.25 mm 6226340
LAAD 750 R3 FT 750 mm 1.25 mm 6226342
LAAD 800 R3 FT 800 mm 1.25 mm 6226344
LAAD 900 R3 FT 900 mm 1.25 mm 6226346
LAAD 1000 R3 FT 1000 mm 1.25 mm 6226348
LAAD 1200 R3 FT 1200 mm 1.25 mm 6226352
