Cover for add-on tee FS
Item no. 6226316 | EAN 4012196536344
- Product description
-

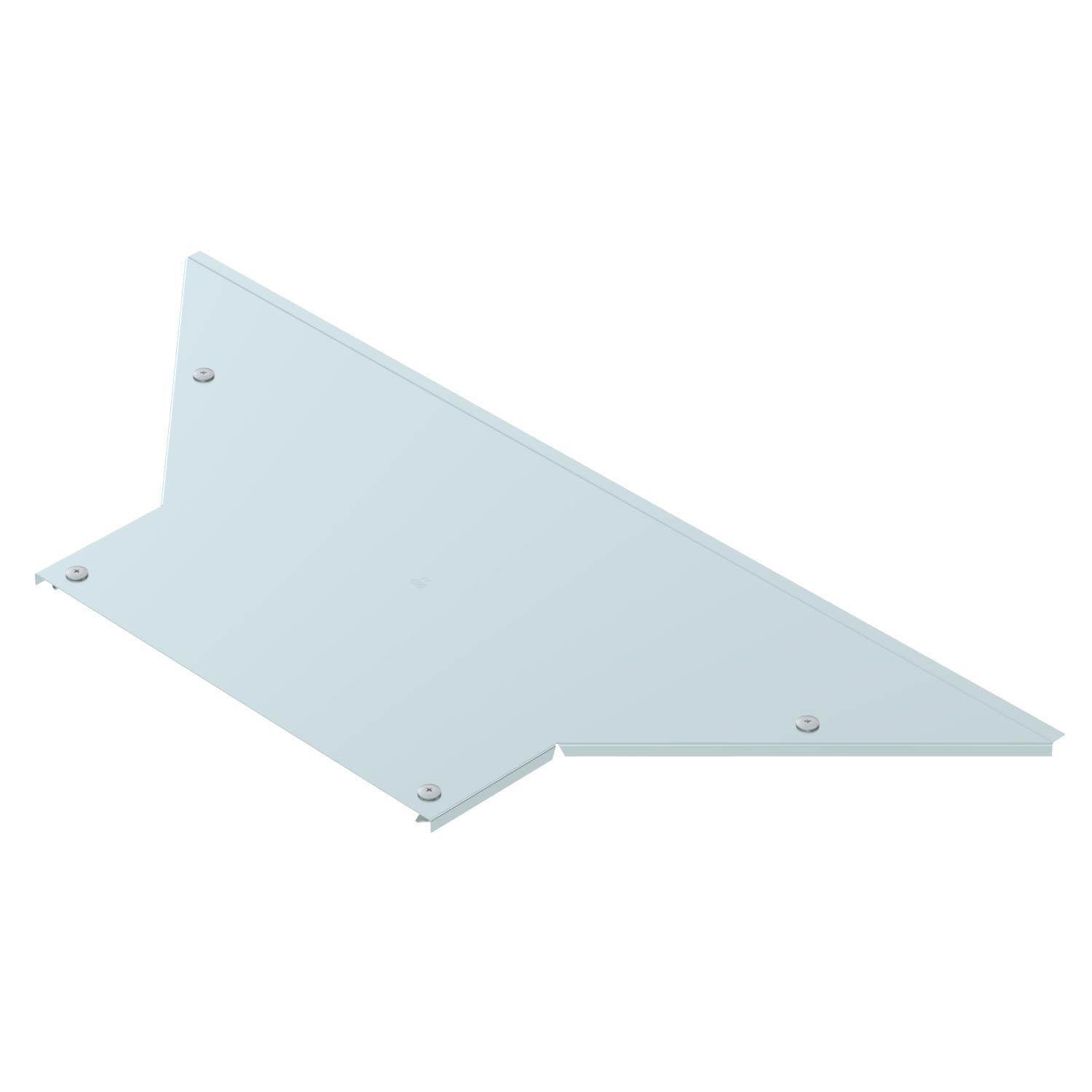

Product descriptionCover with turn buckles for covering add-on tee with welded rungs.
-
- Technical data
-
Technical data

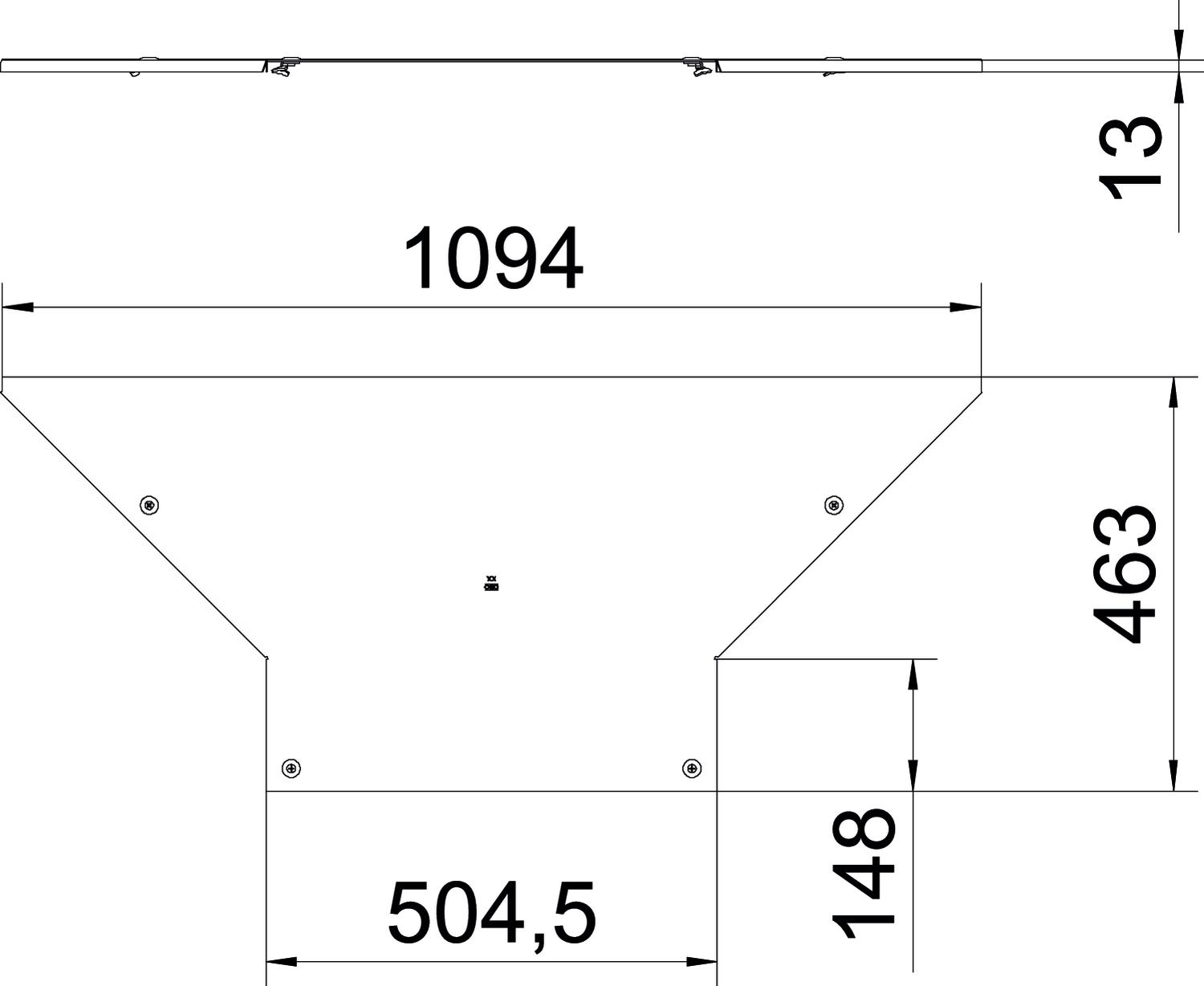

Colour zinc Dimension B500 Dimension B 500 mm Fastening type Sash lock Material Steel Material thickness 1,25 mm Plate thickness 1,25 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray no Surface Strip galvanized Wide-span version no Width 500 mm - All types
- Downloads
-
Data sheet LAAD 500 R3 FS / 6226316 , 0.18MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity LAAD 500 R3 FS / 6226316 , 0.10MB , pdfUK Declaration of Conformity LAAD 500 R3 FS / 6226316 , 0.09MB , pdfREACH Declaration of conformity LAAD 500 R3 FS / 6226316 , 0.12MB , pdfRoHS Declaration of conformity LAAD 500 R3 FS / 6226316 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
