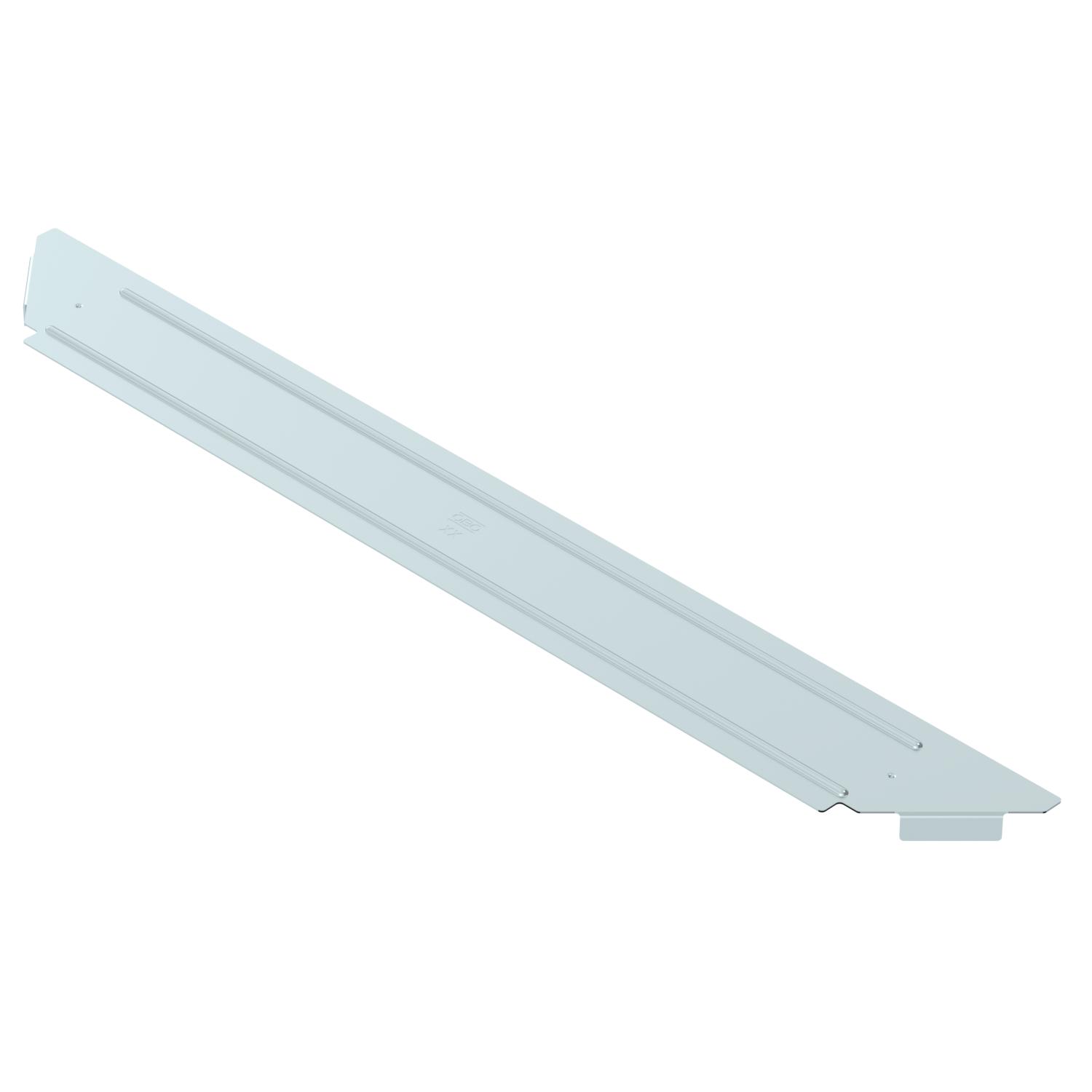

Cover for add-on tee DD

Item no. 6042441 | EAN 4012197406912

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for add-on tee fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	1,2479 kg CO2e / 1 Piece
Colour	zinc

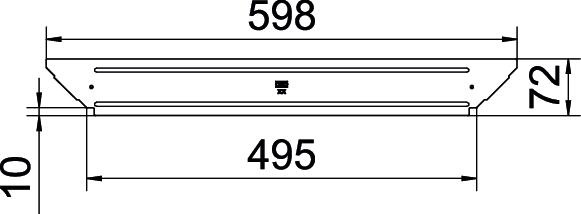

Dimension	B500mm
Dimension B	500 mm
Fastening type	On top
Material	Steel
Material thickness	1 mm
Permitted temperature range, max.	120 °C

Permitted temperature range, min.	-20 °C
Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Surface	Strip galvanised zinc/aluminium, Double Dip
Wide-span version	no
Width	500 mm

All types

All types

Types	Width	Plate thickness	Item no.
RAAD 100 DD	100 mm	0.75 mm	6042431
RAAD 150 DD	150 mm	0.75 mm	6042433
RAAD 200 DD	200 mm	0.75 mm	6042435
RAAD 300 DD	300 mm	0.75 mm	6042437
RAAD 400 DD	400 mm	1 mm	6042439
RAAD 500 DD	500 mm	1 mm	6042441
RAAD 600 DD	600 mm	1 mm	6042443
