Cover for 90° Magic bend DD
Item no. 7138540 | EAN 4012195929192
- Product description
-

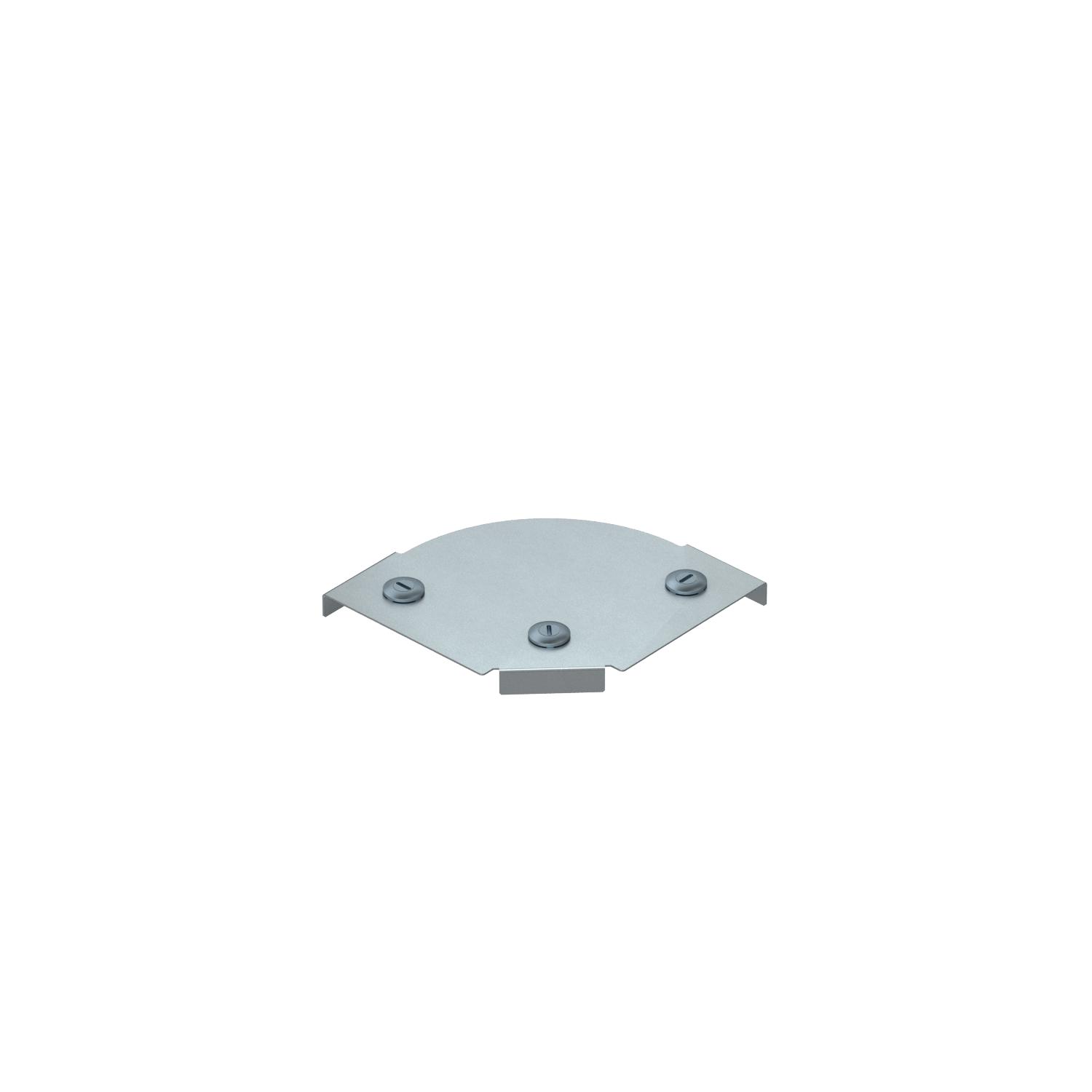

Product descriptionCover for 90° bend with pre-mounted turn buckles.
-
- Technical data
-
Technical data

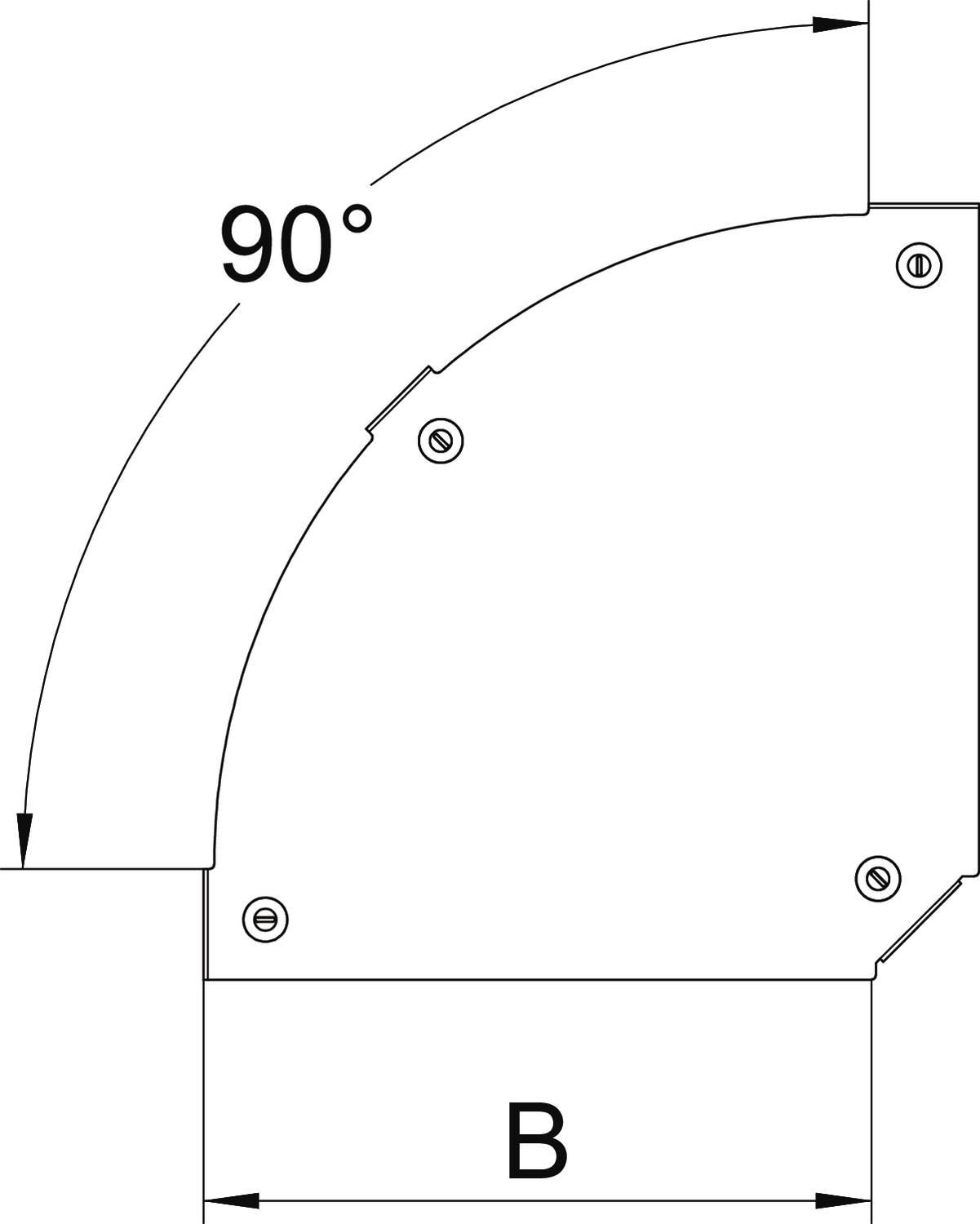

Bend (angle) 90° Change of direction Horizontal Colour zinc Dimension B=100mm Dimension B 100 mm Fastening type Sash lock Hinged no Maintain electrical functions no Material Steel Plate thickness 1,25 mm Plate thickness 0,05 in Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanised zinc/aluminium, Double Dip Width 100 mm Width 4 in - All types
- Downloads
-
Data sheet DFBM 90 100 DD / 7138540 , 0.17MB , pdfEU declaration of conformity DFBM 90 100 DD / 7138540 , 0.10MB , pdfREACH Declaration of conformity DFBM 90 100 DD / 7138540 , 0.12MB , pdfRoHS Declaration of conformity DFBM 90 100 DD / 7138540 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
