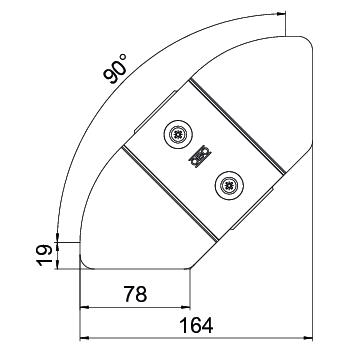

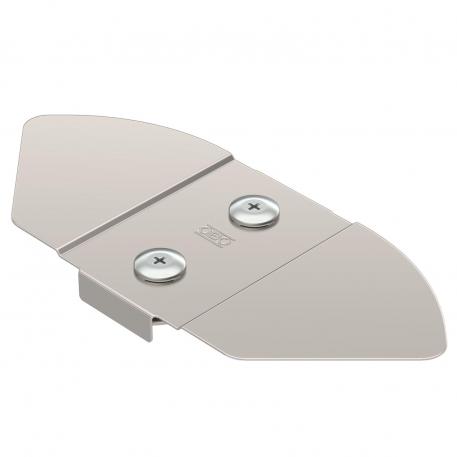

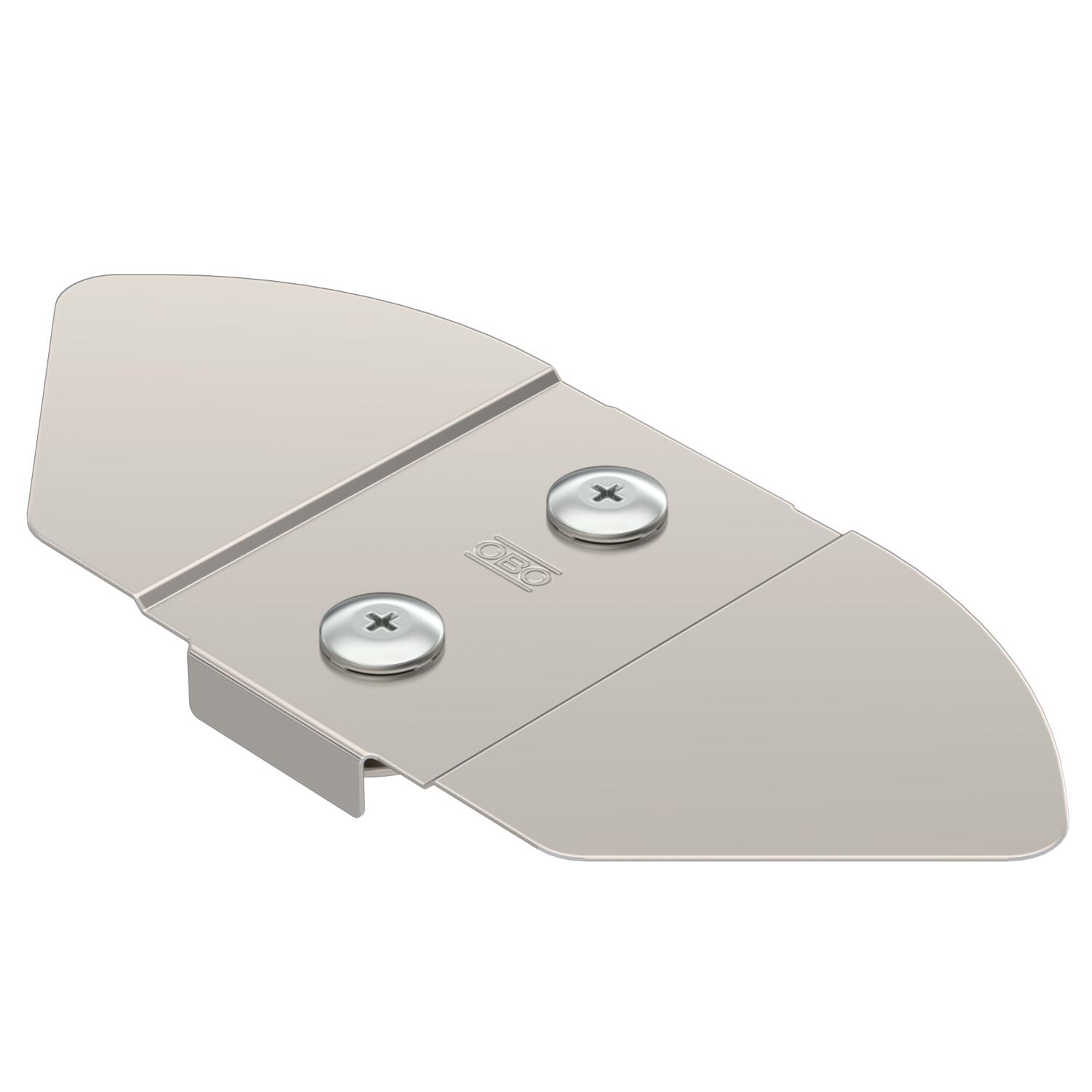

Cover, angle-adjustable bend A2
Item no. 6037560 | EAN 4012197407759
- Product description
-
Product descriptionCover for angle-adjustable bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash locks and through attachment of the section cover. Suitable for all side heights.
-
- Technical data
-
Technical data
Bend (angle) Adjustable Change of direction Horizontal CO2 Footprint (GWP) Cradle-to-Gate 1,7392 kg CO2e / 1 Piece Colour stainless steel Dimension B100mm Dimension B 100 mm Fastening type Sash lock Hinged no Maintain electrical functions no Material Stainless steel Number of turn buckles 2 St. Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,75 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Bright, treated Width 100 mm - All types
