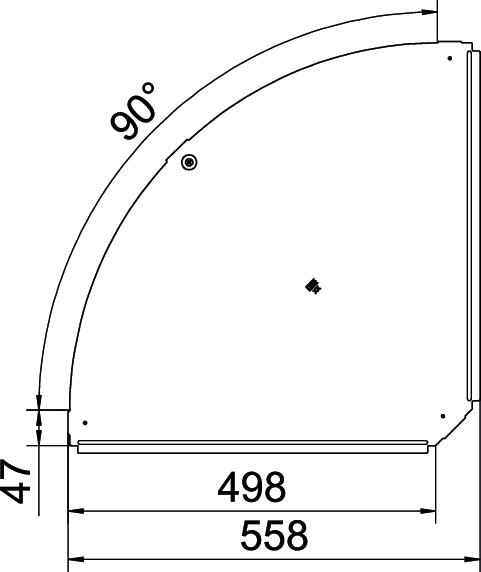

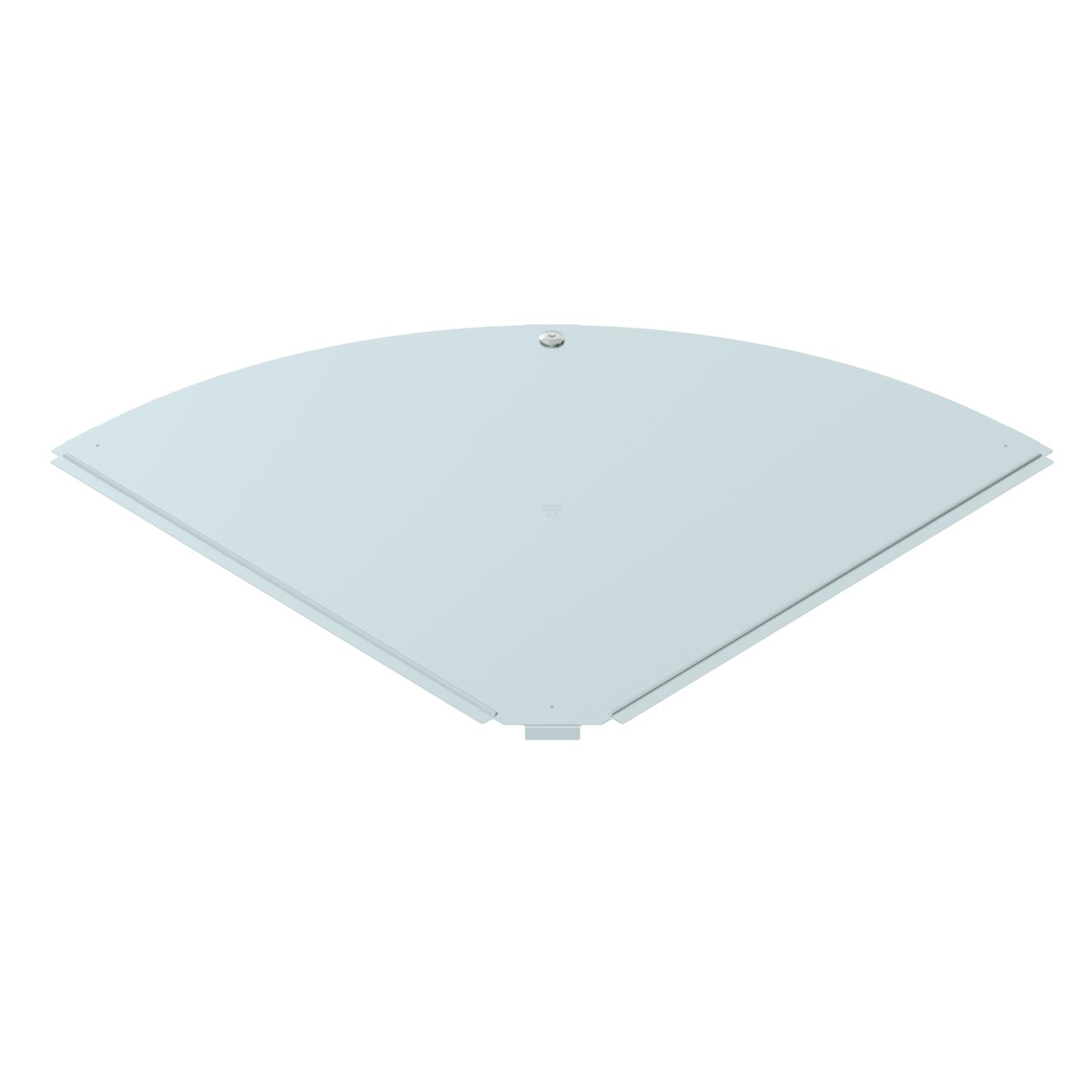

Cover, 90° bend DD

Item no. 6036960 | EAN 4012197405861

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for 90° bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash lock and through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
CO2 Footprint (GWP) Cradle-to-Gate	9,5222 kg CO2e / 1 Piece
Colour	zinc
Dimension	B500mm
Dimension B	500 mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no
Material	Steel

Number of turn buckles	1 St.
Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanised zinc/aluminium, Double Dip
Width	500 mm

All types

All types

Types	Width	Plate thickness	Item no.
RBD 90 100 DD	100 mm	0.75 mm	6036950
RBD 90 150 DD	150 mm	0.75 mm	6036952
RBD 90 200 DD	200 mm	0.75 mm	6036954
RBD 90 300 DD	300 mm	0.75 mm	6036956
RBD 90 400 DD	400 mm	1 mm	6036958
RBD 90 500 DD	500 mm	1 mm	6036960
RBD 90 600 DD	600 mm	1 mm	6036962
