Control T piece without thread

Item no. 2047592 | EAN 4012195957836

Product description
Product description

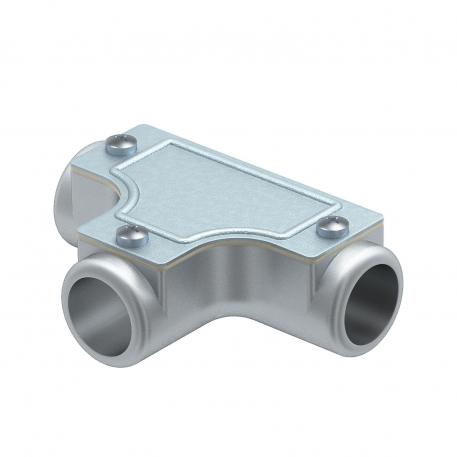

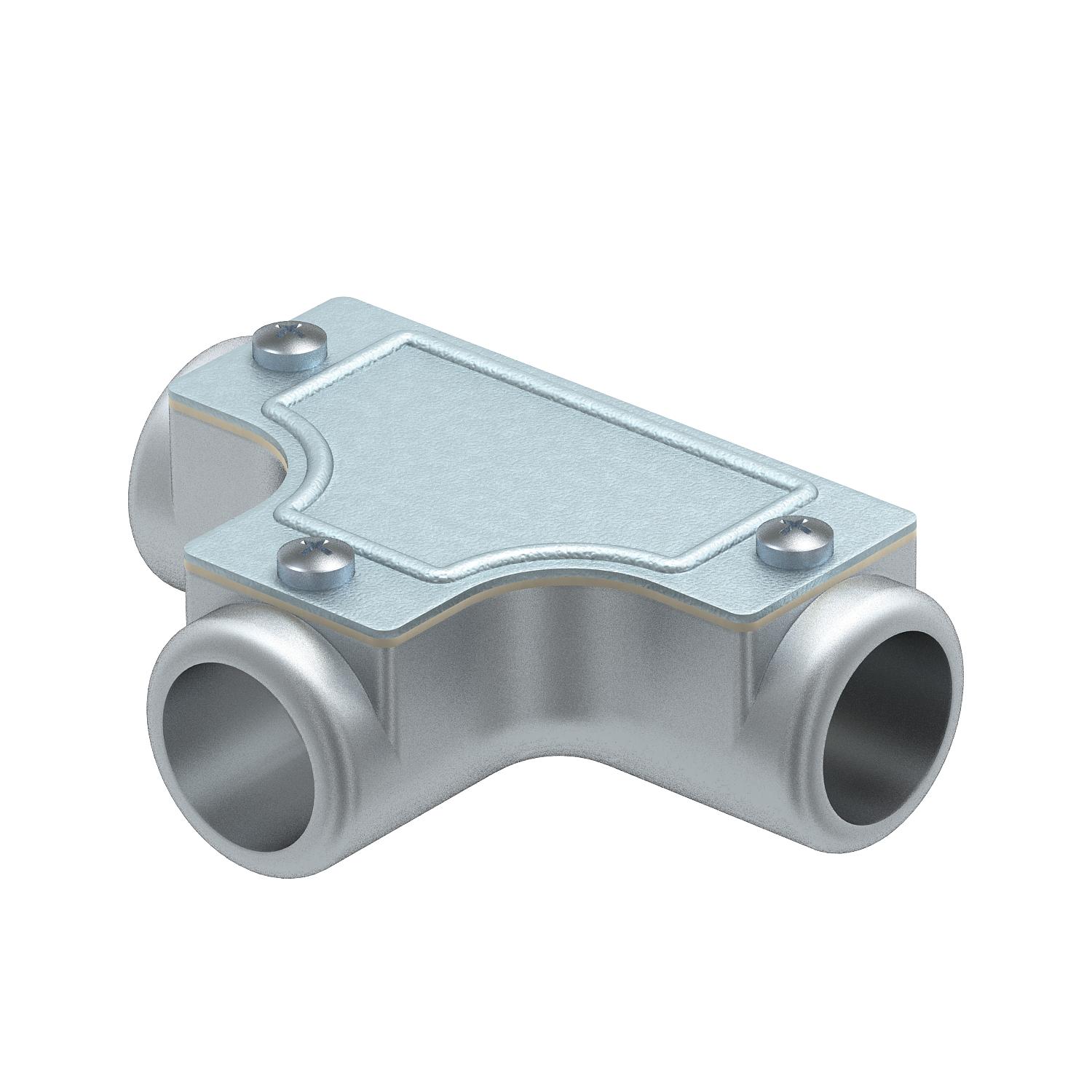

Die-cast aluminium T piece, for mounting in pipe sections as a junction.

Removable cover for easier cable routing and later checking.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
Technical data

Technical data

Brushed surface no
CO2 Footprint (GWP) Cradle-to-Gate 4,1314 kg CO₂e / 1 Piece

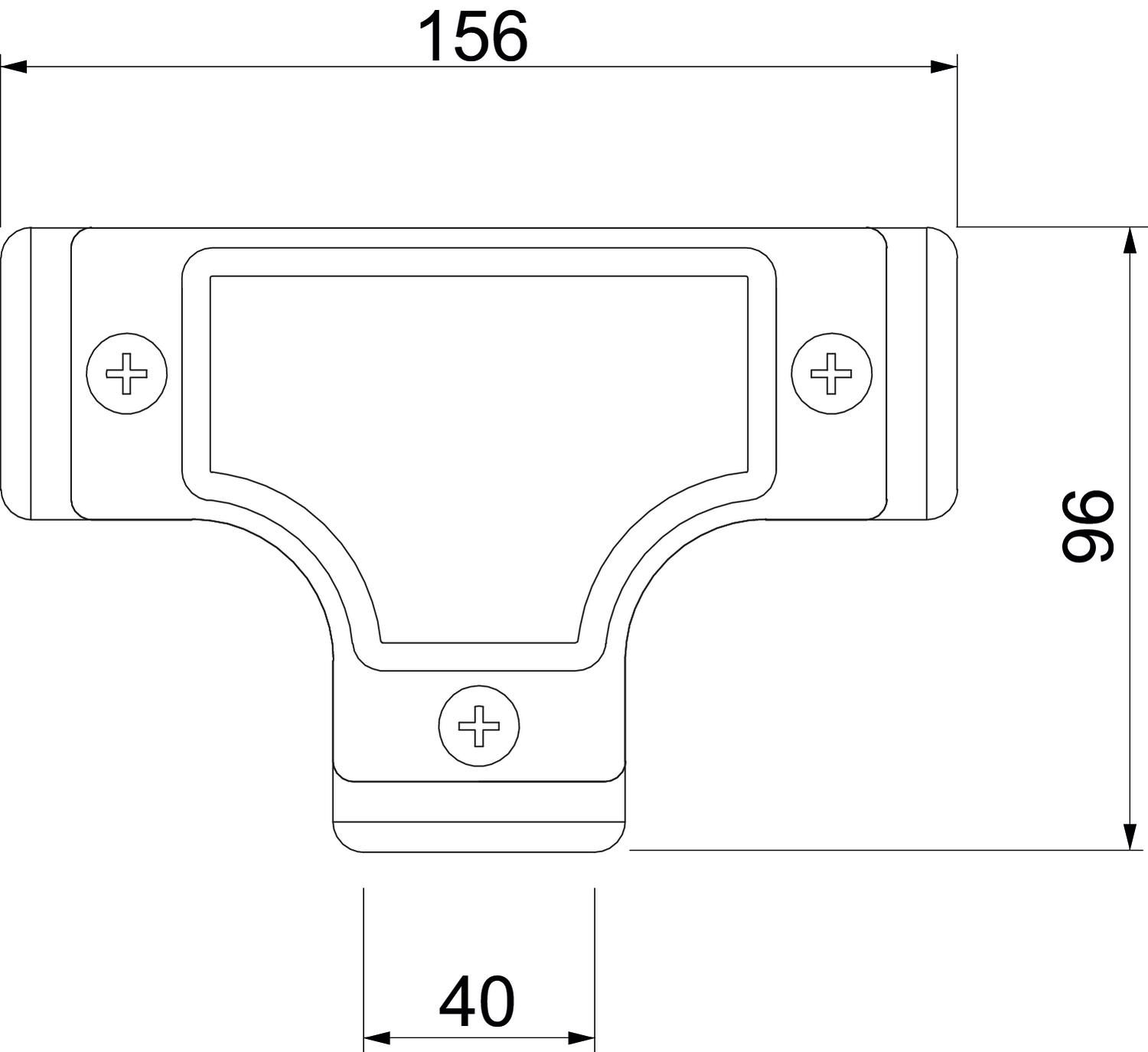

Dimension Ø40mm
Dimension D 96 mm
Dimension L 156 mm
Dimension l 40 mm
Halogen-free no
Length 156 mm
Material Cast aluminium
Polished surface no
Size 40
Version for Connector
All types

All types

Types Dimension D Dimension L Size Item no.
SKT16W ALU 47.5 mm 72 mm 16 2047588
SKT20W ALU 65 mm 102 mm 20 2047589
SKT25W ALU 75 mm 115 mm 25 2047590
SKT32W ALU 96 mm 156 mm 32 2047591
SKT40W ALU 96 mm 156 mm 40 2047592
SKT50W ALU 124.5 mm 194 mm 50 2047593
