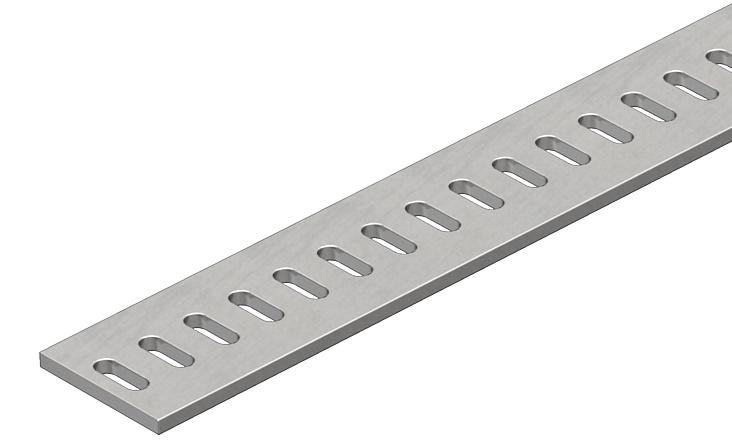

Construction and suspension profile FESP Q BK
Item no. 7104367 | EAN 4012196239719
- Product description
-
Product descriptionFlat iron profile with slots to create suspensions and support constructions.
-
- Technical data
-
Technical data

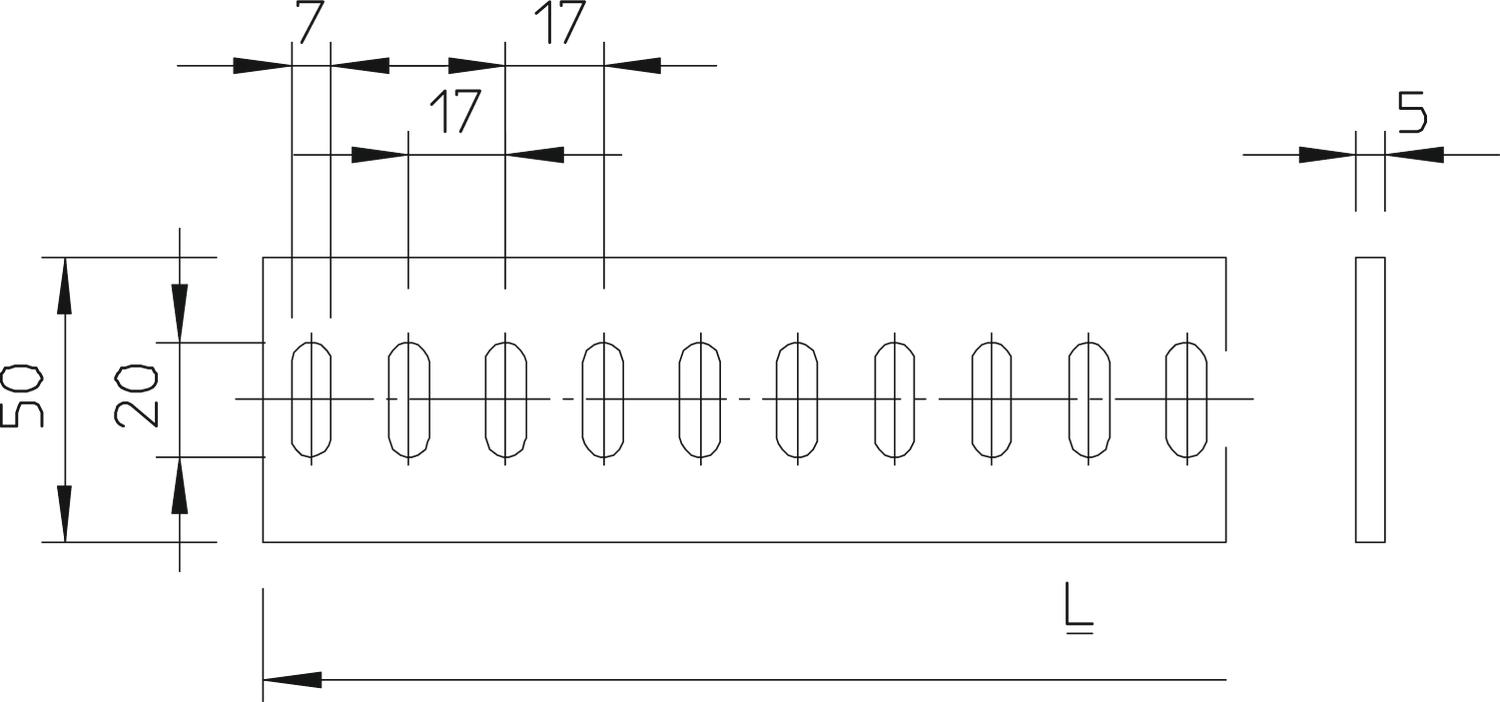

CO2 Footprint (GWP) Cradle-to-Gate 3,8826 kg CO2e / 1 Meter Dimension 50x3000x5 Height 5 mm Length 3000 mm Material Steel Plate thickness 5 mm Profile shape Flat profile Surface Bright Width 50 mm - All types
- Downloads
-
Data sheet FESP Q 50 5 BK / 7104367 , 0.12MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity FESP Q 50 5 BK / 7104367 , 0.11MB , pdfREACH Declaration of conformity FESP Q 50 5 BK / 7104367 , 0.12MB , pdfRoHS Declaration of conformity FESP Q 50 5 BK / 7104367 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
