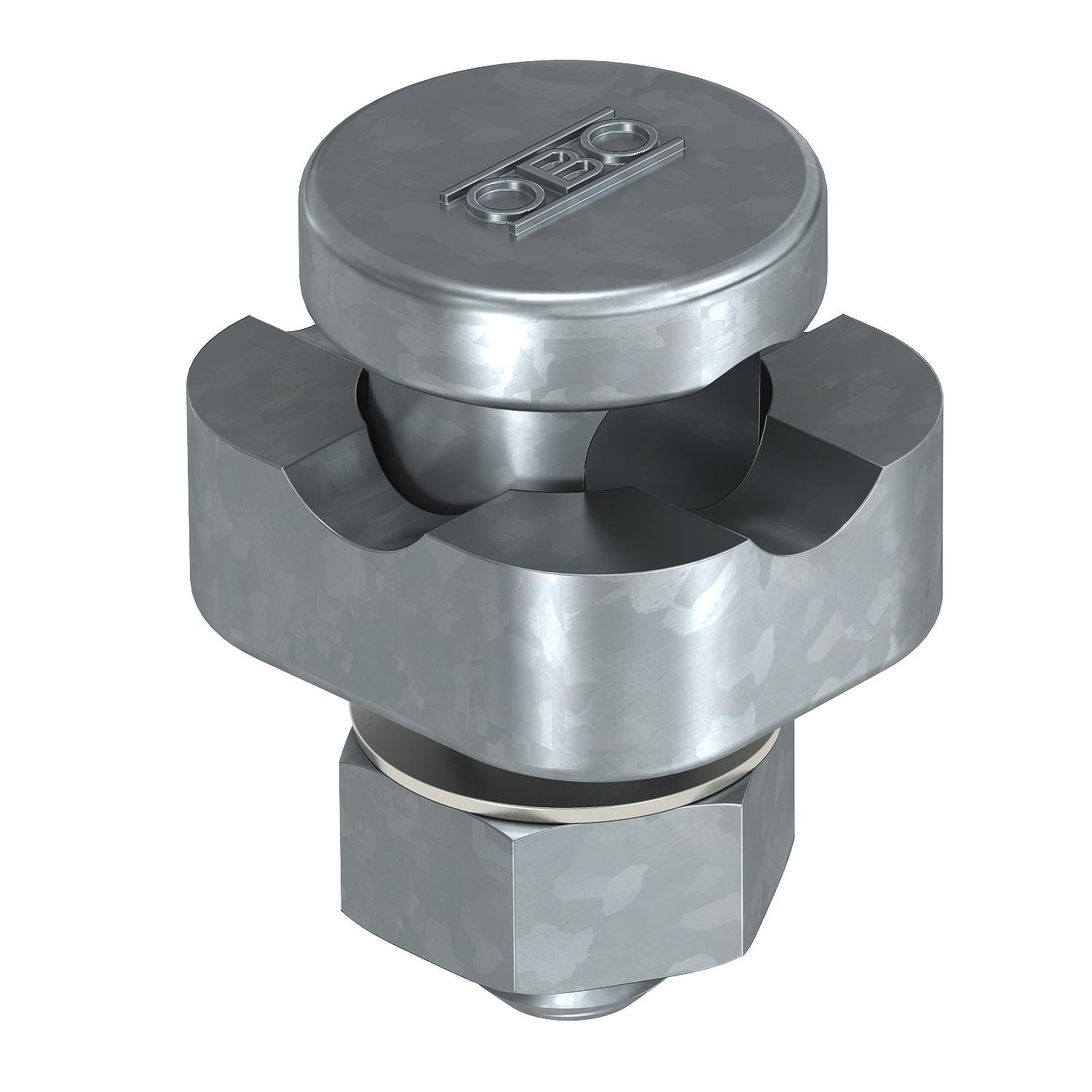

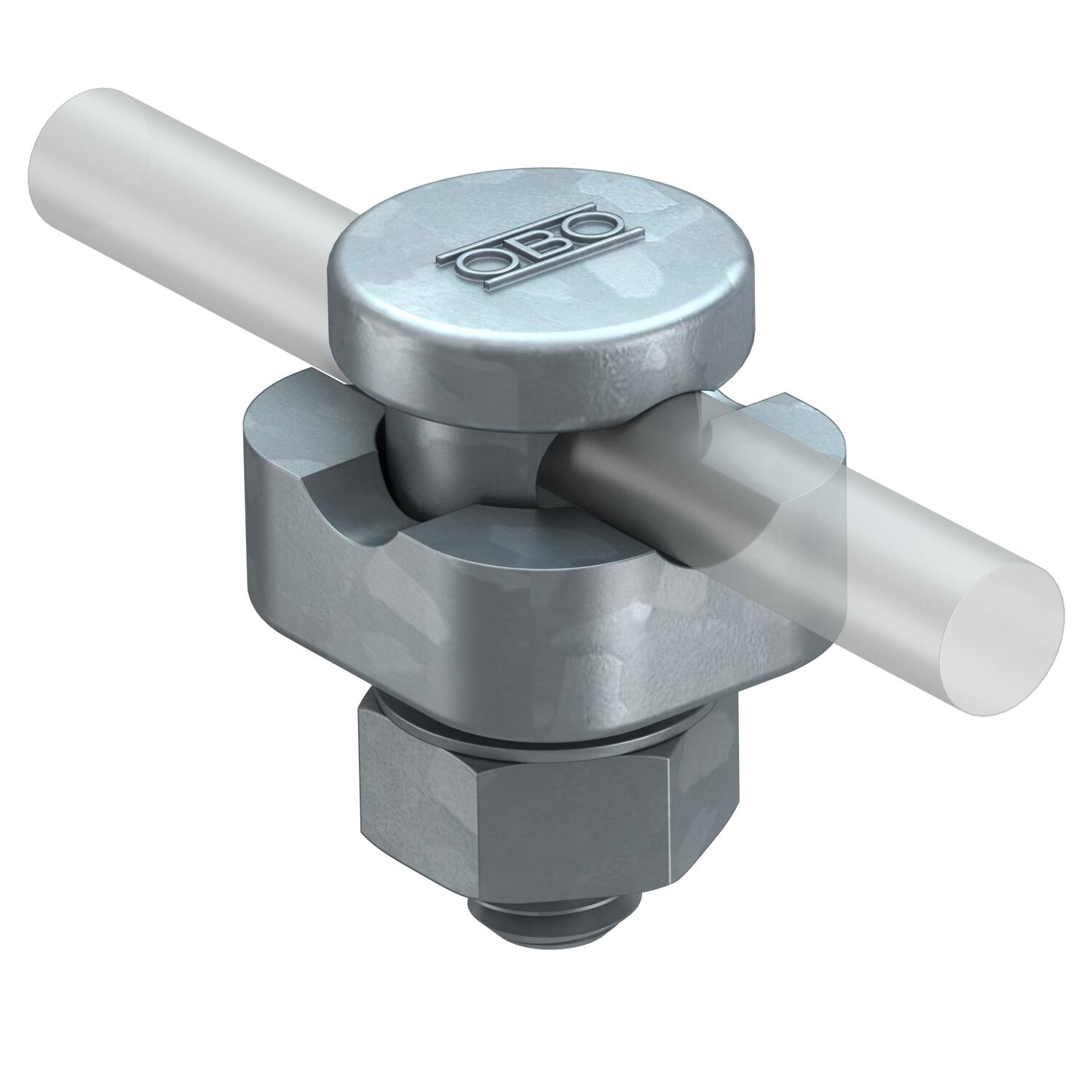

Connector Rd 8−10 mm, single
Item no. 5304105 | EAN 4012195415879
- Product description
-
Product description• With Fix-Kontakt clamping screw, nut and serrated washer
• With 10.2 mm drill hole
• With pre-mounted thrust piece made of die-cast zinc
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,2762 kg CO2e / 1 Piece Dimension 8-10mm Fit Rd 8-10 mm Height 25 mm Intermediate plate no Length 38 mm Lightning current carrying capacity H/100 kA Material Steel Suitable for connection Miscellaneous Surface Hot-dip galvanised Type of connector Connectors Type of fastening screw Clamping screw Width 28 mm - All types
- Downloads
-
Data sheet 5001 DIN-FT / 5304105 , 0.17MB , pdfEU declaration of conformity 5001 DIN-FT / 5304105 , 0.06MB , pdfREACH Declaration of conformity 5001 DIN-FT / 5304105 , 0.12MB , pdfRoHS Declaration of conformity 5001 DIN-FT / 5304105 , 0.12MB , pdf
