Connection thread sealing ring, metric 25.1 | 20 | 1.1

Connection thread sealing ring, metric

Item no. 2030012 | EAN 4012195375678

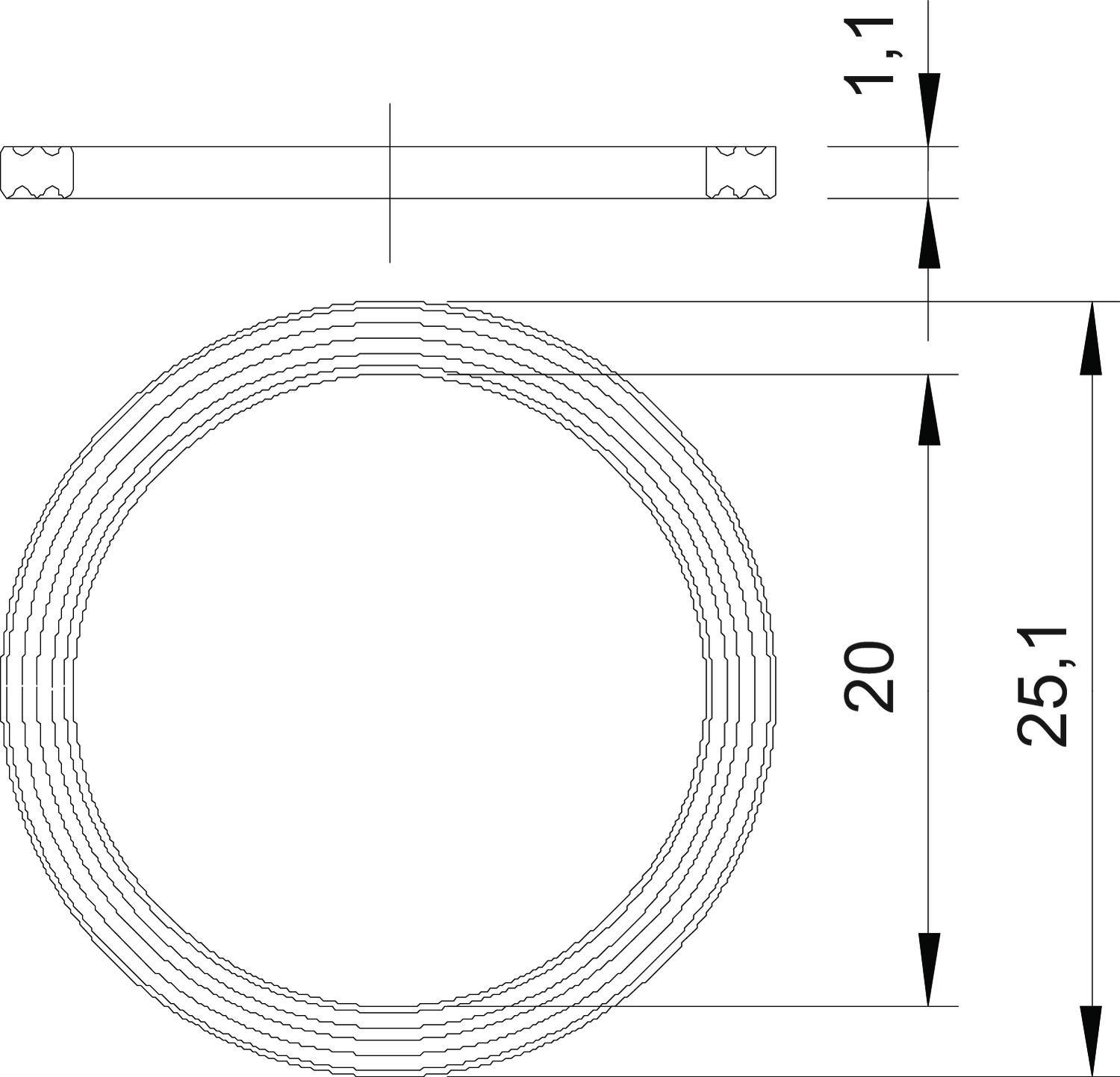

Item no. / Types

Dimension D1

Dimension D2

Dimension t

Product description

Product description

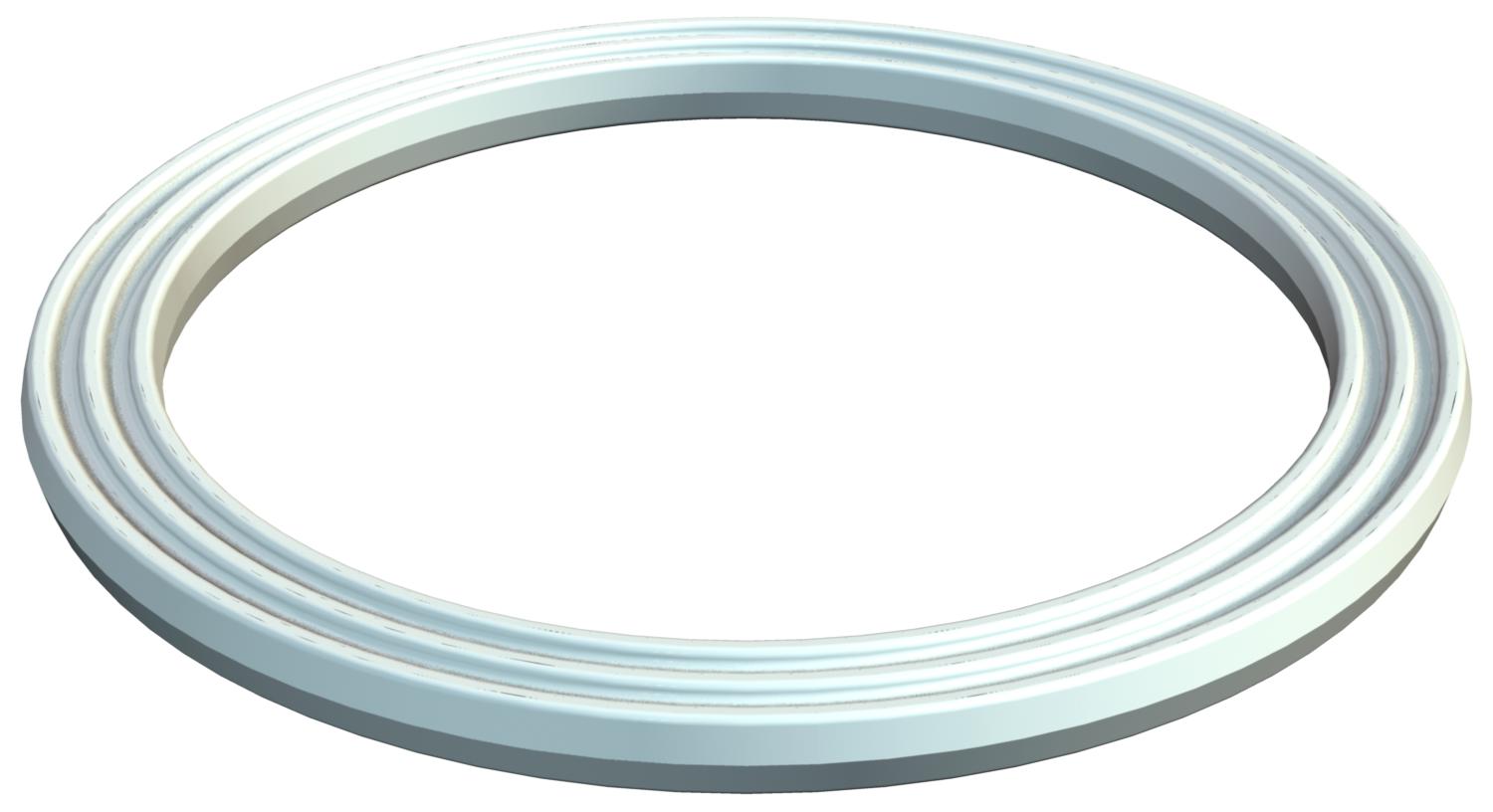

Connection thread sealing ring, suitable for all plastic cable glands, with metric thread according to DIN EN 60423 or ISO 68. The internal diameters of the sealing rings are designed in such a way that they can be pre-mounted in a captive manner.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0099 kg CO₂e / 1 Piece
Dimension	M20
Dimension D1	25,1 mm
Dimension D2	20 mm
Dimension t	1,1 mm
External diameter	25,1 mm

Inner diameter	20 mm
Material	Polyethylene
Suitable for metric thread dimension	20
Thickness	1,1 mm
Version for	Flat sealing ring

All types

All types

Types	Dimension D1	Dimension D2	Dimension t	Item no.
107 F M12 PE	16.3 mm	12 mm	1 mm	2030004
107 F M16 PE	20.9 mm	16 mm	1.1 mm	2030008
107 F M20 PE	25.1 mm	20 mm	1.1 mm	2030012
107 F M25 PE	31.3 mm	25 mm	1.4 mm	2030016
107 F M32 PE	37.6 mm	32 mm	1.7 mm	2030020
107 F M40 PE	49.1 mm	40 mm	1.7 mm	2030024
107 F M50 PE	60.1 mm	50 mm	2 mm	2030028
107 F M63 PE	73.8 mm	63 mm	2 mm	2030032
