Connection strap for Parex spark gap 17 | For M16 bolt

morepic-1

morepic-2

Connection strap for Parex spark gap

Item no. 5240336 | EAN 4012195413356

Item no. / Types

Drill hole diameter, min.

Version for

Product description

Product description

Attaching flange for installing OBO Parex spark gap 480 on insulating flanges.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,2287 kg CO2e / 1 Piece
Dimension	Ø17mm
Drill hole diameter, min.	17 mm

Material	Steel
Surface	Hot galvanized
Version for	For M16 bolt

All types

All types

Types	Drill hole diameter, min.	Version for	Item no.
485 M10	11 mm	For M10 bolt	5240301
485 M12	13 mm	For M12 bolt	5240328
485 M16	17 mm	For M16 bolt	5240336

Downloads

Data sheet 485 M16 / 5240336 , 0.16MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue Surge protection , 28.42MB , pdf

Product graphic 485 M16 / 5240336, 137.59 kB, jpg

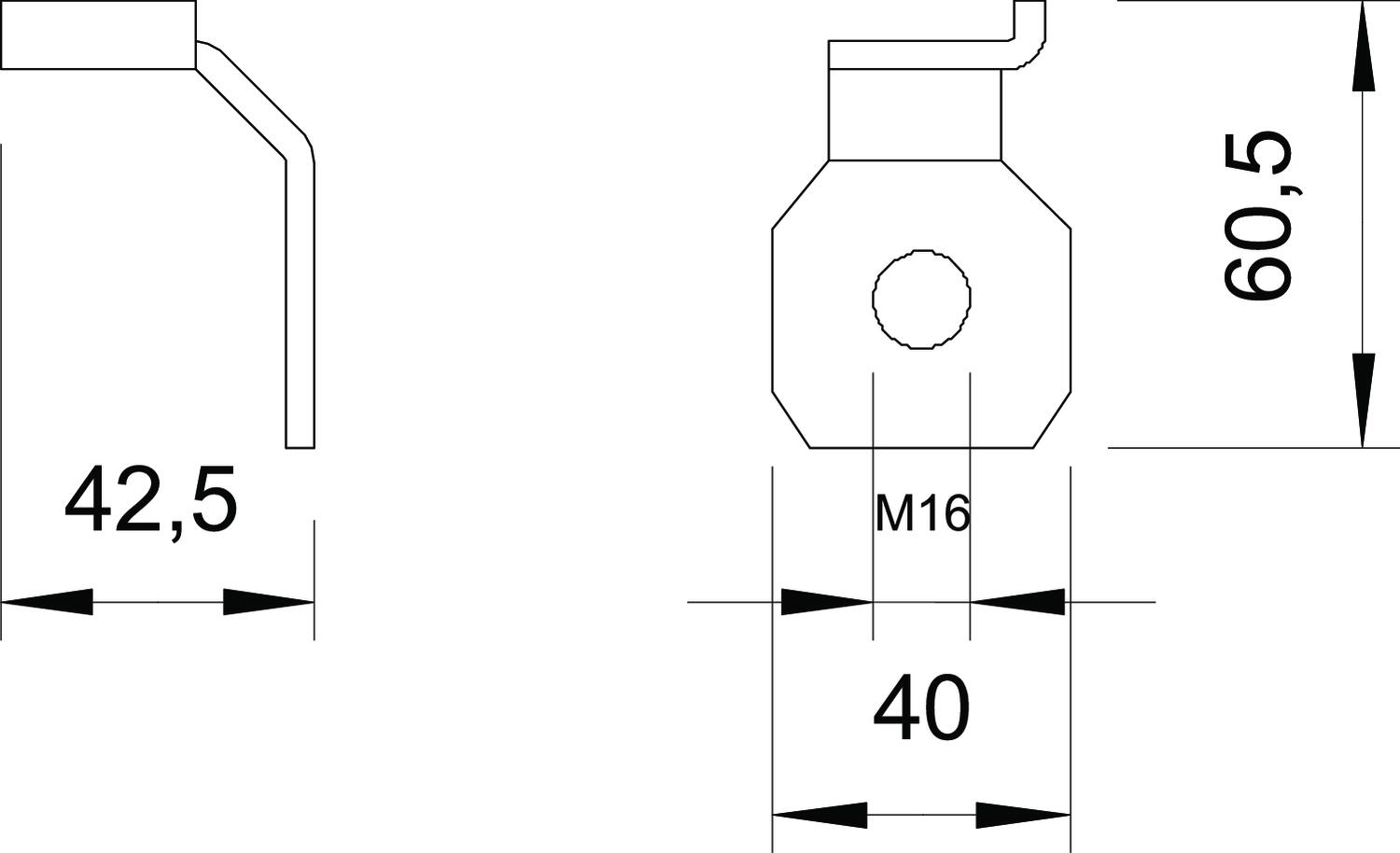

Scale drawing 485 M16 / 5240336, 44.47 kB, jpg

485 M16 / 5240336
