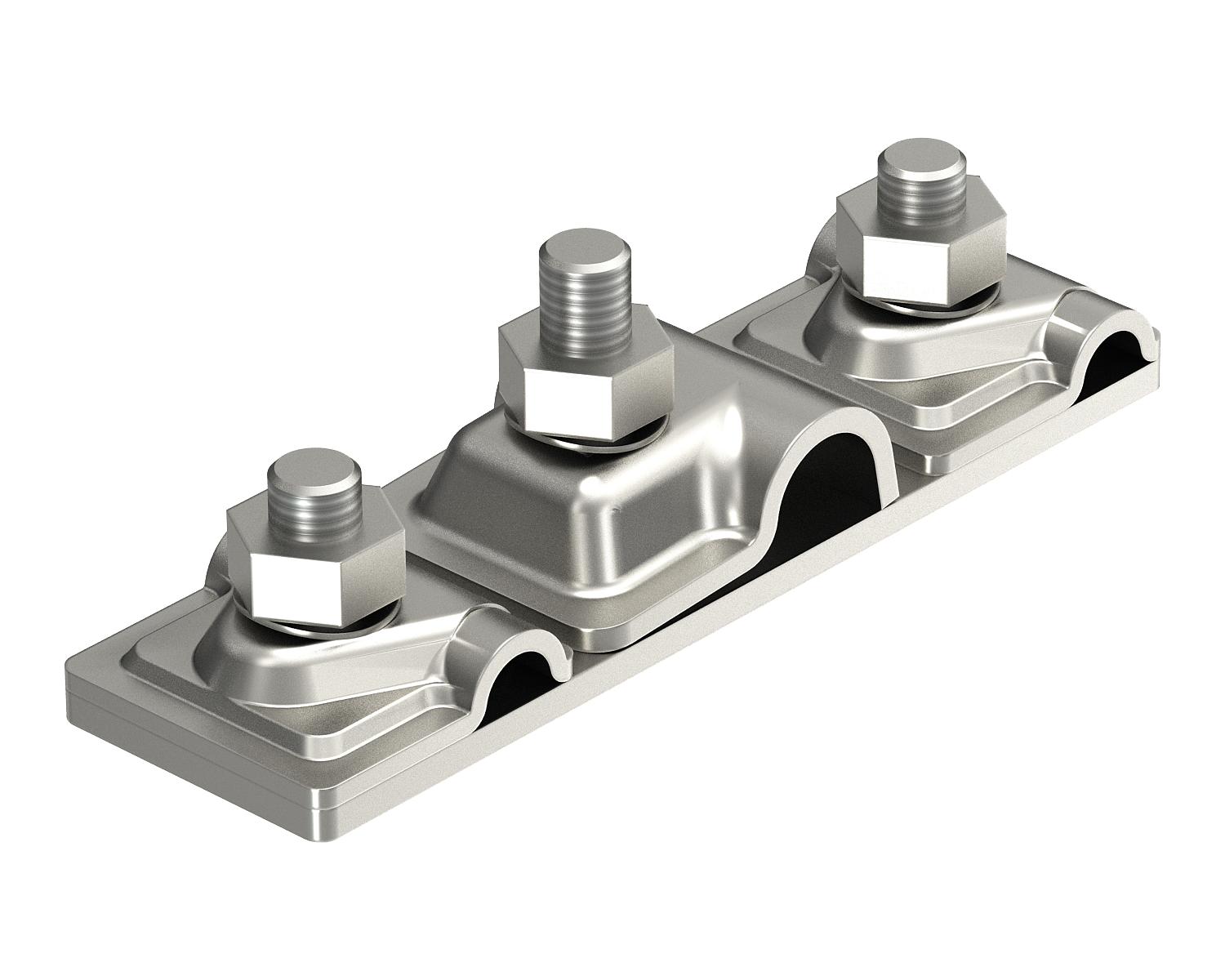

Connection plate for two isCon® conductors
Item no. 5408028 | EAN 4012195674702
- Product description
-

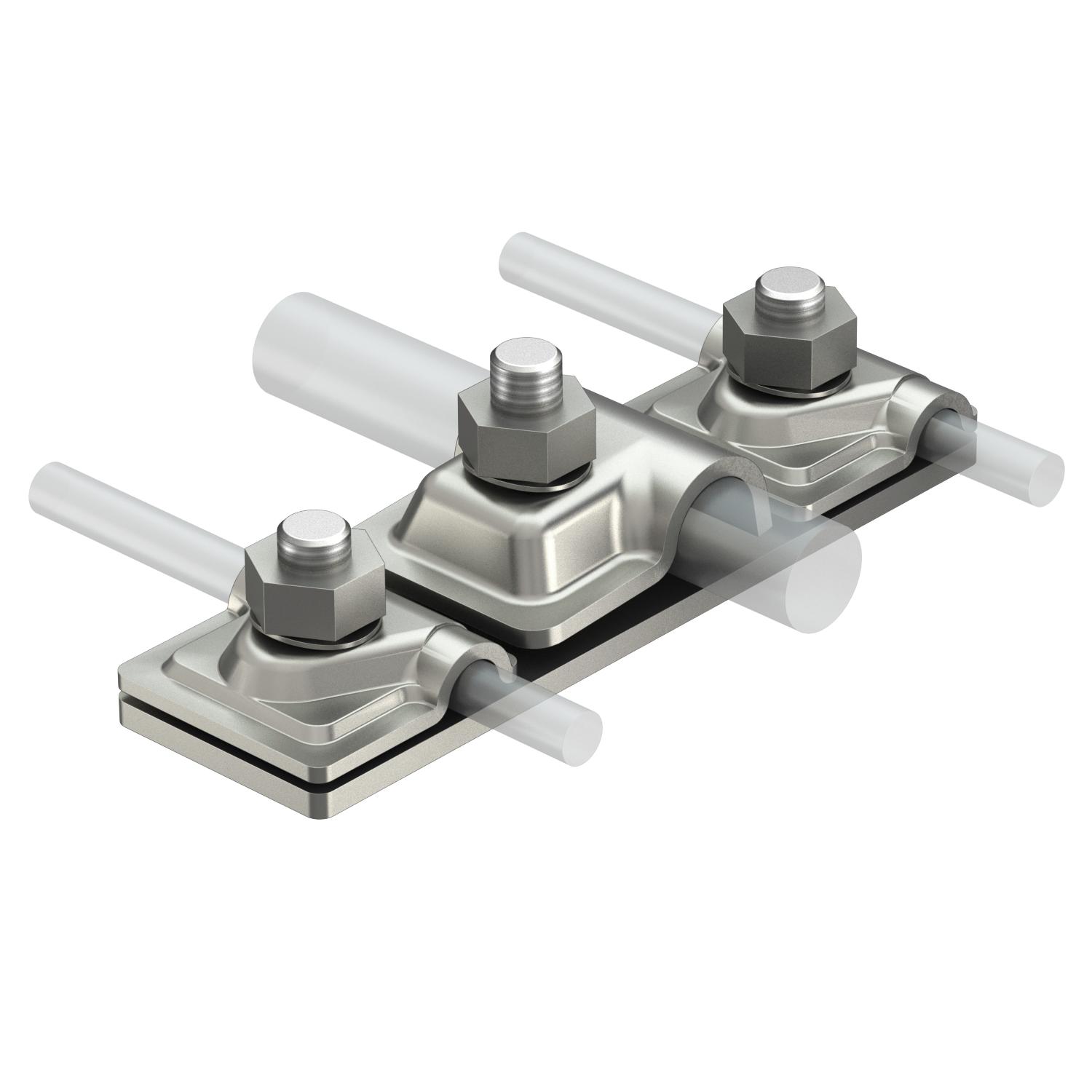

Product descriptionConnection plate to connect two isCon® conductors with air-termination rod Ø 16 mm, tested up to 150 kA (lightning protection class II)
-
- Technical data
-
Technical data

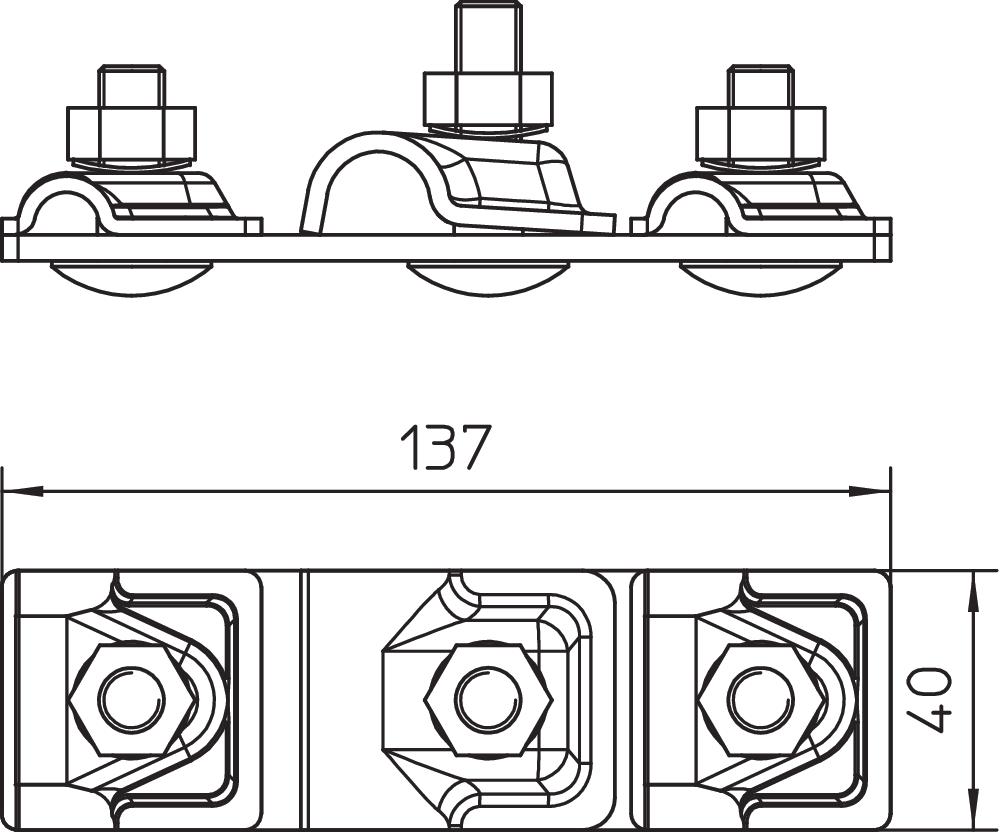

CO2 Footprint (GWP) Cradle-to-Gate 2,5555 kg CO2e / 1 Piece Connection Round conductor Dimension 16x8-10mm Fit Rd 8-10 x Rd 16 mm Lightning current carrying capacity H1/150 kA Material Stainless steel - All types
- Downloads
-
Data sheet isCon AP2-16 VA / 5408028 , 0.15MB , pdfEU declaration of conformity isCon AP2-16 VA / 5408028 , 0.06MB , pdfREACH Declaration of conformity isCon AP2-16 VA / 5408028 , 0.12MB , pdfRoHS Declaration of conformity isCon AP2-16 VA / 5408028 , 0.12MB , pdfMounting instructions Extended mounting instructions, long isCon® , 6.11MB , pdf
