Connection lug/earth entry rod made of stainless steel (V4A) 2000 | 10
morepic-1 morepic-2 video-1

Connection lug/earth entry rod made of stainless steel (V4A)

Item no. 5430720 | EAN 4012196456161

5430720 / AF RD 10 V4A
2000 mm
10 mm
Product description
Product description
• According to DIN EN 62561-2 (VDE 0185-561-2)

• Corresponds to the requirements of VDE 0185-305 (IEC 62305)

• RD 10-V4A for applications in the earth

• According to the foundation earth electrode standard DIN 18014, V4A is required in the earth
  • Lightning current-tested
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 5,8331 kg CO2e / 1 Piece
Cross-section 75 mm²

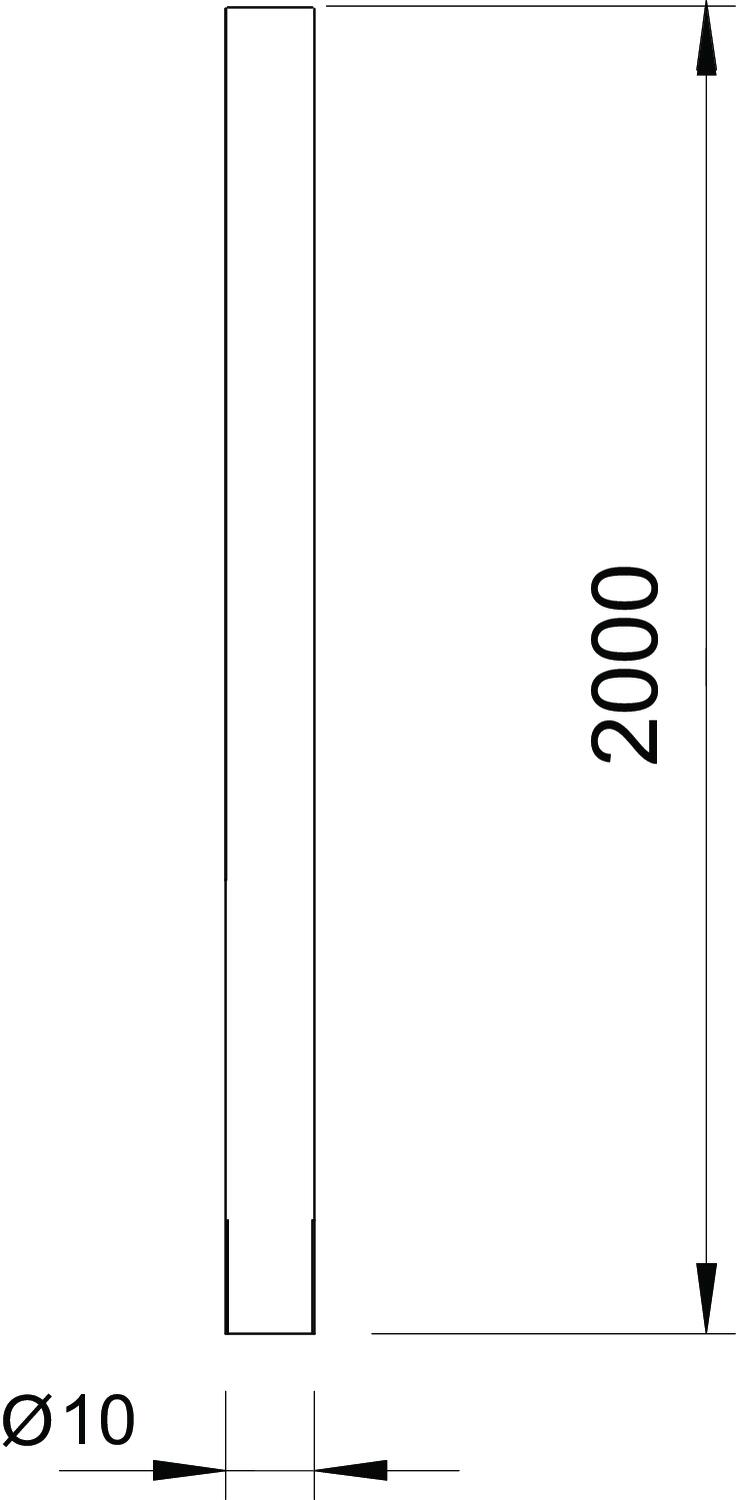

Dimension 2000mm
Dimension L 2000 mm
Length 2000 mm
Material Stainless steel
Nominal size Ø 10 mm
With attaching holes no
All types

All types

Types Length Nominal size Ø Item no.
AF RD 10 V4A 2000 mm 10 mm 5430720
Accessories

Mounting accessories

Products Types Item no.
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4 Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4 252 8-10x16 V4A 5312346
Universal separating piece A2 Universal separating piece A2 226 VA 5336058
