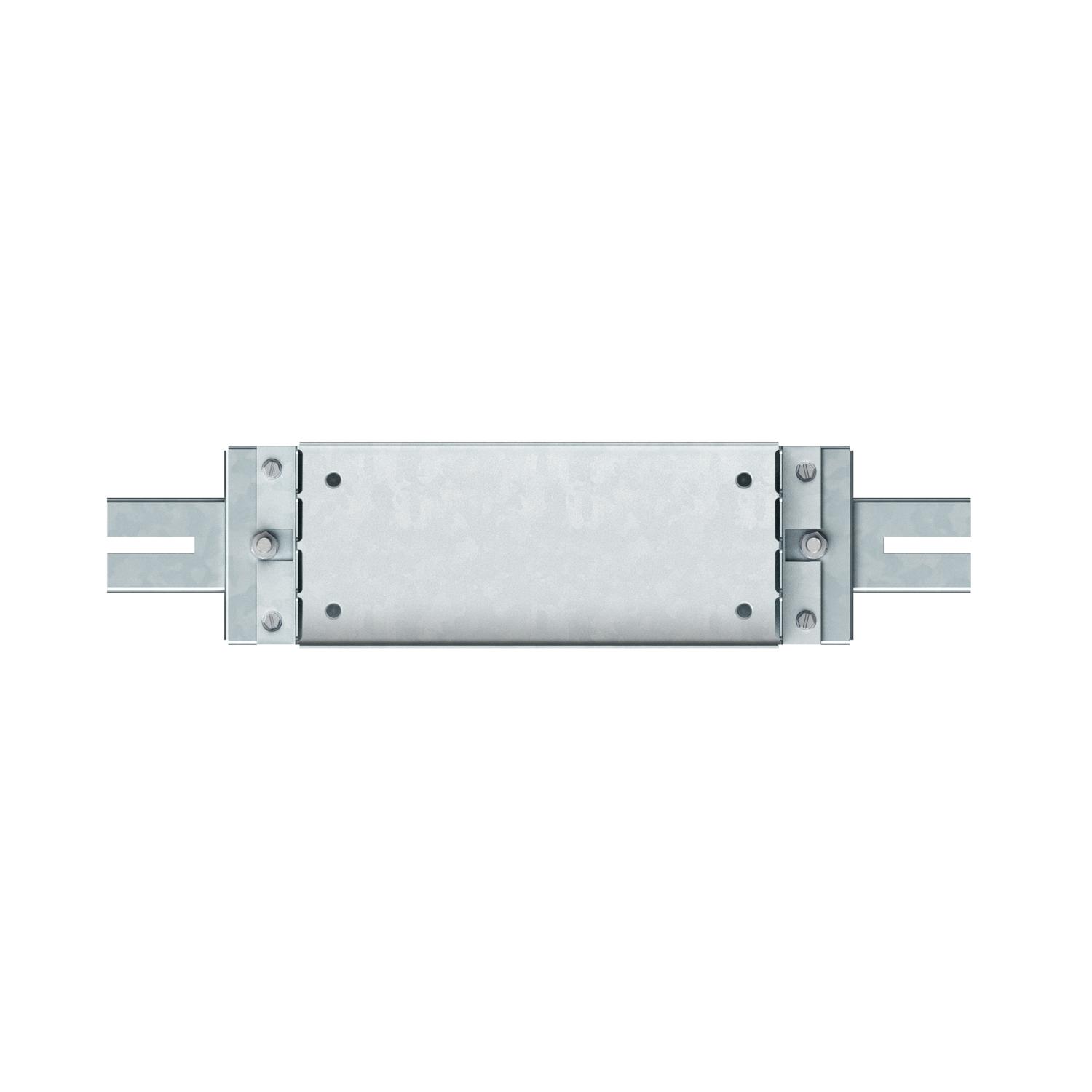

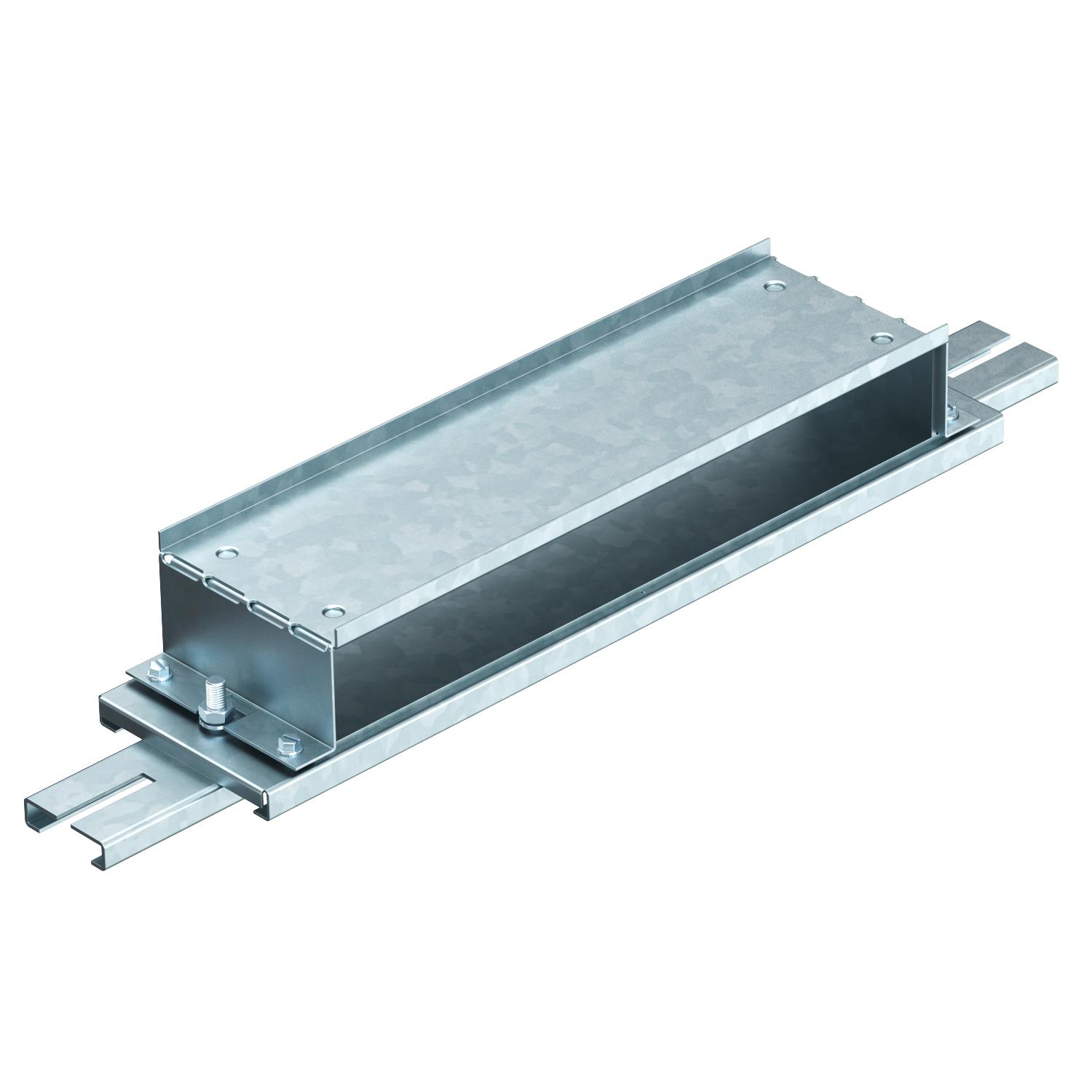

Connection element 48 mm

Item no. / Types

Width	105 mm

Trunking width, min.

Duct height, min.	48 mm

Product description

Product description

To connect underfloor installation ducts with in-concrete applications. With two adjustable placements for IBNEV height-adjustment units.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	5,5028 kg CO2e / 1 Piece

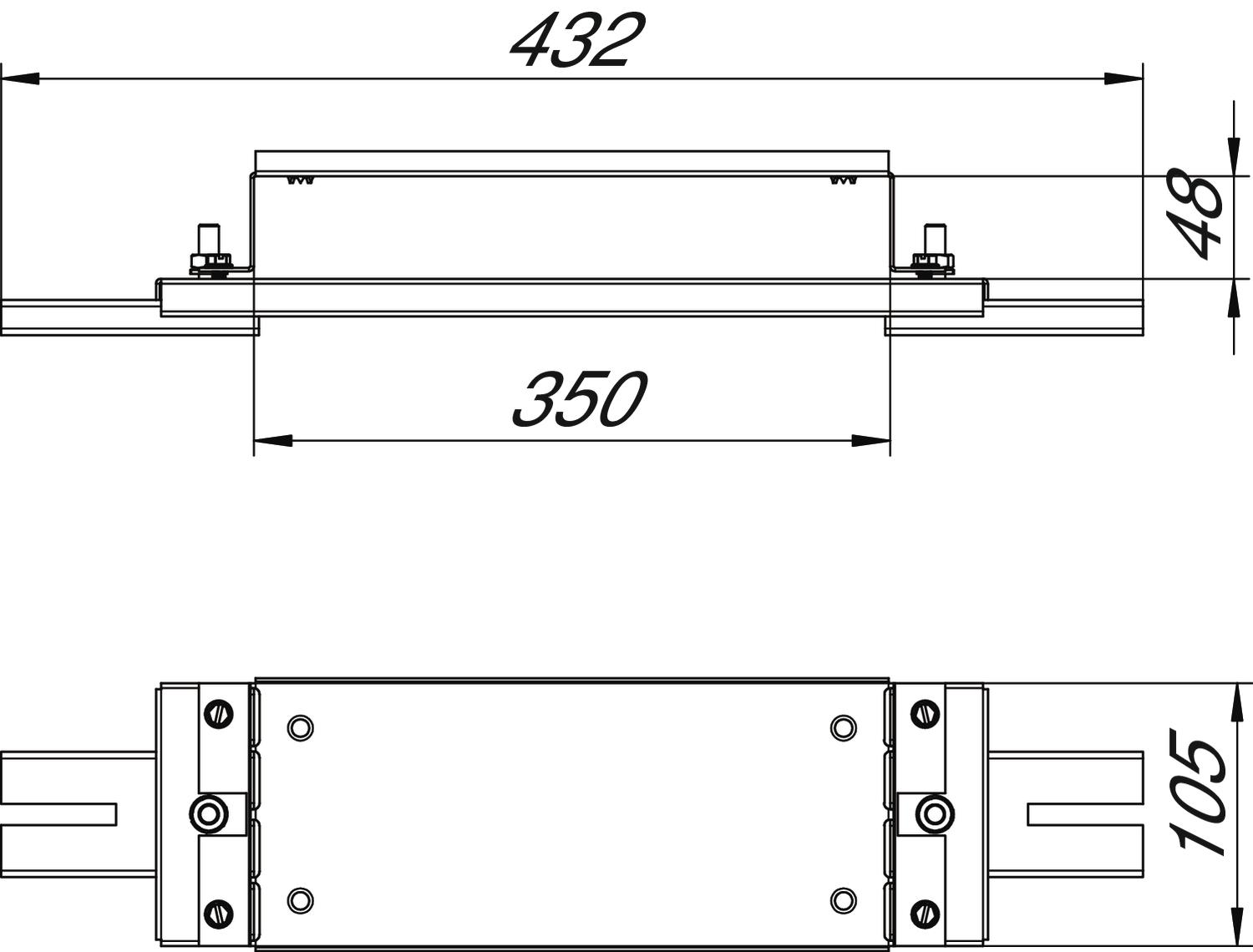

Dimension B	380 mm
Dimension h	48 mm
Duct height, min.	48 mm
Height	86 mm
Length	432 mm
Material	Steel

Suitable for expansion joint	no
Surface	Strip galvanized
Trunking width, min.	350 mm
Version for	Strap
Width	105 mm
With equipotential bonding	yes

All types

All types

Types	Width	Trunking width, min.	Duct height, min.	Item no.
IBVE 25048	105 mm	250 mm	48 mm	7399892
IBVE 35048	105 mm	350 mm	48 mm	7399898
