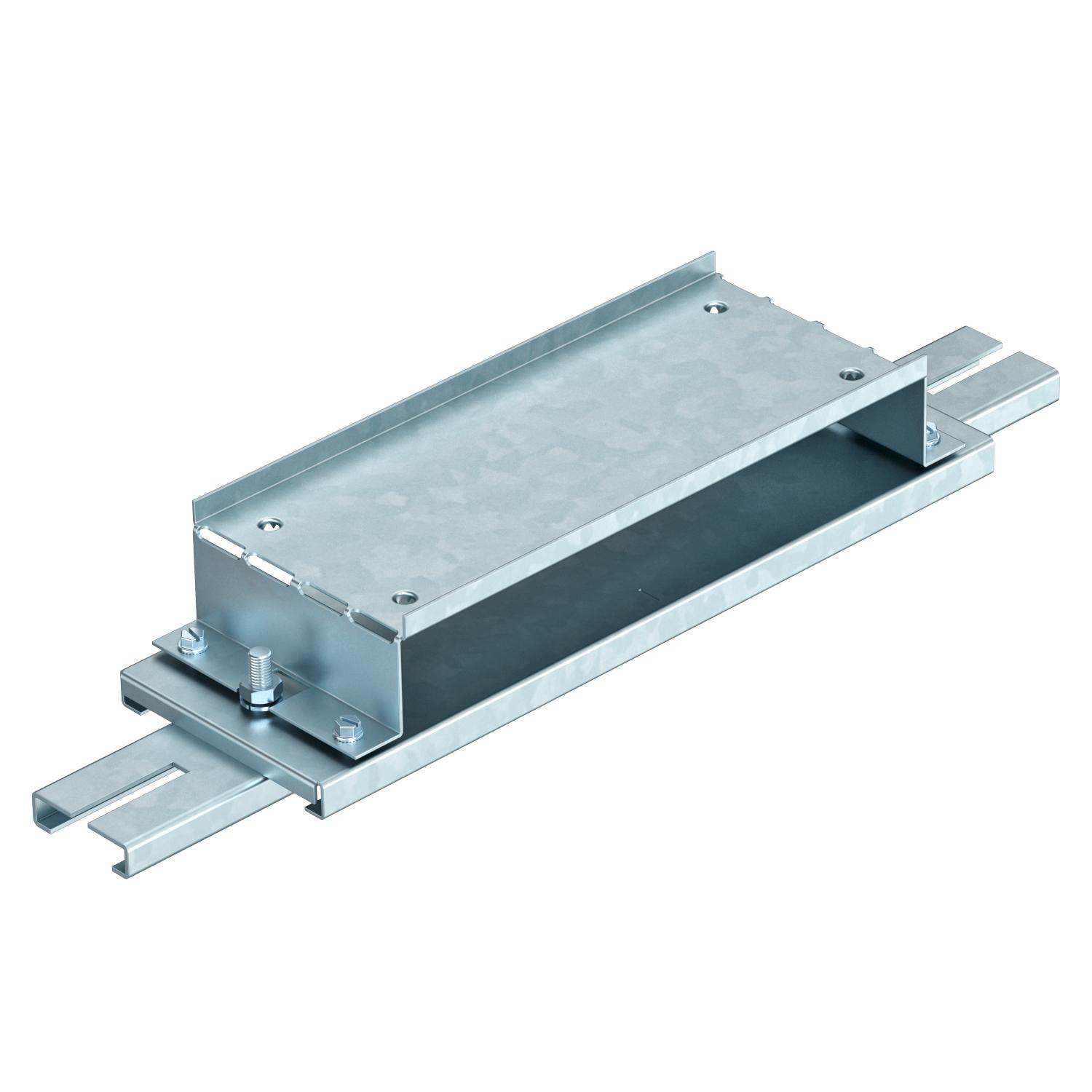

Connection element 38 mm

Item no. / Types

Width	105 mm

Trunking width, min.

Duct height, min.	38 mm

Product description

Product description

To connect underfloor installation ducts with in-concrete applications. With two adjustable placements for IBNEV height-adjustment units.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	4,0954 kg CO2e / 1 Piece

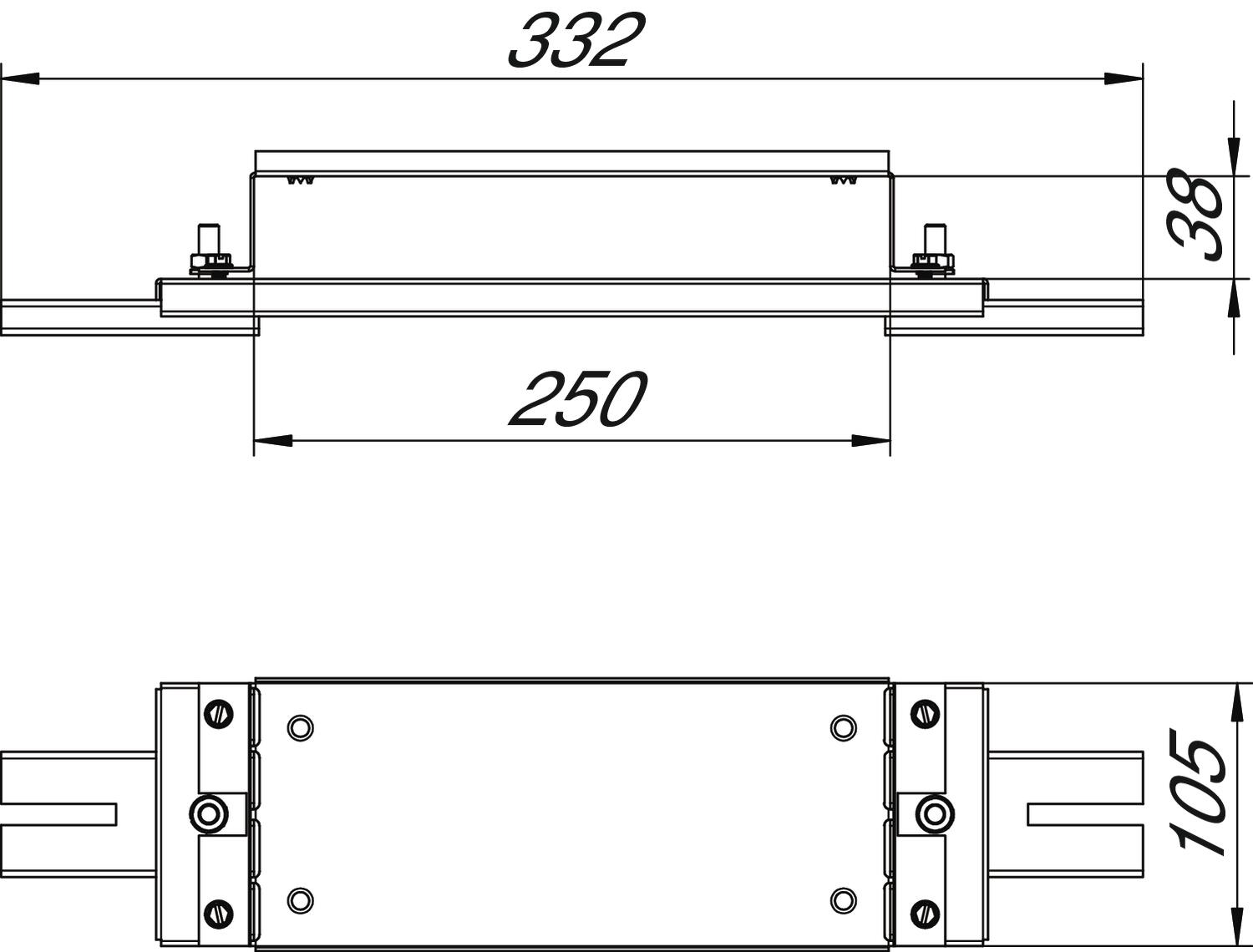

Dimension B	250 mm
Dimension h	38 mm
Duct height, min.	38 mm
Height	76 mm
Length	332 mm
Material	Steel

Suitable for expansion joint	no
Surface	Strip galvanized
Trunking width, min.	250 mm
Version for	Strap
Width	105 mm
With equipotential bonding	yes

All types

All types

Types	Width	Trunking width, min.	Duct height, min.	Item no.
IBVE 25038	105 mm	250 mm	38 mm	7399890
IBVE 35038	105 mm	350 mm	38 mm	7399896

Downloads

Data sheet IBVE 25038 / 7399890 , 0.17MB , pdf

Download

Catalogue Floor installation systems and Underfloor applications , 42.28MB , pdf

Download

Download

Mounting instructions In-concrete system IBK , 3.27MB , pdf

IBVE 25038 / 7399890
