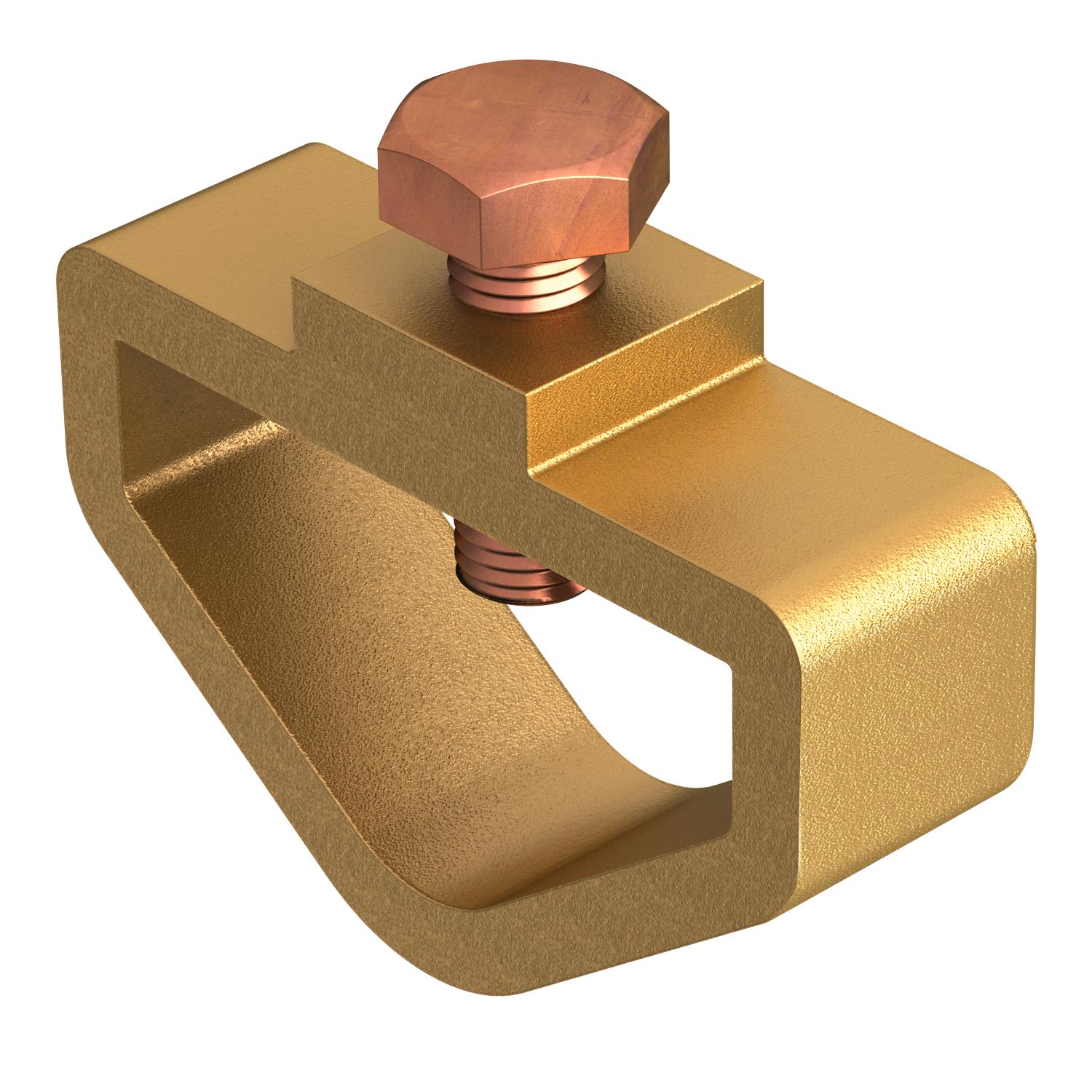

Connection clamp
Item no. 5001592 | EAN 4012196431212
- Product description
-
Product description• For connection of the copper-plated earth rod, type 219 16 CU, to conductor material
• Type A terminal
- Technical data
-
Technical data

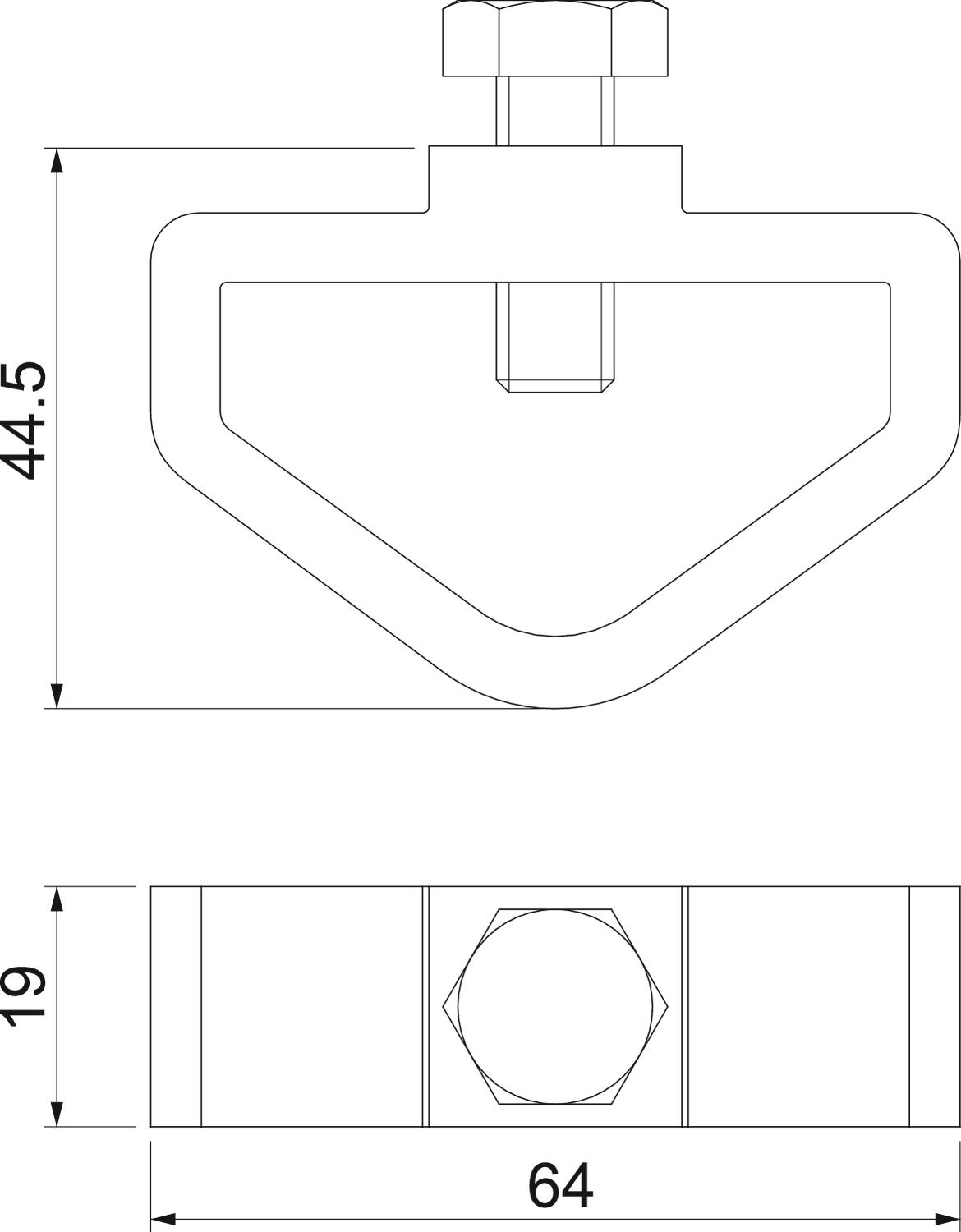

CO2 Footprint (GWP) Cradle-to-Gate 0,5862 kg CO2e / 1 Piece Connection Flat conductor Dimension 64x19x45 Fit Rd 14,2/ FL max. 40 x 12 mm Height 19 mm Intermediate plate no Length 64 mm Material Red bronze Type Connection sleeve Type of connector Connectors Width 57 mm - All types
- Downloads
-
Data sheet 2745 16 30 / 5001592 , 0.23MB , pdfEU declaration of conformity 2745 16 30 / 5001592 , 0.06MB , pdfREACH Declaration of conformity 2745 16 30 / 5001592 , 0.12MB , pdfRoHS Declaration of conformity 2745 16 30 / 5001592 , 0.13MB , pdf
