Connection and end piece A4
Item no. 5334934 | EAN 4012195629115
- Product description
-

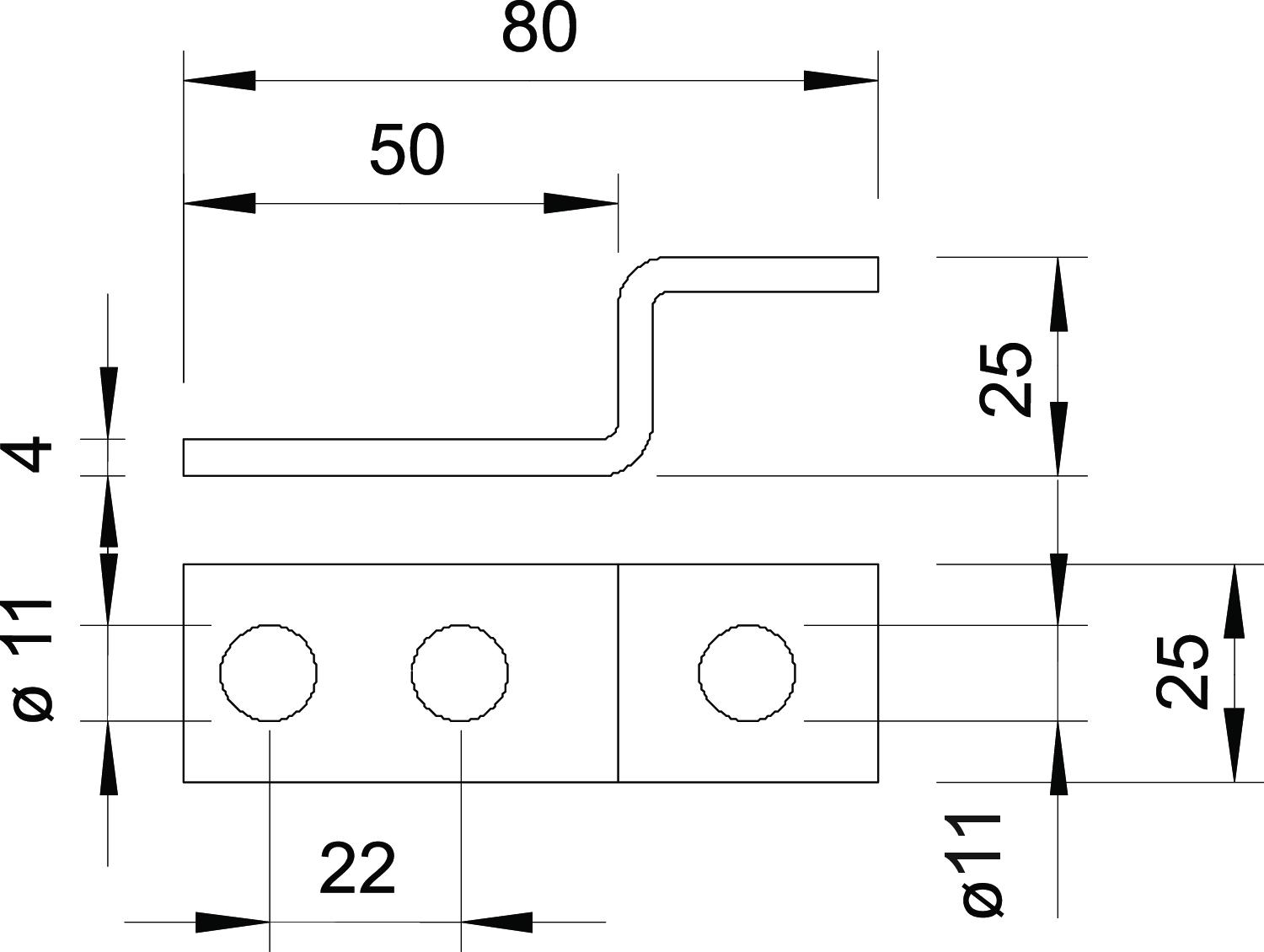

Product description• For attaching to steel structures or bolting to fixed earthing terminals
• For attachments: Round conductor Rd 8-10 and flat conductor FL 30 x 3.5
• 2 attaching holes Ø 11 mm
• 1 attaching hole Ø D mm
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,3945 kg CO2e / 1 Piece Dimension M10 Dimension d min. 11 mm Intermediate plate no Material Stainless steel Suitable for connection Round conductor Rd 8-10 / flat conductor Fl 30 Type of connector End piece Type of fastening screw Miscellaneous - All types
- Downloads
-
Data sheet 5011 VA M10 / 5334934 , 0.13MB , pdfEU declaration of conformity 5011 VA M10 / 5334934 , 0.06MB , pdfREACH Declaration of conformity 5011 VA M10 / 5334934 , 0.12MB , pdfRoHS Declaration of conformity 5011 VA M10 / 5334934 , 0.12MB , pdf
