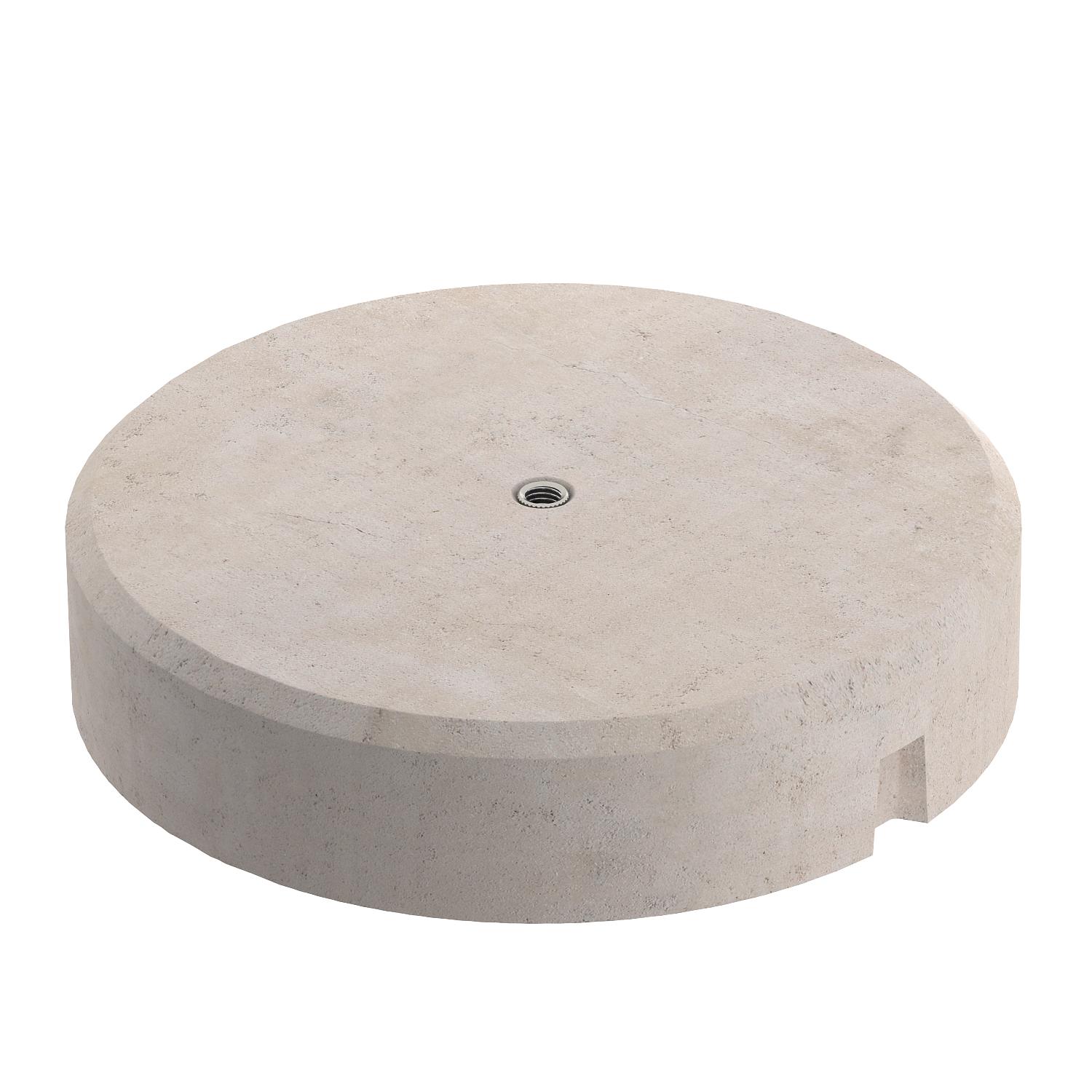

Concrete base min. 16 kg with female thread
Item no. 5402958 | EAN 4012196389766
- Product description
-
Product description• Weight min. 16 kg
• Frost-resistant concrete
• Female thread M16
• Recommended air-termination rod length max. 3.0 m, depending on wind load zone
- Technical data
-
Technical data

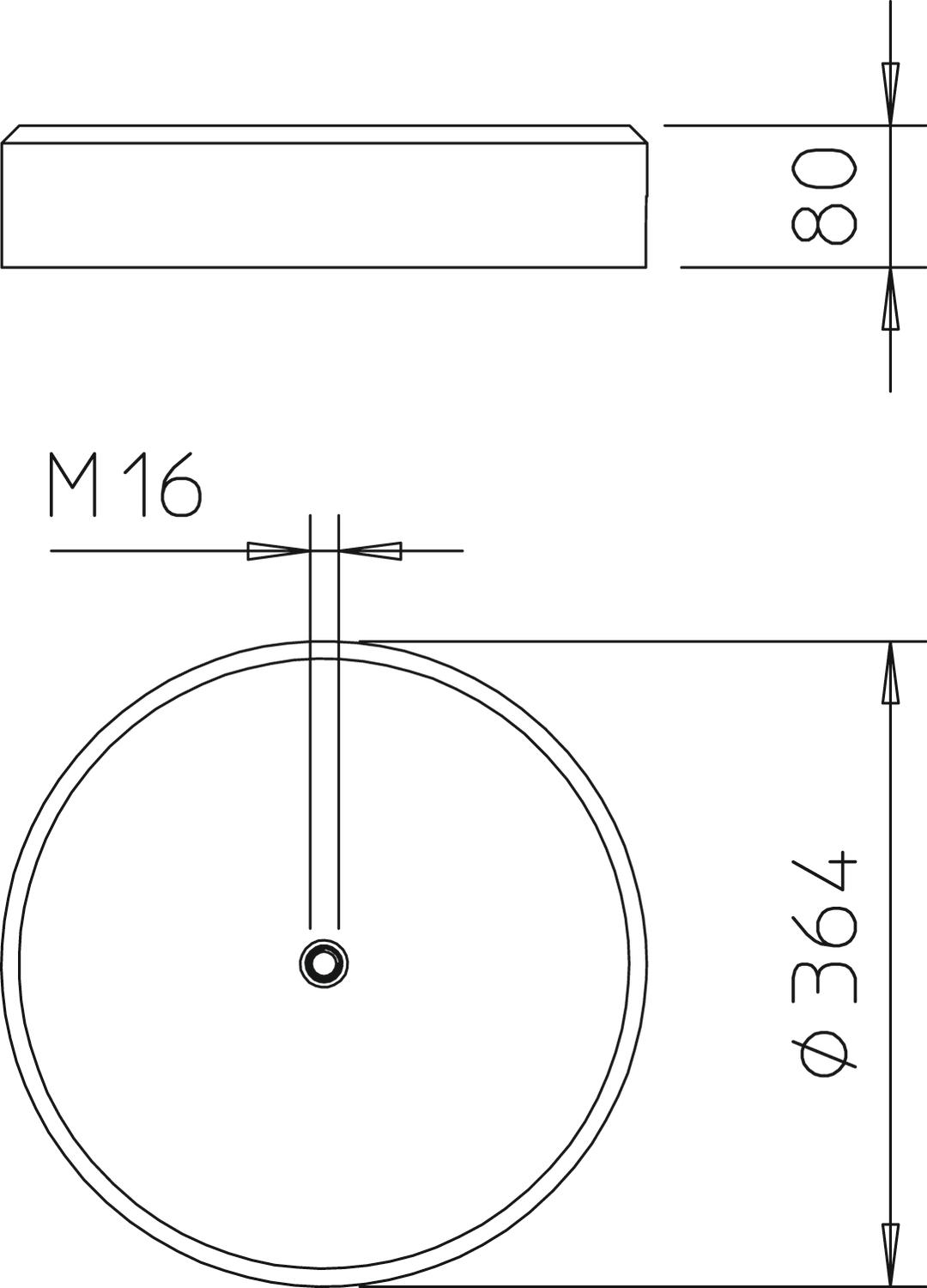

Air-termination rod holder Thread CO2 Footprint (GWP) Cradle-to-Gate 3,3656 kg CO2e / 1 Piece Diameter 364 mm Dimension M16 Material Concrete Nominal size Ø 364 mm Thread M16 Version for Base Weight 16 kg - All types
- Downloads
-
Data sheet 101 B2-16 M16 / 5402958 , 0.22MB , pdfEU declaration of conformity 101 B2-16 M16 / 5402958 , 0.06MB , pdf
