Clamping angle KWH FT 5 | 5.7
morepic-1 morepic-2 morepic-3 video-1

Clamping angle KWH FT

Item no. 6355021 | EAN 4012196194476

5.7 kN
Product description
Product description

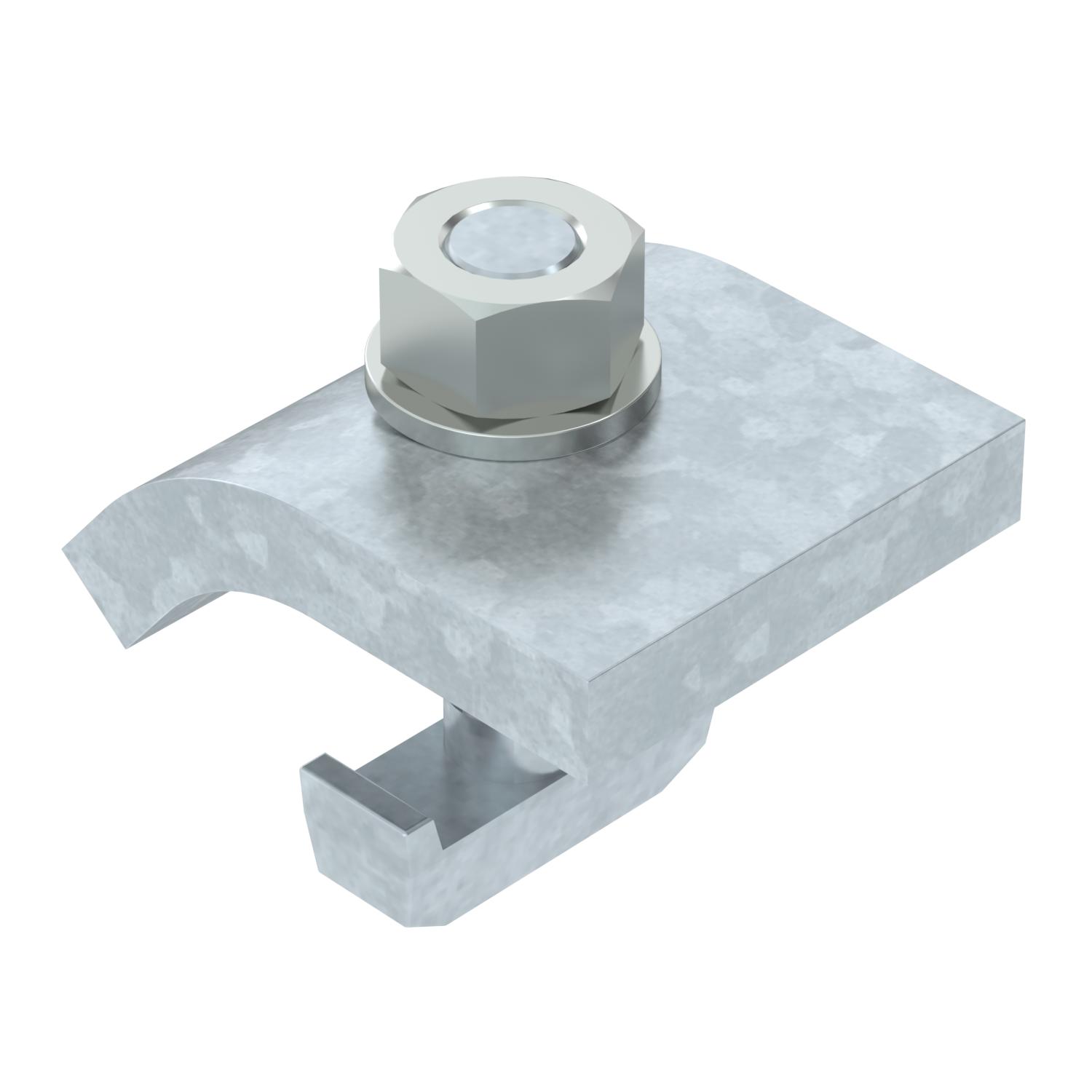

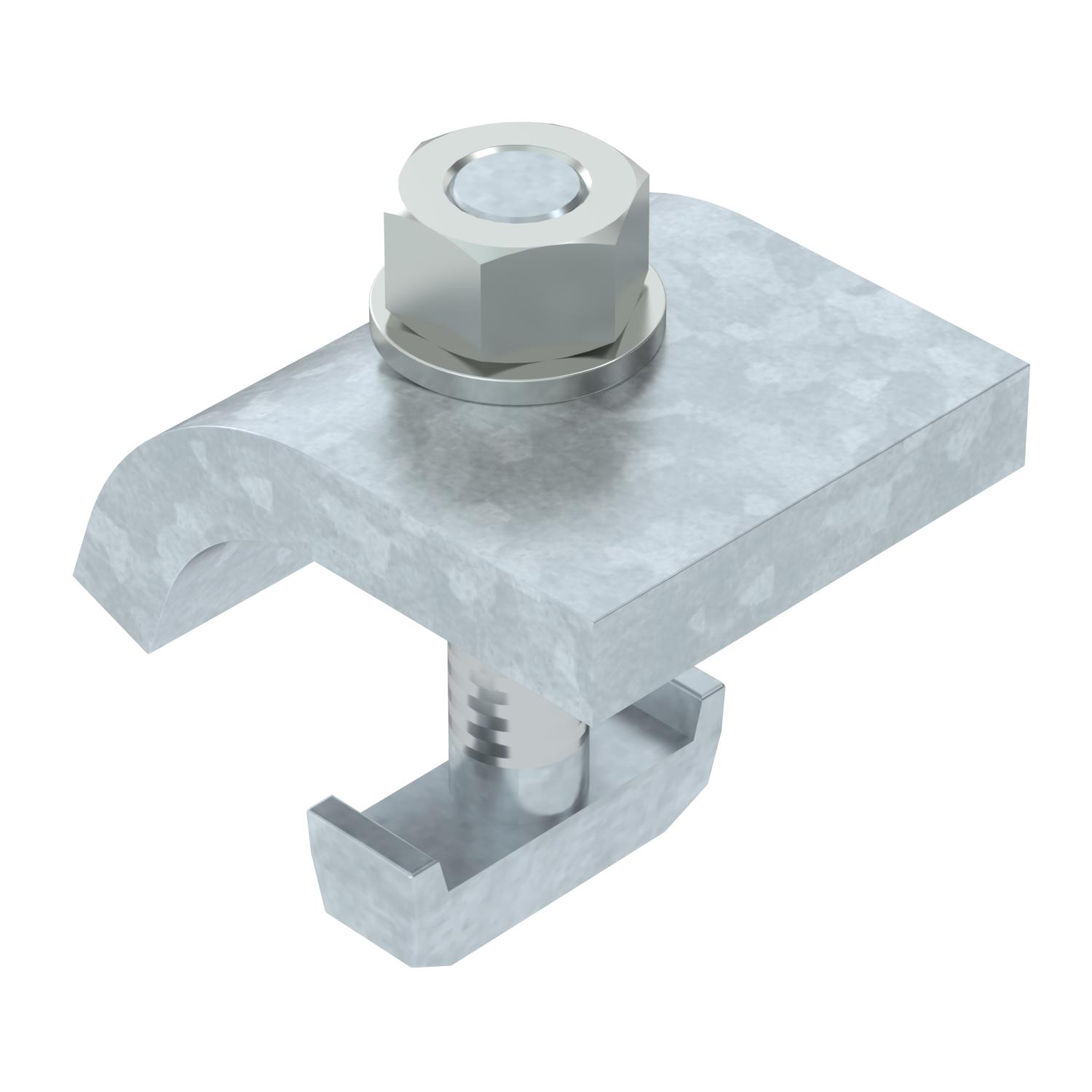

Clamping angle, with hook-head bolt, type KWH, for fastening in the mounting rail, type MS5030.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
Technical data

Technical data

Bolt M12 x 40
CO2 Footprint (GWP) Cradle-to-Gate 1,4357 kg CO2e / 2 Piece
Colour zinc

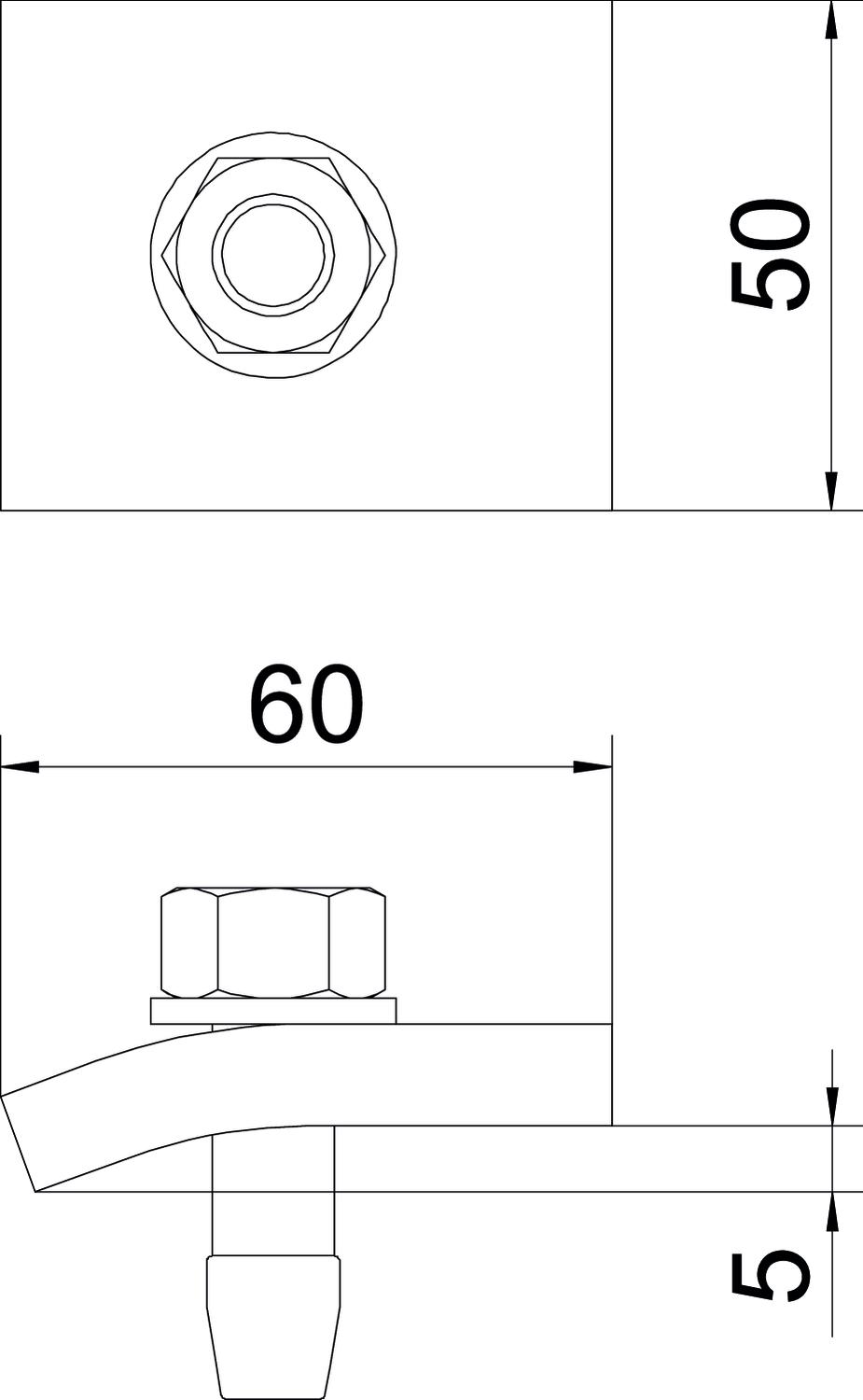

Dimension 60x50
F in kN 5,7 kN
Height 5 mm
Material Steel
Surface Hot-dip galvanised
Thread metric 12
All types

All types

Types Height F in kN Item no.
KWH 5 FT 5 mm 5.7 kN 6355021
KWH 10 FT 10 mm 5.7 kN 6355048
KWH 15 FT 15 mm 5.7 kN 6355056
KWH 20 FT 20 mm 5.7 kN 6355064
KWH 25 FT 25 mm 5.7 kN 6355072
