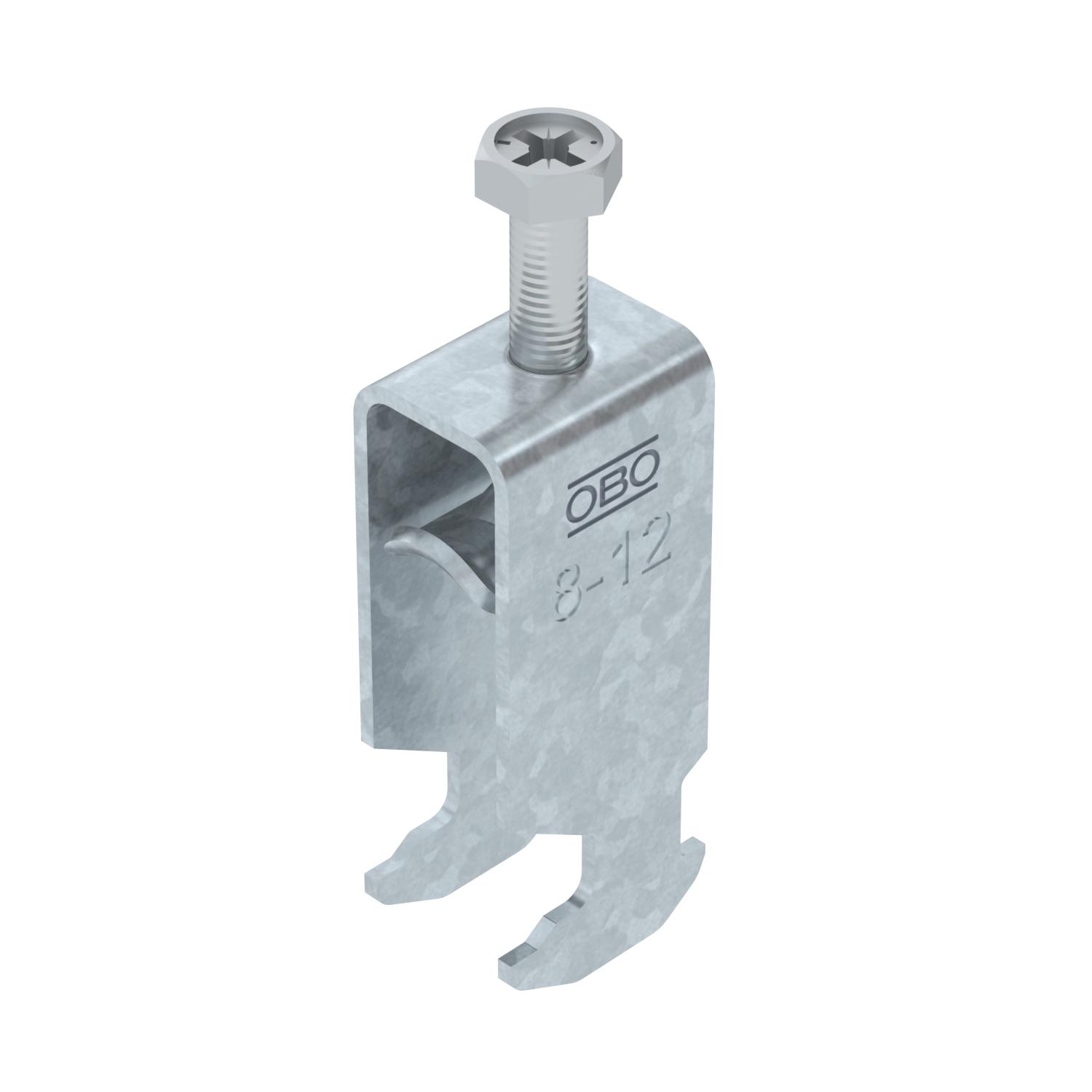

Clamp clip 2056 H-foot 2-fold, metal pressure sleeve, FT

Item no. 1186003 | EAN 4012196848539

Product description
Product description
Clamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 2 single cables on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16–17 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
  • Function maintenance class E30
  • Function maintenance class E60
  • Function maintenance class E90
Technical data

Technical data

Clamping range D, max. 12 mm
Clamping range D, min. 8 mm
CO2 Footprint (GWP) Cradle-to-Gate 0,1081 kg CO₂e / 1 Piece

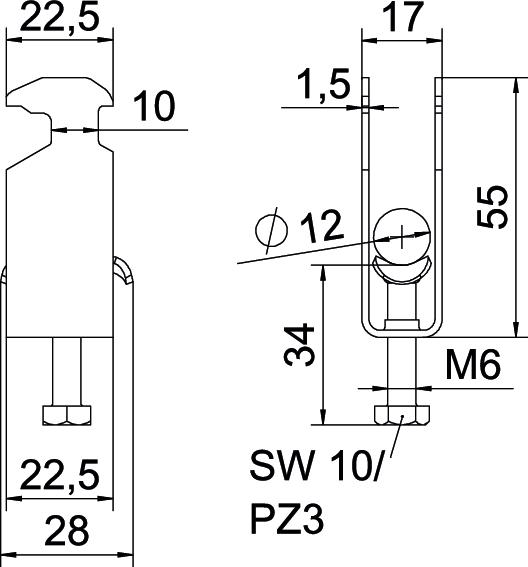

Dimension 08-12mm
Dimension A 22,5 mm
Dimension B 17 mm
Dimension C 28 mm
Dimension G (mm) M6
Dimension H 55 mm
Dimension L 34 mm
Dimension t 1,5 mm
For pipe diameter, max. 12 mm
For pipe diameter, min. 8 mm
for rail with slot width (with interval), max. 17 mm
for rail with slot width (with interval), min. 16 mm
Halogen-free yes
Height 55 mm
Length 22,5 mm
Length of external dimensions 28 mm
Maintain electrical functions yes
Material Steel
Material addition Steel
Material of trough Steel
Max. Tightening torque 3 Nm
Mounting type Profile rail
Number of cables/pipes 2
Plate thickness 1,5 mm
Slot width 10 mm
Surface Hot-dip galvanised
Surface addition hot galvanised
Thread M6
Width 17 mm
With counter-trough no
With metal trough yes
With plastic trough no
All types

All types

Types Clamping range D, min. Clamping range D, max. Max. Tightening torque Item no.
BS-H2-M-12 FT 8 mm 12 mm 3 Nm 1186003
BS-H2-M-16 FT 12 mm 16 mm 3 Nm 1186010
BS-H2-M-22 FT 16 mm 22 mm 3 Nm 1186017
BS-H2-M-28 FT 22 mm 28 mm 3 Nm 1186023
BS-H2-M-34 FT 28 mm 34 mm 3 Nm 1186030
BS-H2-M-40 FT 34 mm 40 mm 3 Nm 1186037
BS-H2-M-46 FT 40 mm 46 mm 5 Nm 1186043
BS-H2-M-52 FT 46 mm 52 mm 5 Nm 1186050
BS-H2-M-58 FT 52 mm 58 mm 5 Nm 1186057
BS-H2-M-64 FT 58 mm 64 mm 5 Nm 1186063
