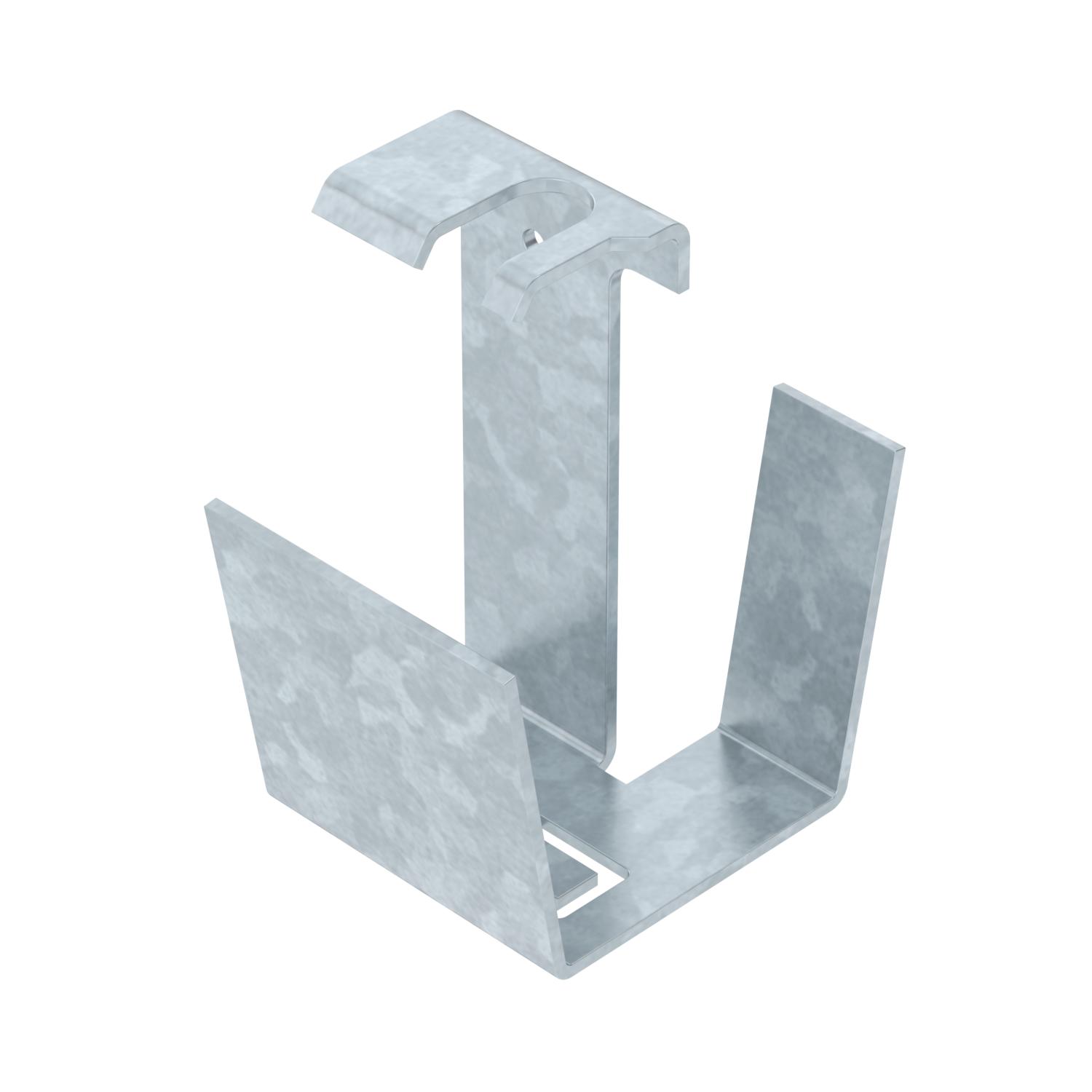

Centre suspension for luminaire support tray, FT
Item no. 6358812 | EAN 4012195671299
- Product description
-
Product descriptionCentral hanger for luminaire support tray, type LTR, for threaded rod and chain suspension.
-
- Technical data
-
Technical data

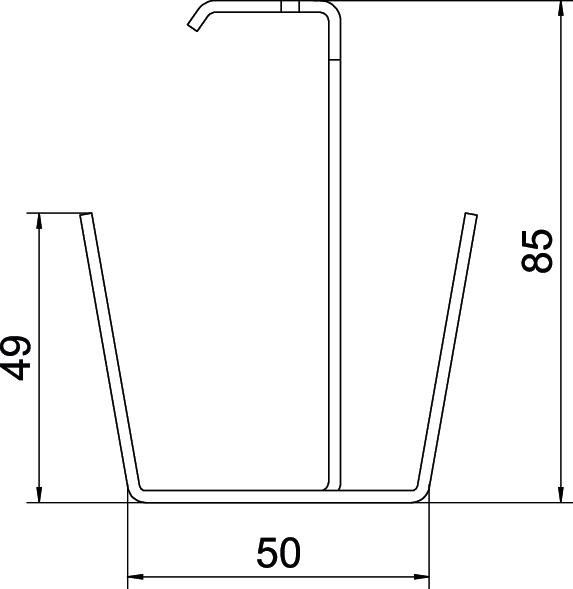

Colour zinc Dimension 50x70x85 Dimension b 75 mm F in kN 0,8 kN for width max. 75 mm for width min. 75 Material Steel Material thickness 2 mm Suitable for metric threaded rod 10 Surface Hot-dip galvanised Width 75 mm - All types
- Downloads
-
Data sheet MAH LTR FT / 6358812 , 0.15MB , pdfEU declaration of conformity MAH LTR FT / 6358812 , 0.11MB , pdfREACH Declaration of conformity MAH LTR FT / 6358812 , 0.12MB , pdfRoHS Declaration of conformity MAH LTR FT / 6358812 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions, luminaire support systems , 0.04MB , pdf
