Centre suspension for cable trays with rolled side rail FS

Item no. / Types

Length	40 mm

Width

Hole diameter	8.5 mm

Dimension B

Colour	zinc

Product description

Product description

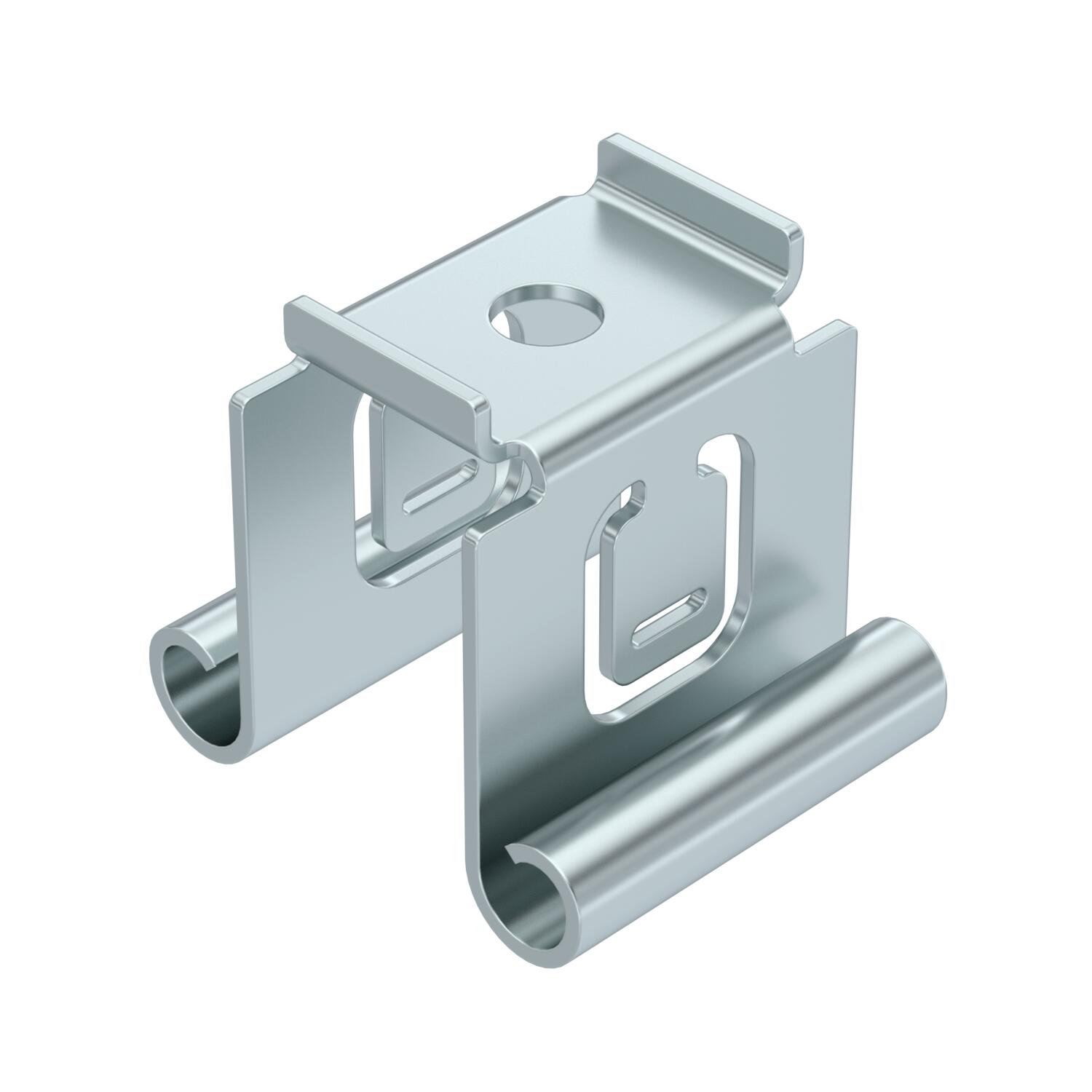

Centre suspension for cable trays

Technical data

Adjustable	no
CO2 Footprint (GWP) Cradle-to-Gate	0,1471 kg CO₂e / 1 Piece
Colour	zinc

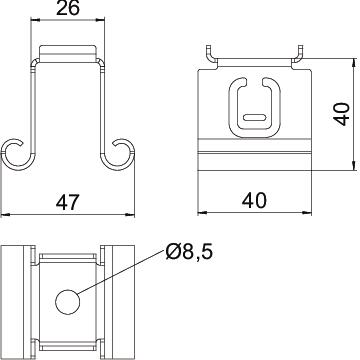

Dimension	B50mm
Dimension B	47 mm
Dimension B1	26 mm
for width max.	50 mm
for width min.	50
Height	39,5 mm

Hole diameter	8,5 mm
Length	40 mm
Maintain electrical functions	no
Material	Steel
Suitable for metric threaded rod	8
Surface	Strip galvanized
Version for	Suspended
Width	50 mm

All types

All types

Types	Length	Width	Hole diameter	Dimension B	Colour	Item no.
MAH 050 FS	40 mm	50 mm	8.5 mm	47 mm	zinc	6358500
MAH 075 FS	40 mm	75 mm	8.5 mm	72 mm	zinc	6358510
MAH 100 FS	40 mm	100 mm	8.5 mm	97 mm	zinc	6358527
MAH 150 FS	40 mm	150 mm	8.5 mm	147 mm	zinc	6358535
MAH 200 FS	40 mm	200 mm	8.5 mm	197 mm	zinc	6358543
