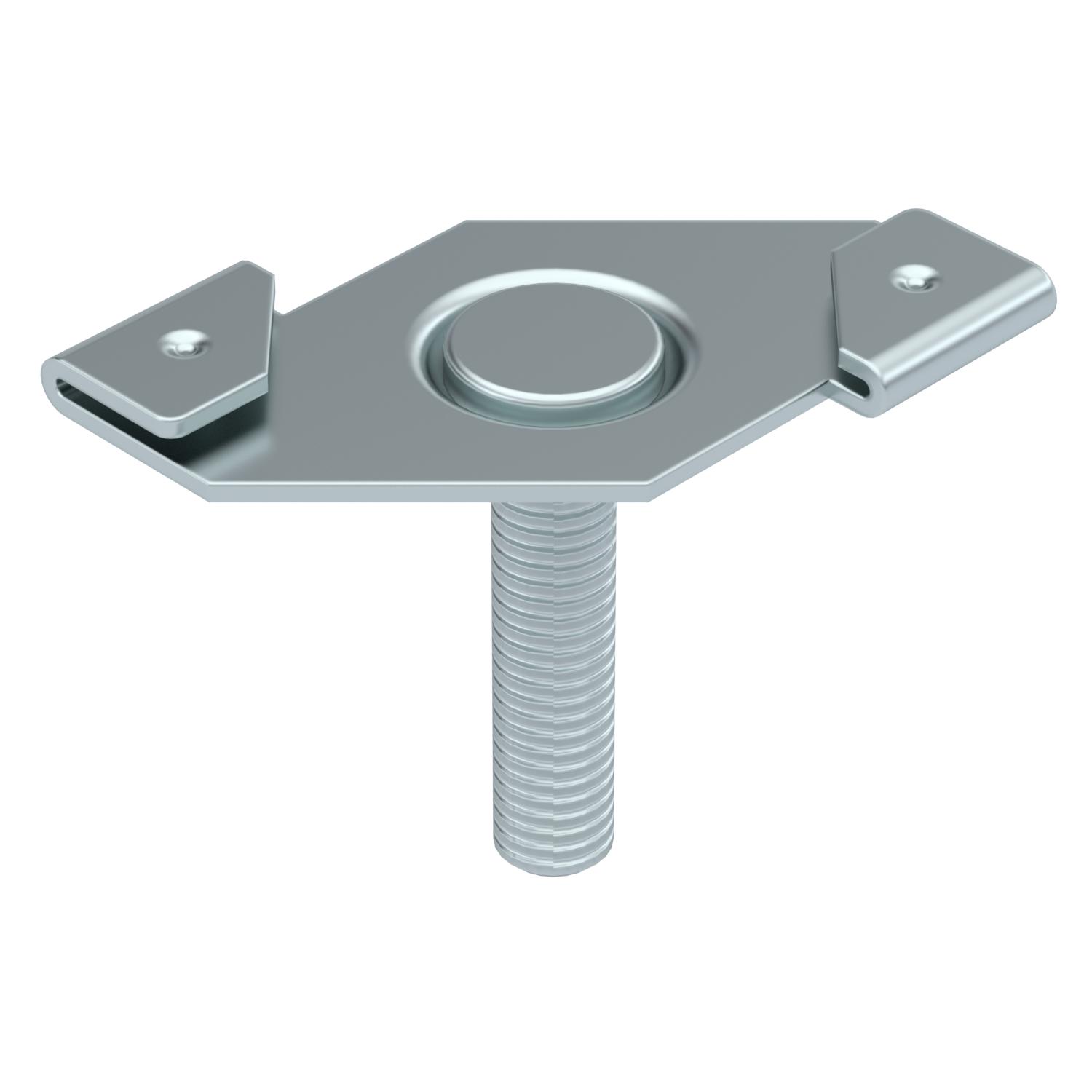

Ceiling profile clamp, with threaded bolt
Item no. 1488605 | EAN 4012197380663
- Product description
-
Product descriptionCeiling profile clamp with threaded bolt for individual mounting solutions on suspended ceilings. Suitable for support profiles with a width of 25 mm, fastening by clamping
-
- Technical data
-
Technical data

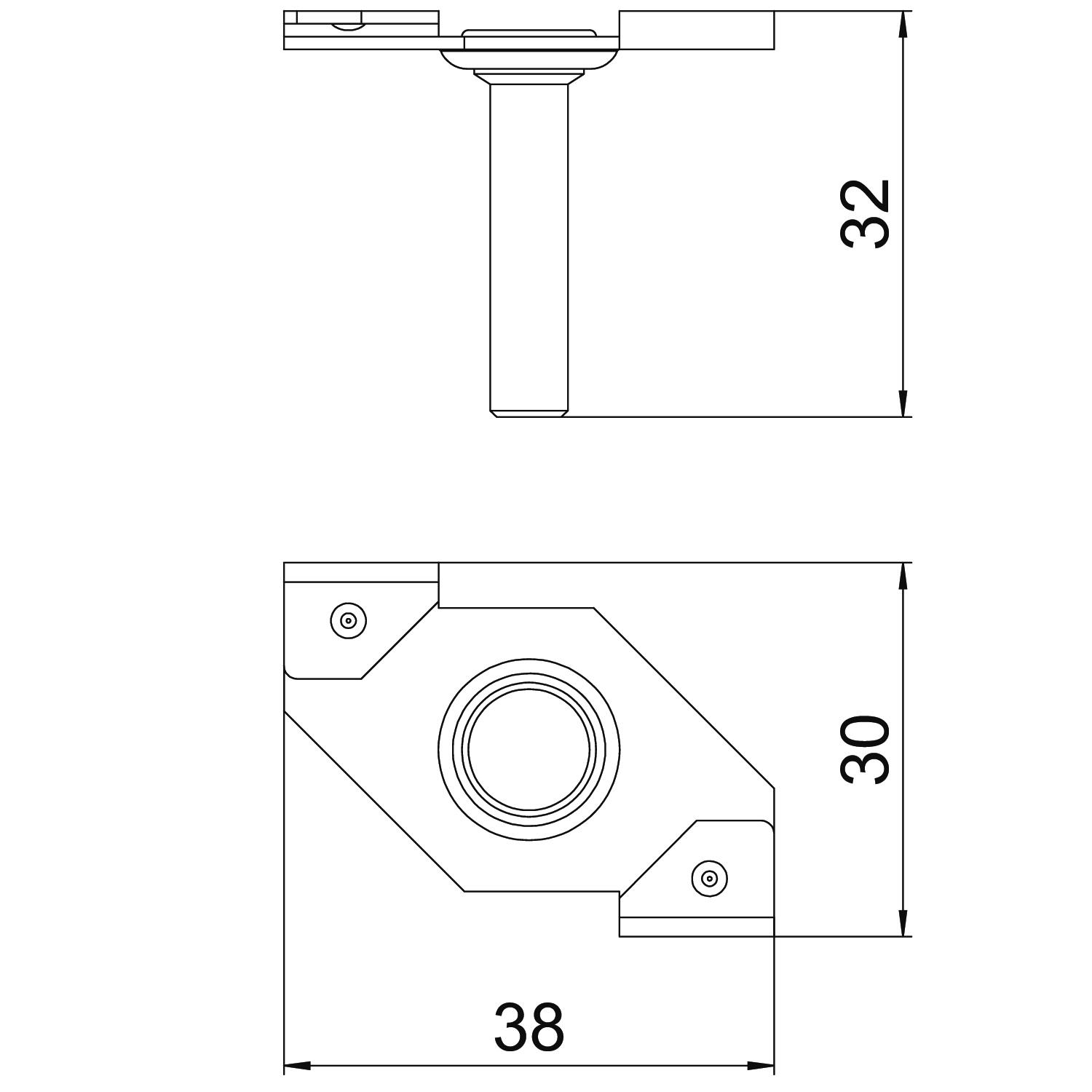

Breaking load 0,22 kN Connection type/component Thread Dimension M6x25mm Dimension H 32 mm Fastening type Clamp Flange thickness F max. 1,5 mm Flange thickness F min. 1 mm Height 32 mm Hinge, adjustable no Hinged no Length 38 mm Material Steel Surface Zinc slat Thread M6x25 Thread metric 6 Width 30 mm - All types
- Downloads
-
Data sheet SPC M6x25 / 1488605 , 0.16MB , pdfEU declaration of conformity SPC M6x25 / 1488605 , 0.10MB , pdfUK Declaration of Conformity SPC M6x25 / 1488605 , 0.09MB , pdf
